Aeromotive 12650 10-Micron Microglass Fuel Filter Element for 12340 and 12350 Housings

Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 60-sq. inches of element surface area supports high flow while providing good service life. Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop. Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline. Supports up to 1,400 Flywheel HP Forced Induction on E85. Ideal for gasoline and ethanol burning EFI engines with small to medium Aeromotive fuel pumps, from the Phantom 200 through the Eliminator pump. Popular for demanding gasoline and ethanol/methanol, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps. Replacement Element, 10-m Microglass, for 12340/12350 Filter Assembly, Fits All 2" OD Filter Housings, For Gas and Alcohol Fuels. Replacement Element

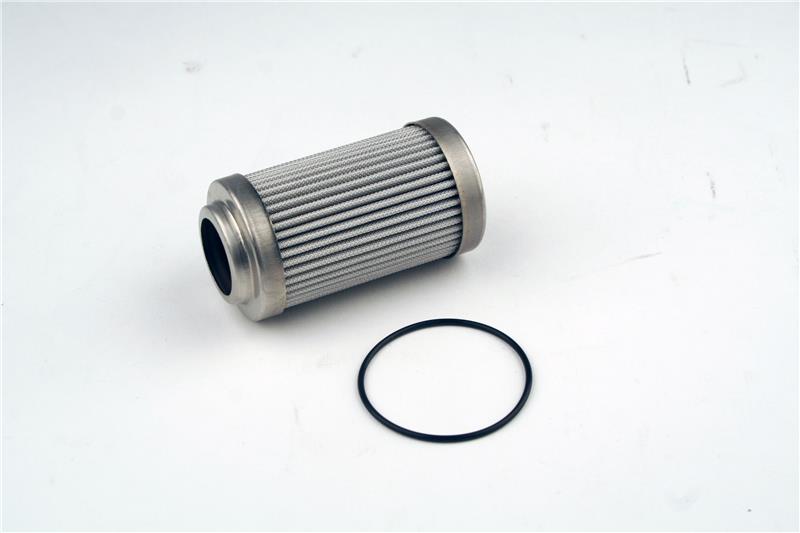

The Aeromotive 12650 is a replacement 10-micron microglass fuel filter element designed for Aeromotive 12340 and 12350 filter assemblies. It fits Aeromotive fuel filter housings with a 2-inch outside diameter and is engineered for demanding gasoline and alcohol-fuel applications. The element is suitable for pump gas, racing fuel, diesel, jet fuel, aviation gasoline, ethanol, and methanol when used with a compatible filter assembly.

With more than 60 square inches of filtration surface area, the Aeromotive 12650 supports high fuel flow while helping provide dependable service life. It offers flow capacity up to 250 gallons per hour, or 4.17 gallons per minute, with less than 1 PSI of pressure drop. The element is well suited to electronic fuel injection systems using small to medium Aeromotive pumps, including applications ranging from the Phantom 200 through the Eliminator pump.

For gasoline applications, this replacement element supports forced-induction combinations producing up to 2,000 flywheel horsepower. In E85 forced-induction applications, it supports up to 1,400 flywheel horsepower. It is also a practical choice for demanding carbureted gasoline, ethanol, and methanol systems using Aeromotive HO-Series, SS-Series, or A2000 fuel pumps. Replace the element as part of routine fuel-system maintenance to help preserve filtration performance and fuel delivery.

Designed specifically as a replacement component, the Aeromotive 12650 helps restore the performance of compatible Aeromotive filter assemblies without replacing the complete housing. Verify filter housing and fuel compatibility before installation. This product is supplied as one replacement filter element.

Features:

• 10-Micron Microglass Filtration: Captures fine fuel-system contaminants while supporting high-flow performance.
• High Flow Capacity: Supports flow rates up to 250 gallons per hour with less than 1 PSI of pressure drop.
• Broad Fuel Compatibility: Approved for gasoline, racing fuel, diesel, jet fuel, aviation gasoline, ethanol, and methanol applications.
• High-Performance Application Support: Suitable for forced-induction gasoline systems up to 2,000 flywheel horsepower and E85 systems up to 1,400 flywheel horsepower.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
