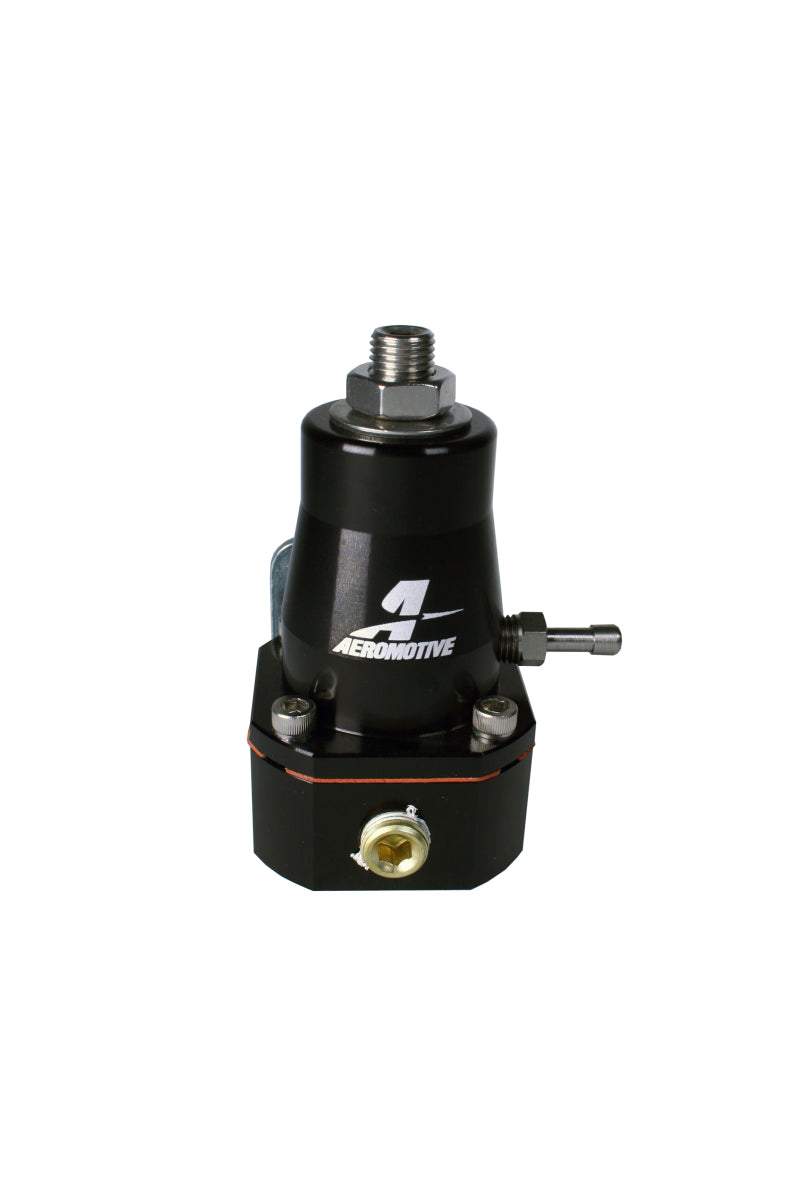

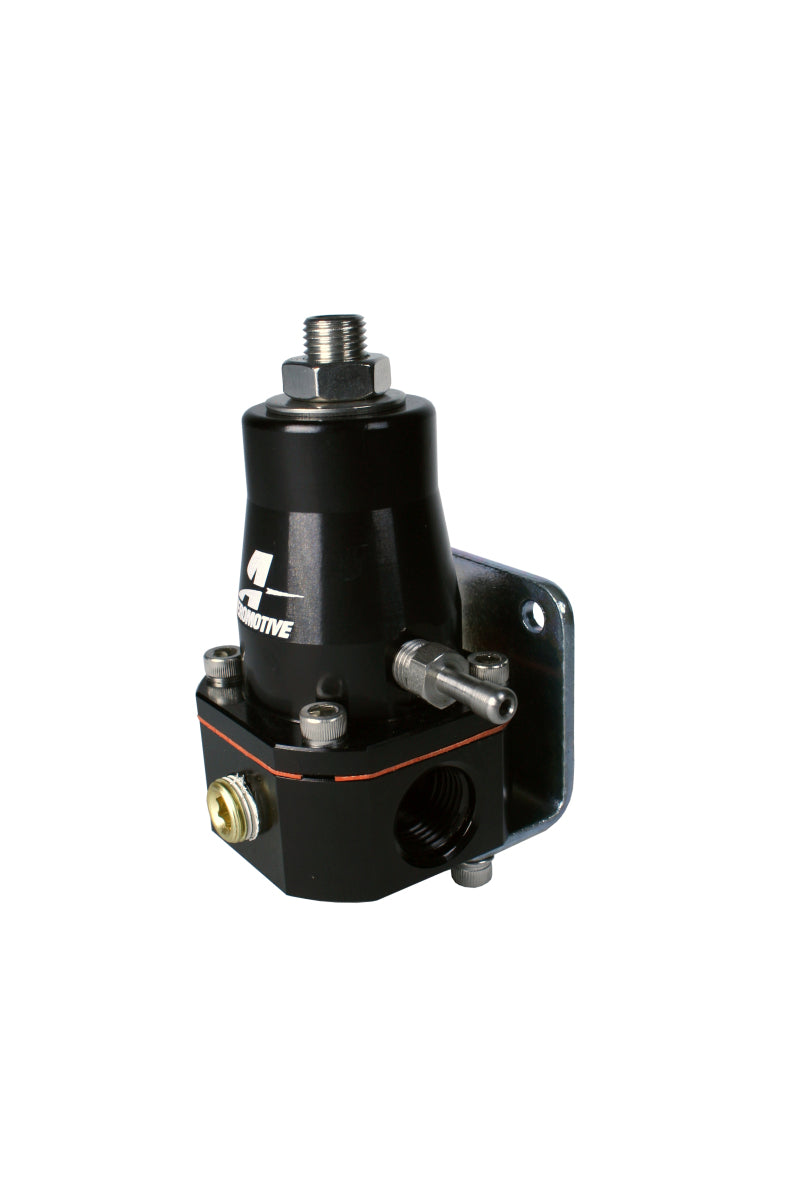

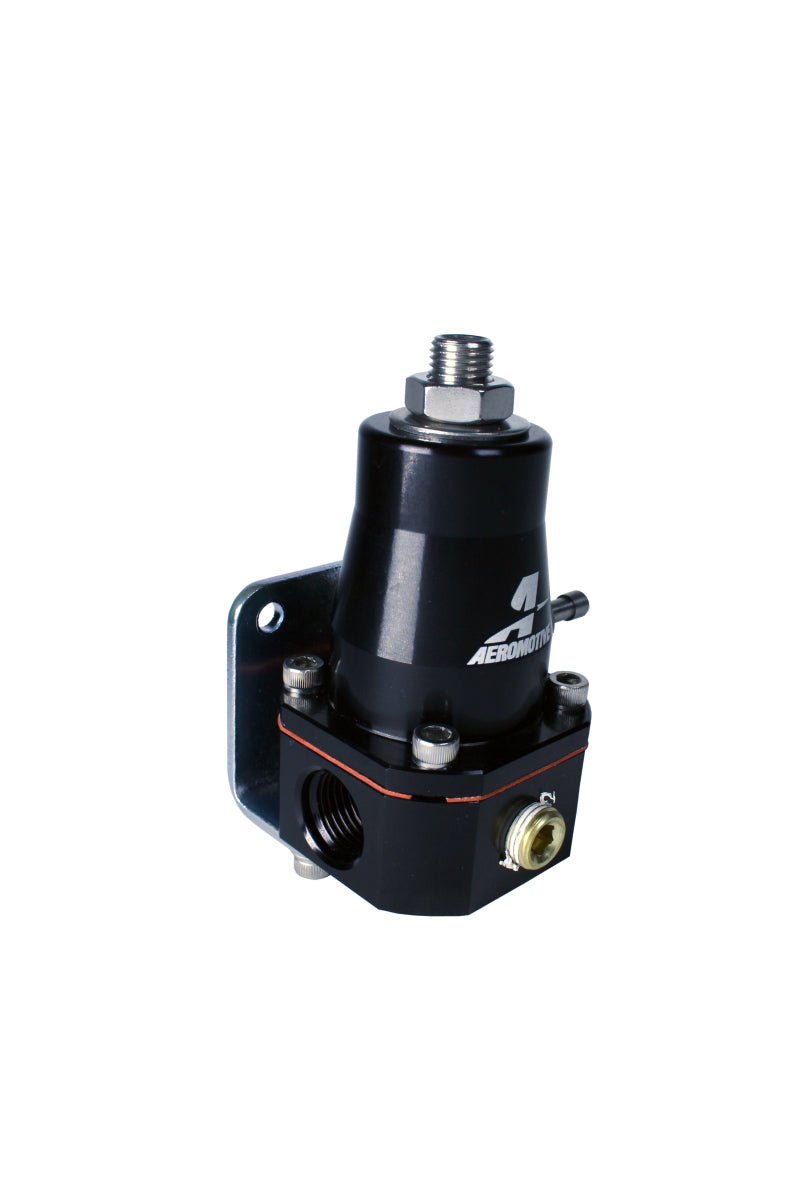

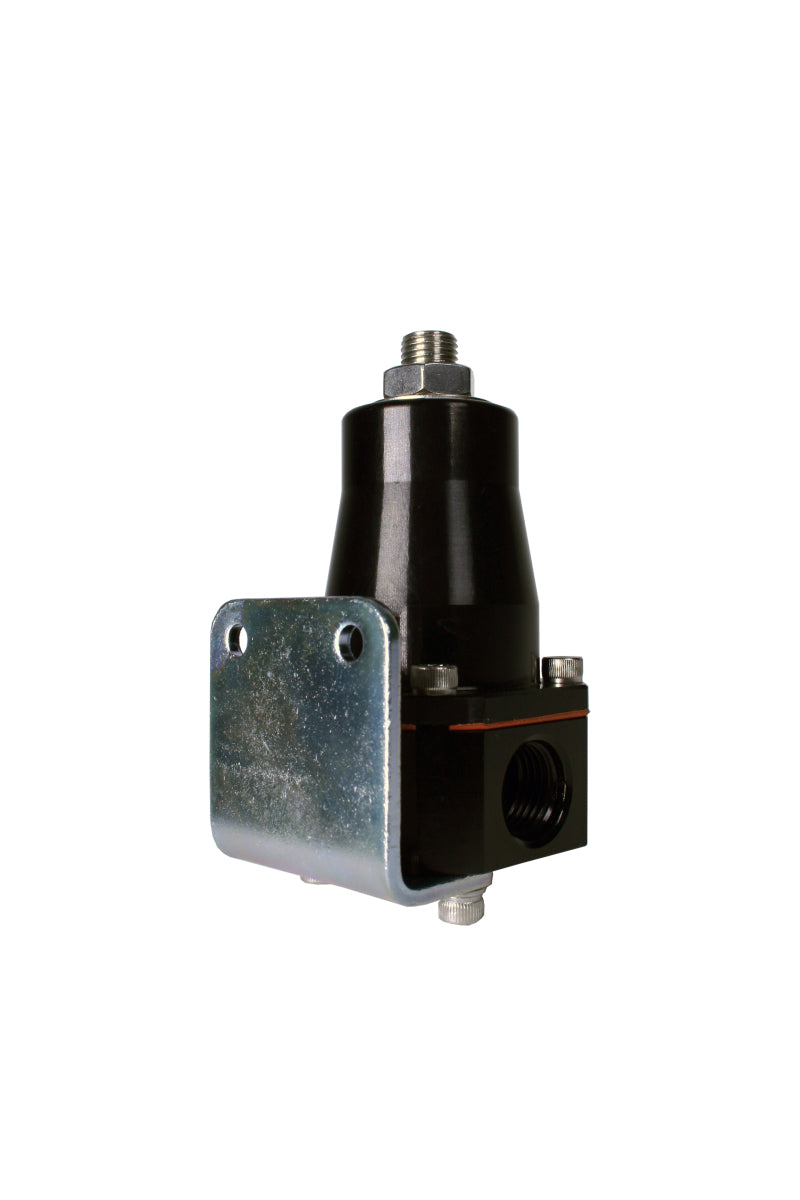

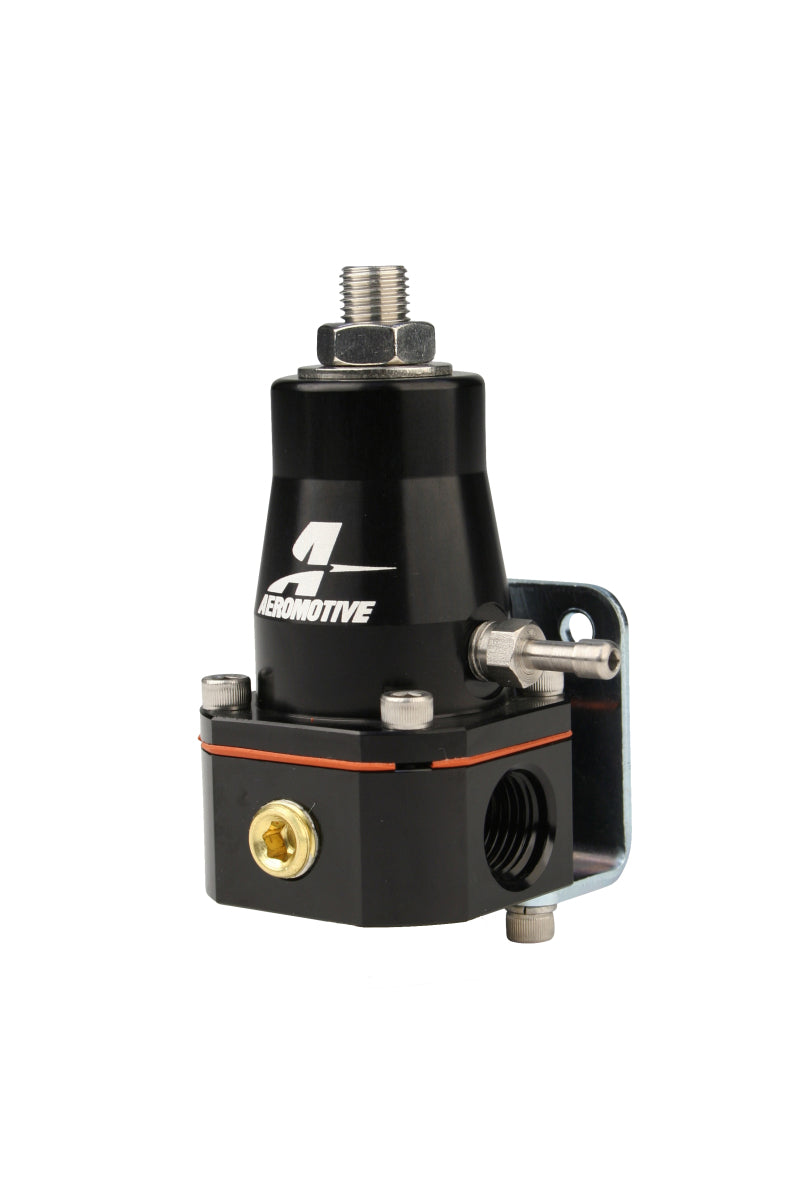

Aeromotive 13136 Adjustable Billet EFI Bypass Fuel Pressure Regulator, Black, Dual -6 Inlets and -6 Return

This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13136 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium. Base pressure adjustable from 40-75 psi. Fuel pressure rises on a 1:1 ratio with boost. Provides (2) ORB-06 inlet/outlet ports and (1) ORB-06 return port. 1/8? NPT gauge port. Bright Dip Black Anodized Finish. Vacuum boost port. CNC-Machined 6061 T6 billet aluminum construction. Regulator, Billet, EFI, 2x -6 inlet & -6 return, (Black Anodized Version of 13129). Billet EFI Black Regulator, (2) -06 inlet & (1) -06 return

The Aeromotive 13136 Billet EFI Bypass Fuel Pressure Regulator provides precise fuel pressure control for high-performance electronic fuel injection systems. Designed to support applications up to 1,000 horsepower, this compact and lightweight regulator is well suited for high-flow EFI fuel pumps, demanding street vehicles, and installations where space and weight are important considerations. Its black anodized finish provides a durable, professional appearance.

Base fuel pressure is adjustable from 40 to 75 psi, while the regulator’s 1:1 boost-referenced design automatically increases fuel pressure in proportion to boost pressure. Two ORB-06 inlet ports and one ORB-06 return port support flexible fuel-system routing. A vacuum/boost reference port and 1/8-inch NPT gauge port allow convenient pressure monitoring and control. The CNC-machined 6061-T6 billet aluminum construction is engineered for durability and reliable performance in demanding EFI applications.

The Aeromotive 13136 is the black anodized version of the Aeromotive 13129 regulator and is intended for EFI fuel systems only. It is not approved for carbureted applications. Verify fuel-system compatibility, pressure requirements, fittings, and mounting clearance before installation. Vehicle-specific fitment information was not provided; confirm application requirements with the vehicle and fuel-system manufacturer.

Key Product Specifications and Technical Data

• Brand: Aeromotive
• Part Number: 13136
• Regulator Type: Adjustable EFI bypass
• Horsepower Support: Up to 1,000 horsepower
• Adjustable Base Pressure: 40–75 psi
• Boost Reference: 1:1 fuel-pressure rise
• Port Configuration: Two ORB-06 inlets, one ORB-06 return, and one 1/8-inch NPT gauge port
• Construction and Finish: CNC-machined 6061-T6 billet aluminum with black anodized finish

What's Included

One Aeromotive 13136 adjustable billet EFI bypass fuel pressure regulator. Fuel fittings, gauge, mounting hardware, and installation accessories are not included unless supplied separately by the seller.

Features:

• Supports EFI applications up to 1,000 horsepower for high-flow fuel systems and high-performance street vehicles.
• Adjustable 40–75 psi base fuel pressure allows tuning for a wide range of EFI requirements.
• 1:1 boost-referenced pressure rise maintains appropriate fuel pressure under boost.
• Compact CNC-machined 6061-T6 billet aluminum construction with a durable black anodized finish.
