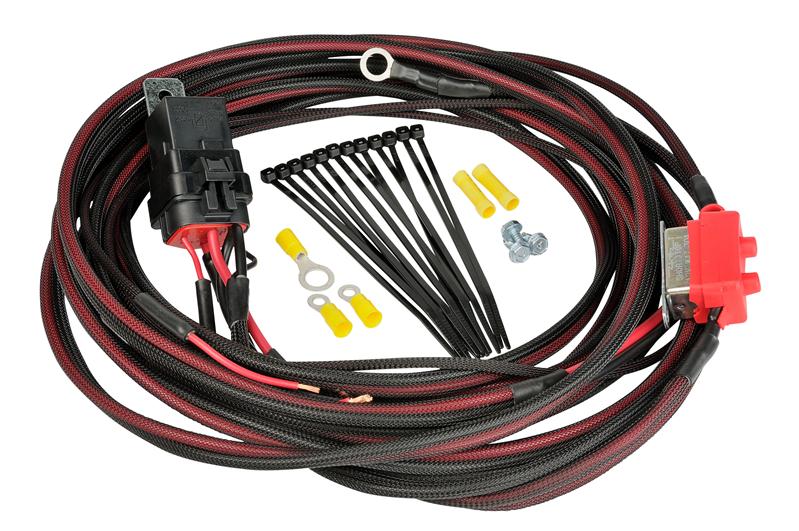

Aeromotive 16307 Deluxe Fuel Pump Wiring Kit

Simply the best built, best looking, hardest working, most affordable fuel pump wiring harness available. Parts included in kit: 30 Amp 12 VDC Automotive Relay, 30 Amp 12 VDC Circuit Breaker,20? overall length for full size vehicles, 10-gauge power and ground wires, 16-gauge trigger wire, self-tapping mounting screws, wire ties. Tools required for installation: electrical terminal crimping tool, 5/16? nut driver, electric drill. Wiring Kit, Fuel Pump, Deluxe. Wiring Kit; 30 Amp 12 VDC Relay, 30 Amp 12 VDC Breaker, Insulated Butt Connector, Ring Connector for #10 Stud, Ring Connector for 3/8" Stud, 8ft 10ga. Power/Ground Wire, 4ft 10ga. Battery Wire, 10ft 16ga. Trigger Wire, 1ft 10ga. Ground Wire

The Aeromotive 16307 Deluxe Fuel Pump Wiring Kit provides a reliable, high-current electrical connection for automotive fuel pump installations. Designed for full-size vehicles, this preselected wiring package combines heavy-gauge power and ground wiring with a 30-amp automotive relay and circuit breaker to help support consistent fuel pump performance while protecting the circuit.

The kit includes an approximately 20-foot overall harness layout, an 8-foot 10-gauge power and ground wire assembly, a 4-foot 10-gauge battery wire, a 1-foot 10-gauge ground wire, and a 10-foot 16-gauge trigger wire. Included insulated terminals, ring connectors, mounting hardware, and wire ties help simplify installation and provide a secure, organized connection. The Aeromotive 16307 is intended for automotive applications and is not emissions-certified for carbureted applications.

Key Product Specifications & Technical Data

• Brand: Aeromotive
• Part Number: 16307
• Product Type: Deluxe fuel pump wiring kit
• Application: Automotive fuel pump electrical wiring
• Relay: 30-amp, 12-volt DC automotive relay
• Circuit Protection: 30-amp, 12-volt DC circuit breaker
• Power and Ground Wiring: 10-gauge automotive wire
• Trigger Wiring: 16-gauge automotive wire

What's Included in the Box

• 30-amp, 12-volt DC automotive relay
• 30-amp, 12-volt DC circuit breaker
• Insulated butt connector
• Ring connectors for No. 10 and 3/8-inch studs
• 8 feet of 10-gauge power and ground wire
• 4 feet of 10-gauge battery wire
• 1 foot of 10-gauge ground wire
• 10 feet of 16-gauge trigger wire
• Self-tapping mounting screws and wire ties

Installation requires an electrical terminal crimping tool, 5/16-inch nut driver, and electric drill. Verify the vehicle and fuel pump wiring requirements before installation.

Features:

• High-Current Fuel Pump Wiring: Provides a dedicated wiring solution for automotive fuel pump installations.
• 30-Amp Relay: Uses a 12-volt DC automotive relay to support dependable fuel pump control.
• Circuit Protection: Includes a 30-amp, 12-volt DC circuit breaker to help protect the fuel pump circuit.
• Heavy-Gauge Wiring: Includes 10-gauge power and ground wires with a 16-gauge trigger wire for practical automotive installation.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
