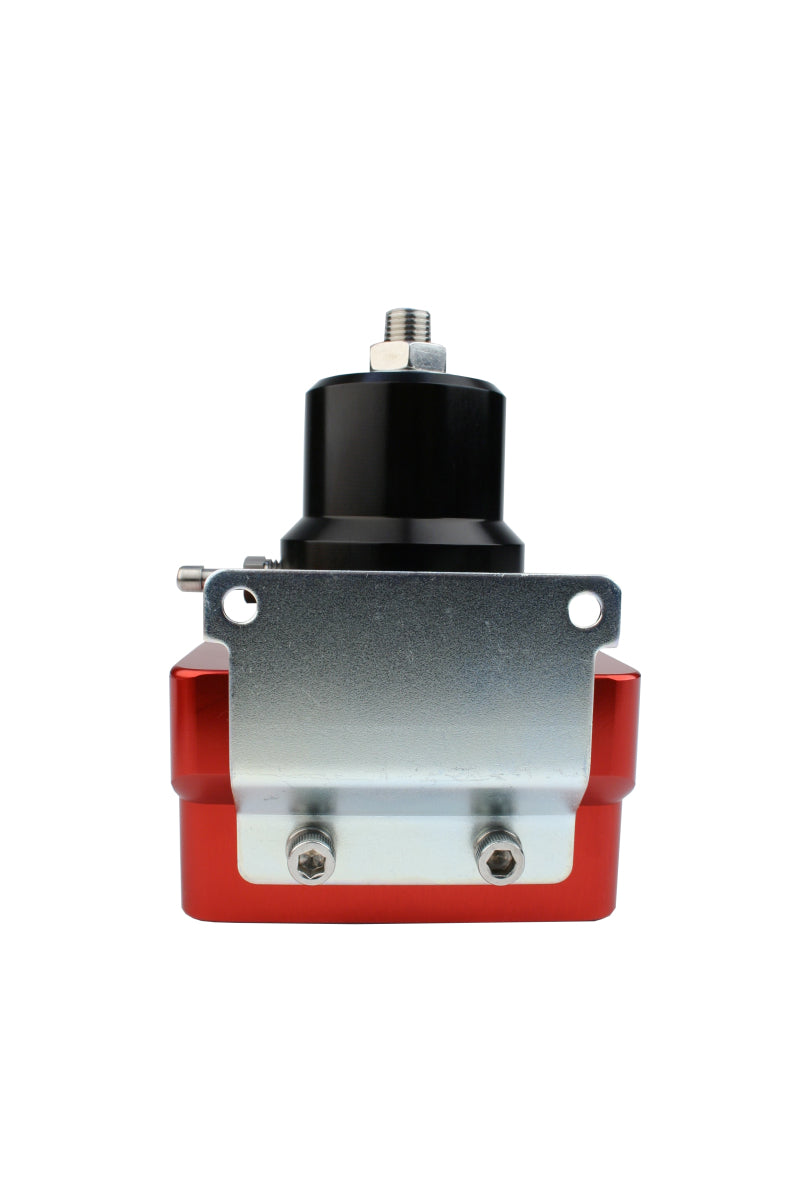

Aeromotive A2000 Carbureted Bypass Fuel Pressure Regulator, 4-Port, Part Number 13202

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump. Adjustable from 2-20 PSI. Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line.) Fuel pressure rises on a 1:1 ratio when referencing boost. ORB-10 inlet and return ports. P/N 13202 provides (4) ORB-08 outlet ports.?Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (P/N 11102), Eliminator (P/N 11104), or Belt Drive Fuel Pump (P/N 11105) are strongly recommended. A2000 Carbureted Bypass Regulator - 4-Port. 4-port fuel pressure regulator; adjustable from 2-20 PSI; multiple inlet and outlet ports of multiple sizes

The Aeromotive A2000 Carbureted Bypass Fuel Pressure Regulator is designed for naturally aspirated and carbureted blow-through fuel systems that require consistent pressure and high-volume fuel delivery. Part Number 13202 features a dynamic bypass design that helps maintain stable fuel pressure while supporting the demands of high-performance electric or mechanical fuel pumps. Its four-port configuration provides flexible plumbing options for custom fuel system layouts.

Fuel pressure is adjustable from 2 to 20 PSI, making the Aeromotive A2000 suitable for a broad range of carbureted applications. When connected to a boost reference source, the regulator increases fuel pressure at a 1:1 ratio as boost rises, helping maintain the proper pressure differential across the carburetor fuel inlet. The regulator uses ORB-10 inlet and return ports, while Part Number 13202 includes four ORB-08 outlet ports. An AN-10 return line is required for proper bypass operation.

The Aeromotive A2000 is compatible with high-volume electric and mechanical fuel pumps and can support EFI-capable fuel system components when properly matched to the application. For high-pressure, boost-referenced systems, Aeromotive recommends using a high-volume, high-pressure pump such as the Pro-Series, Eliminator, or Belt Drive Fuel Pump. This regulator is intended for automotive fuel system use and requires acknowledgment that it is not approved for all carbureted applications. Professional installation and correct fuel system sizing are recommended.

Features:

• Dynamic bypass design supports consistent fuel delivery and stable pressure in high-performance carbureted systems.
• Adjustable fuel pressure from 2 to 20 PSI accommodates naturally aspirated and blow-through applications.
• 1:1 boost reference increases fuel pressure as boost rises to help maintain fuel system balance.
• Four-port configuration with ORB-10 inlet and return ports and four ORB-08 outlet ports provides flexible plumbing options.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
