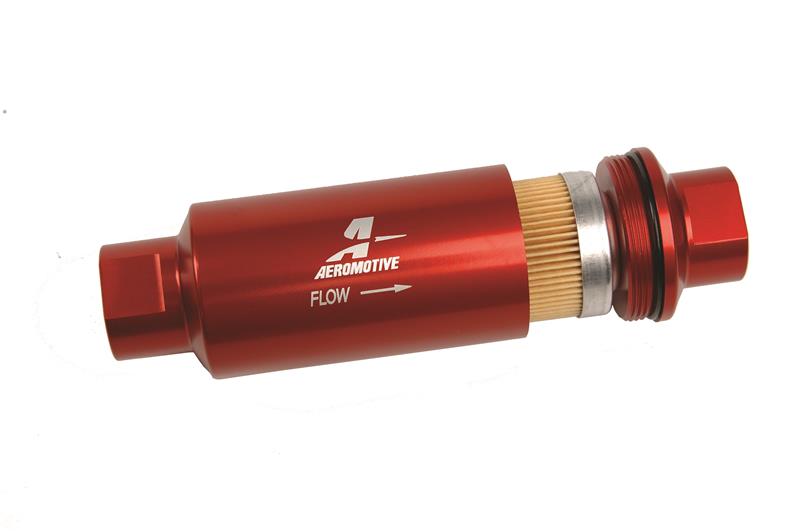

Aeromotive AER12301 In-Line Fuel Filter, 10-Micron Fabric Element, ORB-10 Port, Red Anodized

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High-flow, 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.? All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance. Filter, In-Line, 10-m Fabric Element, ORB-10 Port, Bright-Dip Red, 2" OD. In-line, high-flow fuel filter; red anodized; 10-micron fabric element; compact size: 5.5" long x 2" diameter.

The Aeromotive AER12301 in-line fuel filter provides high-flow fuel system protection for performance applications ranging from 200 to more than 3,000 horsepower. Its replaceable 10-micron fabric element helps capture contaminants while maintaining low restriction, supporting consistent fuel delivery and protecting pumps, injectors, and other critical fuel system components.

This compact filter flows up to 2,000 lb/hr with less than 1 PSI of pressure drop. ORB-10 ports allow adaptation to AN-10, AN-08, and AN-06 fuel lines with the appropriate fittings. An O-ring provides positive sealing in high-pressure applications, while the CNC-machined 6061-T6 aircraft aluminum body delivers durability and precise fitment. The bright-dip red anodized finish adds corrosion resistance and a clean appearance suitable for both competition and show-quality installations.

What's Included: One Aeromotive AER12301 in-line fuel filter with installed 10-micron fabric filter element.

Fitment: Designed for custom automotive fuel systems and high-performance applications. Verify fuel line size, port configuration, pressure requirements, and available installation space before installation. This product is not specified as CARB approved; consult applicable regulations before use on emissions-controlled vehicles.

Features:

• High-flow fuel filtration: Supports fuel system performance in applications from 200 to more than 3,000 horsepower.
• 10-micron fabric element: Captures fine contaminants while maintaining efficient fuel flow.
• High-flow capacity: Flows up to 2,000 lb/hr with less than 1 PSI of pressure drop.
• Durable construction: CNC-machined 6061-T6 aircraft aluminum body with a corrosion-resistant bright-dip red anodized finish.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
