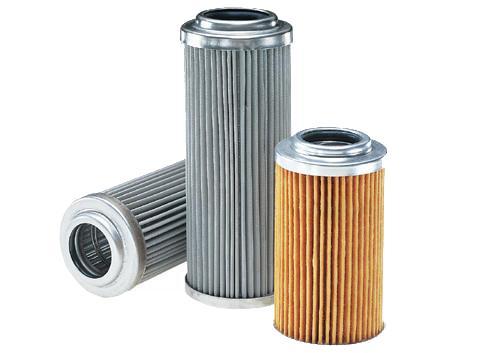

Aeromotive AER12601 Replacement 10 Micron Fuel Filter Element

Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Not recommended for alcohol fuels including ethanol and methanol. Over 60-sq. inches of element surface area supports high flow while providing good service life. Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop. Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline. Ideal for gasolin e, EFI engines with small to medium Aeromotive fuel pumps from the Phantom 200 through the Eliminator pump. Popular for demanding gasoline, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps. Replacement Element, 10-m fabric, for 12301/12306/12321 Filter Assembly, Fits All 2" OD Filter Housings. 10 micron replacement element

The Aeromotive AER12601 is a replacement 10-micron fabric fuel filter element designed for Aeromotive 12301, 12306, and 12321 filter assemblies. It fits Aeromotive fuel filter housings with a 2-inch outside diameter and provides reliable filtration for demanding gasoline fuel systems. With more than 60 square inches of filter surface area, this replacement element supports strong fuel flow while helping maintain dependable service life.

Rated for flow capacities up to 250 gallons per hour, or 4.17 gallons per minute, with less than 1 PSI of pressure drop, the Aeromotive AER12601 is suitable for high-performance applications supporting up to 2,000 flywheel horsepower with gasoline and forced-induction systems. It is an excellent choice for gasoline electronic fuel injection systems using small to medium Aeromotive fuel pumps, including applications from the Phantom 200 through the Eliminator pump.

This Aeromotive replacement element is also well suited to demanding gasoline carbureted applications using Aeromotive HO-Series, SS-Series, and A2000 fuel pumps. It is recommended for pump gasoline, racing gasoline, diesel fuel, jet fuel, and aviation gasoline. It is not recommended for alcohol-based fuels, including ethanol and methanol. The filter element is supplied as a replacement component for compatible Aeromotive filter assemblies and is not intended to replace the complete filter housing.

Key Product Specifications and Technical Data

• Brand: Aeromotive
• Part Number: AER12601
• Product Type: Replacement fuel filter element
• Filter Media: 10-micron fabric
• Maximum Flow Rate: 250 gallons per hour, or 4.17 gallons per minute
• Pressure Drop: Less than 1 PSI at rated flow
• Application: Gasoline fuel systems, including EFI and carbureted setups
• Compatible Assemblies: Aeromotive 12301, 12306, and 12321 filter assemblies with 2-inch outside diameter housings

What's Included

One Aeromotive AER12601 10-micron replacement fuel filter element.

Features:

• 10-Micron Filtration: Helps capture fine contaminants in compatible gasoline fuel systems.
• High-Flow Performance: Supports flow rates up to 250 gallons per hour with less than 1 PSI of pressure drop.
• Large Filter Surface Area: More than 60 square inches of element surface area promotes strong flow and useful service life.
• Broad Gasoline Application: Designed for Aeromotive EFI and carbureted systems using compatible fuel pumps, including high-performance and forced-induction applications.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
