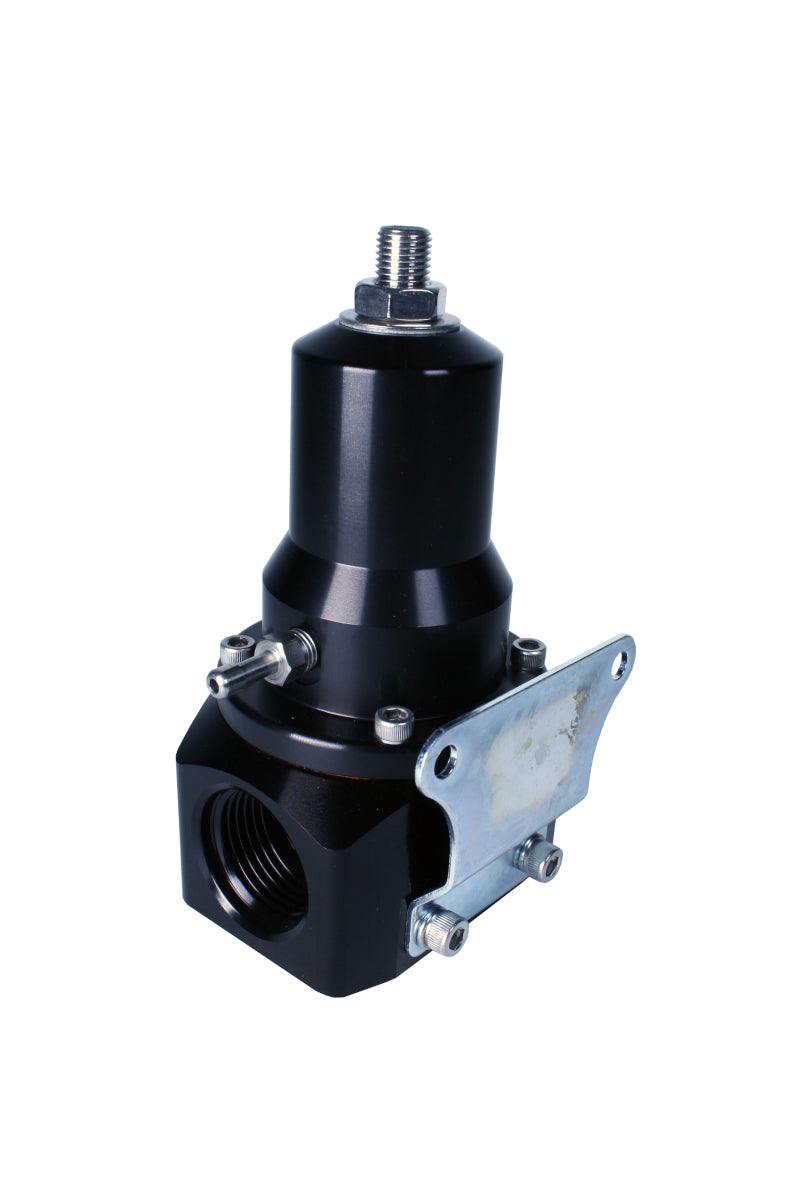

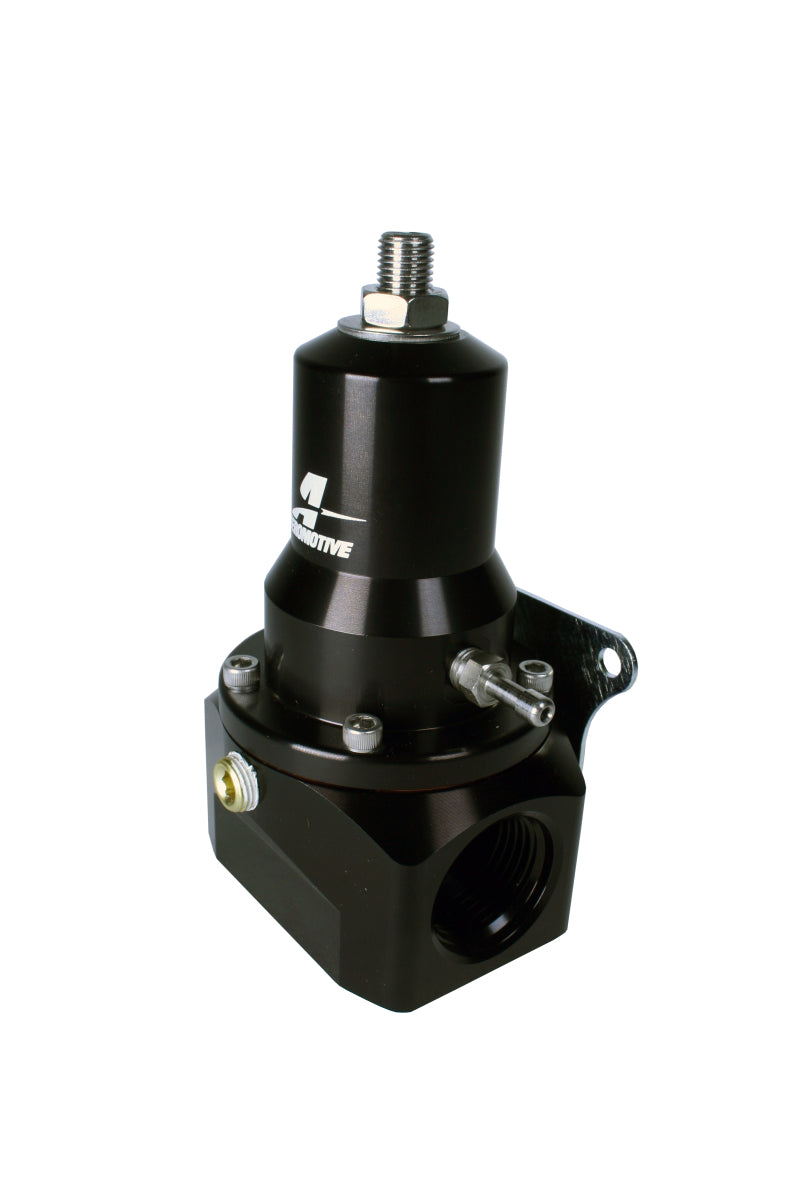

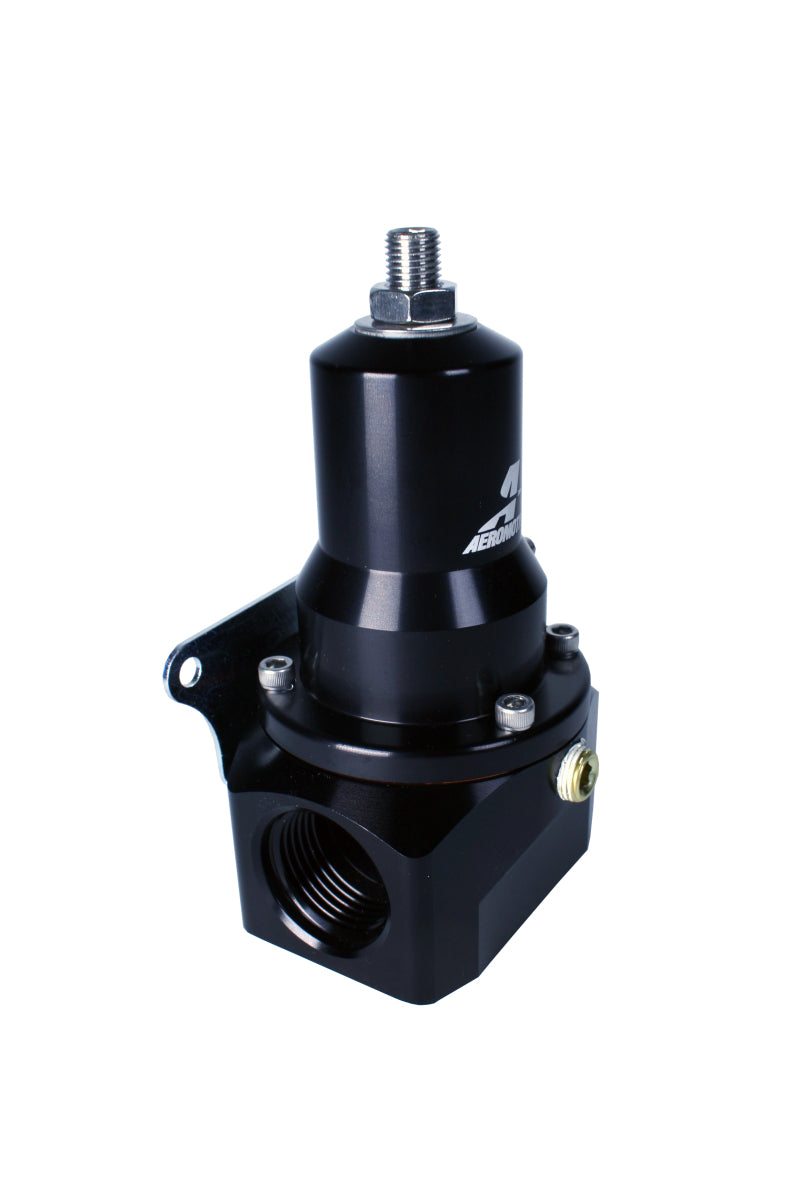

Aeromotive AER13137 Pro Mod EFI Gear Pump Fuel Pressure Regulator, 30-120 PSI, -12 Ports

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It?s designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI. Pro Mod EFI Gear Pump Regulator, 30-120 PSI, .500 Valve, (2) -12 inlets, (1) -12 return. Adjustable Regulator, 30-120 PSI, (2) -12 inlets, -12 return

The Aeromotive AER13137 Pro Mod EFI Gear Pump Regulator is an adjustable fuel pressure regulator designed for high-performance electronic fuel injection systems using belt-drive or hex-drive fuel pumps. Its compact two-port body features dual ORB-12 inlet ports and one ORB-12 return port, providing flexible fuel-system routing for demanding racing and performance applications.

A high-flow 0.500-inch valve and seat allow the regulator to support fuel pumps flowing from 7 to 32 gallons per minute. The installed standard spring supports a 30-75 PSI base fuel pressure range, while the included high-pressure spring expands adjustment capability to 75-120 PSI. The dual-spring design helps maintain accurate pressure control while keeping the regulator compact and lightweight.

The Aeromotive AER13137 supports both vacuum and boost reference at a 1:1 ratio with PSI, making it suitable for forced-induction EFI applications that require fuel pressure to track engine manifold pressure. Its dual inlet configuration and -12 return connection accommodate large-volume fuel systems. This regulator is intended for automotive performance use and is not approved for carbureted applications. Verify fuel-system compatibility, installation requirements, and applicable emissions regulations before use.

Product Specifications and Technical Data

• Brand: Aeromotive
• Part Number: AER13137
• Product Type: Adjustable EFI fuel pressure regulator
• Pressure Range: 30-120 PSI
• Standard Spring Range: 30-75 PSI
• High-Pressure Spring Range: 75-120 PSI
• Valve and Seat: 0.500-inch high-flow design
• Fuel Pump Support: 7-32 GPM

What's Included

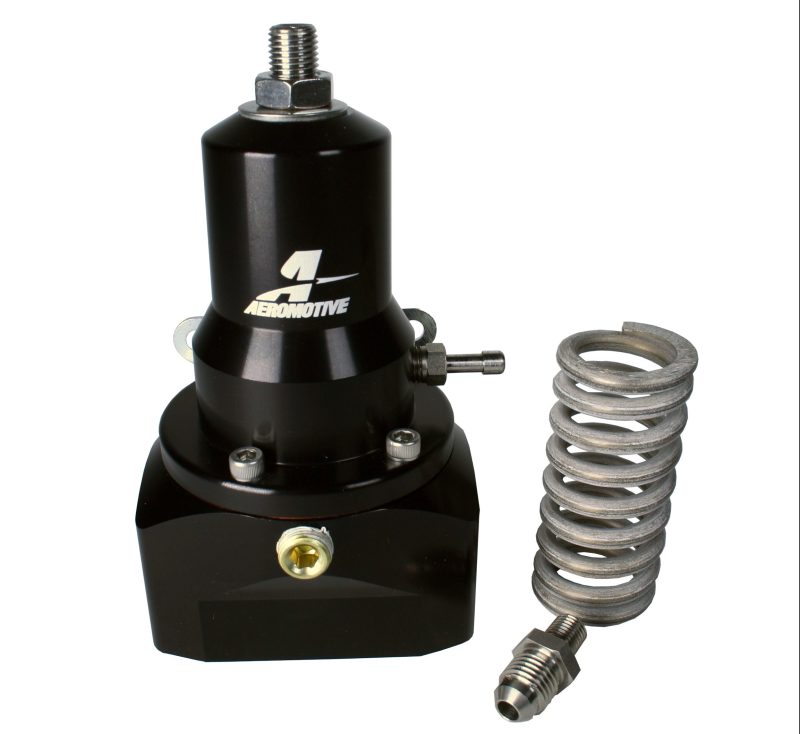

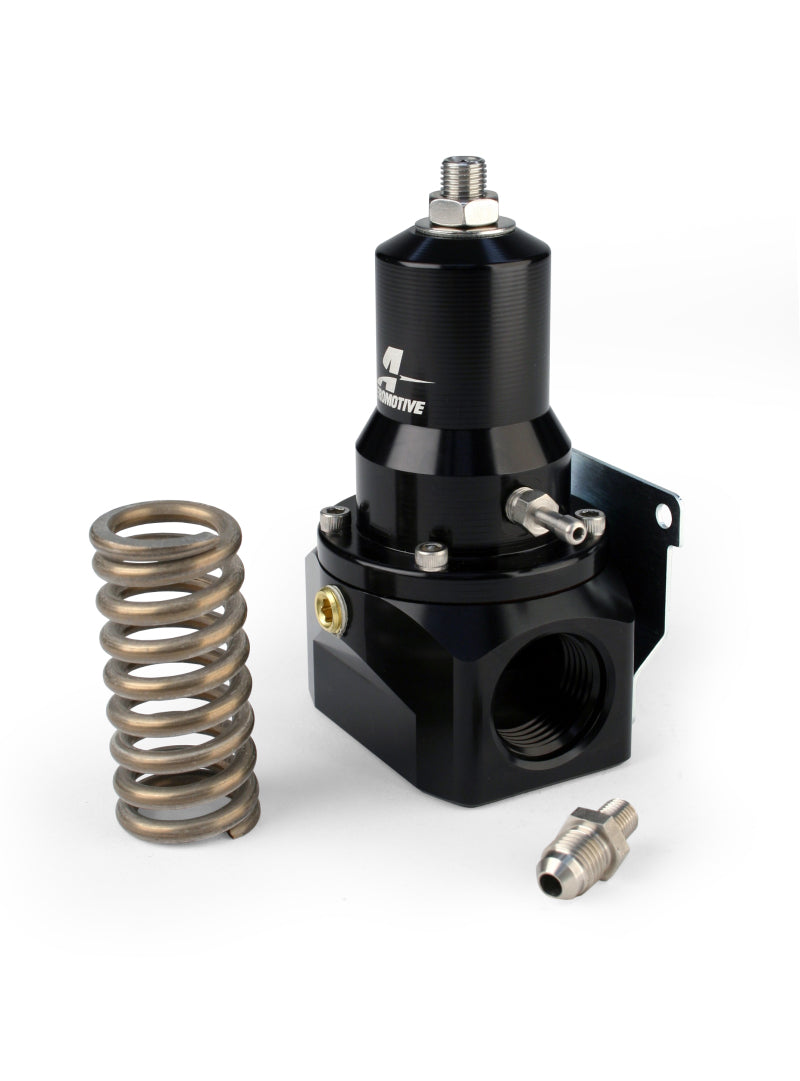

• Aeromotive Pro Mod EFI Gear Pump Regulator
• Standard spring, installed
• High-pressure spring

Features:

• High-Flow Performance: A 0.500-inch valve and seat support fuel pumps flowing from 7 to 32 GPM.
• Adjustable Pressure Range: Supports 30-120 PSI base fuel pressure with the included standard and high-pressure springs.
• Flexible Port Configuration: Includes dual ORB-12 inlet ports and one ORB-12 return port for high-volume fuel-system plumbing.
• Boost-Referenced Control: Supports vacuum and boost reference at a 1:1 ratio with PSI for consistent EFI fuel pressure management.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
