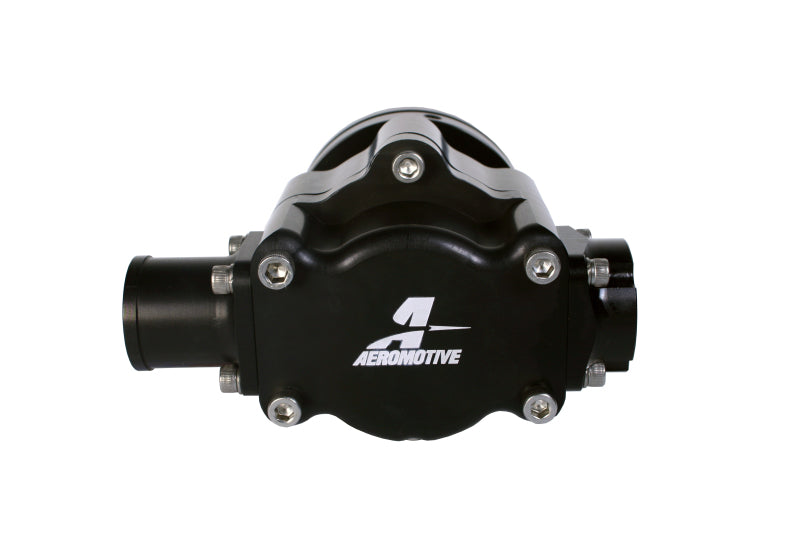

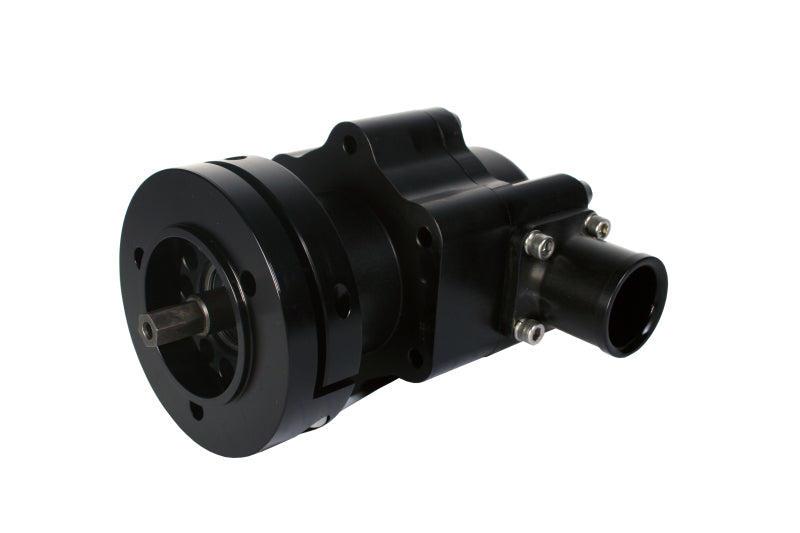

Aeromotive Atomic 12 GPM Hex Drive Mechanical Fuel Pump, Part Number 11117

12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows u p to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. 12 GPM Billet Hex Drive Mechanical Fuel Pump. direct drive provides convenience; can handle either gas or alcohol; supports around 5000 HP with gas; supports around 2500 HP with methanol

• EFI applications require high-flow return style regulators: P/N 13132,  13133,  13137 or  13113.
• Sold Separately: Electric Priming/Starting Kit:  P/N 17301
• Hex Drive Collar with 3-bolt Enderle bolt pattern.
• Includes both 1.25′ barb and AN-16 Male inlet.
• CNC Machined from 6061 T6 aircraft aluminum.
• High efficiency, Gerotor pumping mechanism.
• 5,000+ HP on gas, up to 2500 HP methanol.
• Tough, Type III hard coat anodized body.
• Standard male 3/8″ hex driveshaft.
• ORB-12 female outlet port.
• Flows up to 12 GPM

The Aeromotive Atomic 12 GPM Hex Drive Mechanical Fuel Pump is designed for high-output EFI and carbureted racing engines running gasoline, ethanol, or methanol. Its direct-drive design provides efficient, reliable fuel delivery for demanding applications, supporting up to 5,000 horsepower on gasoline and up to 2,500 horsepower on methanol. The pump can be driven through a 3/8-inch female hex from the camshaft or the rear of a properly prepared dry-sump oil pump.

For installation flexibility, the Aeromotive Part Number 11117 pump may also be mounted remotely and driven with a heavy-duty cable drive, such as a Waterman Racing cable-drive system. A high-efficiency Gerotor pumping mechanism delivers flow rates up to 12 gallons per minute, while the CNC-machined 6061-T6 aircraft aluminum body and Type III hard-coat anodized finish provide durability for demanding racing environments. The hex drive collar uses a three-bolt Enderle mounting pattern, and the pump includes both a 1.25-inch barb inlet and an AN-16 male inlet option. The outlet uses an ORB-12 female port.

EFI applications require a high-flow, return-style bypass regulator. Compatible Aeromotive regulator part numbers include 13132, 13133, 13137, and 13113. An electric priming and starting kit, Aeromotive Part Number 17301, is available separately. This pump is intended for automotive racing applications and is not approved for use on emissions-controlled street vehicles. Verify fuel compatibility, drive arrangement, regulator capacity, and installation requirements before use.

What's Included

• Aeromotive Atomic 12 GPM hex drive mechanical fuel pump
• 1.25-inch barb inlet
• AN-16 male inlet
• Standard male 3/8-inch hex driveshaft

Fitment

Universal racing and high-performance automotive applications requiring mechanically driven, high-volume fuel delivery. Confirm engine, fuel type, drive system, plumbing, and regulator compatibility before installation.

Features:

• Flow Capacity: Delivers up to 12 gallons per minute for high-demand EFI and carbureted fuel systems.
• Engine Support: Supports up to 5,000 horsepower on gasoline and up to 2,500 horsepower on methanol.
• Fuel Compatibility: Designed for gasoline, ethanol, and methanol applications.
• Drive Flexibility: Uses a standard male 3/8-inch hex driveshaft for camshaft, dry-sump pump, or remote cable-drive installation.
• Pumping Mechanism: High-efficiency Gerotor design provides consistent mechanical fuel delivery.
• Construction: CNC-machined 6061-T6 aircraft aluminum body with a durable Type III hard-coat anodized finish.
• Mounting: Hex drive collar features a three-bolt Enderle bolt pattern.
• Port Configuration: Includes a 1.25-inch barb inlet and AN-16 male inlet, with an ORB-12 female outlet.
• EFI Requirement: EFI systems require a high-flow return-style bypass regulator.
• Application Notice: Intended for racing use and not approved for emissions-controlled street vehicles.

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
