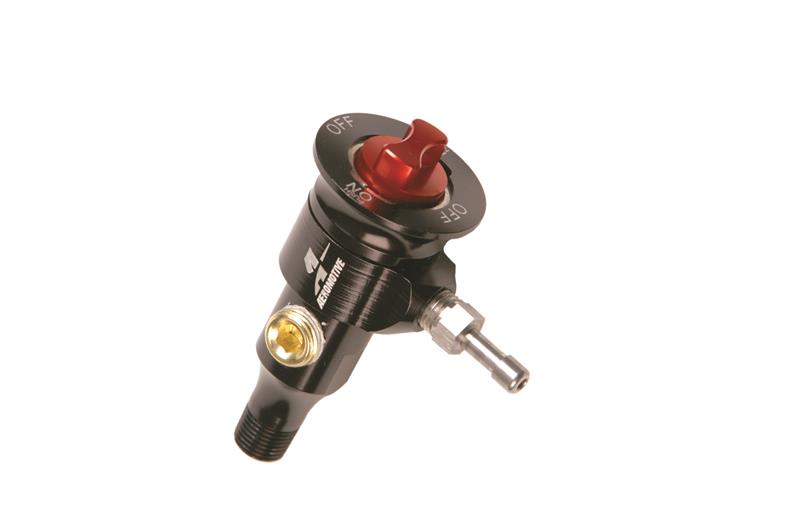

Aeromotive Billet Fuel Sample Valve, Part Number 15631

Aeromotive?s Billet Fuel Sample Valve is designed to simplify installation and make fuel checks a snap! Packed with common sense features, it?s simply the best sample valve on the market. Installs into any 1/8' NPT gauge port. Provides a duplicate 1/8' NPT port on the valve for installation of fuel pressure gauge or pressure sensor transducer. Sample port is equipped with stainless steel barb fitting for extension hose and rotates 360? for ease of installation and sampling. The ?dual action?, spring loaded safety valve keeps the valve sealed when unlocked and rotates into a locked position for racing. When a fuel sample is required, rotate to the unlocked position, press for fuel sample and release, re-lock the valve and go race. Billet Fuel Sample Valve. billet fuel sample valve; installs into any 1/8" NPT gauge port. rotates 360 degrees for ease of intallation/sampling; has dual-action spring-loaded safety valve.

The Aeromotive Billet Fuel Sample Valve, Part Number 15631, provides a clean and convenient way to check fuel during vehicle setup, tuning, and racing. Designed to install into any 1/8-inch NPT gauge port, this compact valve simplifies fuel sampling while preserving access for fuel system monitoring equipment.

A duplicate 1/8-inch NPT port allows installation of a fuel pressure gauge or pressure sensor transducer without sacrificing the sampling function. The sample port includes a stainless steel barb fitting for connecting an extension hose, and the fitting rotates 360 degrees to make installation and fuel collection easier in tight or difficult-to-access areas.

The dual-action, spring-loaded safety valve helps keep the port sealed when unlocked and rotates into a locked position for racing. To collect a sample, rotate the valve to the unlocked position, press the valve to release fuel, then release and return it to the locked position. The billet construction and practical design make the Aeromotive 15631 a dependable addition to performance fuel systems.

Brief Description

Billet fuel sample valve for convenient fuel testing through a 1/8-inch NPT gauge port.

Key Product Specifications and Technical Data

• Brand: Aeromotive
• Part Number: 15631
• Product Type: Billet fuel sample valve
• Inlet and Gauge Port Thread: 1/8-inch NPT
• Sample Connection: Stainless steel barb fitting
• Sample Fitting Rotation: 360 degrees
• Safety Mechanism: Dual-action, spring-loaded valve
• Application: Automotive performance fuel systems and racing use

What's Included in the Box

• One Aeromotive Billet Fuel Sample Valve

Fitment: Designed for automotive fuel systems with an available 1/8-inch NPT gauge port. Verify fuel system configuration and port access before installation.

Features:

• Easy Fuel Sampling: Simplifies fuel checks by providing a dedicated, press-to-sample valve for performance fuel systems.
• 1/8-Inch NPT Installation: Installs into any compatible 1/8-inch NPT gauge port for straightforward integration.
• Duplicate Gauge Port: Provides an additional 1/8-inch NPT port for a fuel pressure gauge or pressure sensor transducer.
• 360-Degree Rotating Sample Port: Stainless steel barb fitting rotates for easier hose routing, installation, and fuel collection.
