Aeromotive Phantom Dual 340 Fuel Pump System, Universal, 6–10-Inch Tank Depth, Part AER18309

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery. Fuel Pump, Universal, Phantom, Dual 340, 6-10" Depth . Dual 340 Phantom Fuel Pump; Two 340lph Stealth Fuel Pumps Supports 1400 HP EFI - Forced Induction, 1700 HP EFI - N/A, 1700 HP Carbureted - Forced Induction, 2000 HP Carbureted - N/A. Black anodized top hat, (4) ORB-06 Ports, (1) Return, (1) Vent

The Aeromotive Phantom Dual 340 Fuel Pump System is a high-performance universal fuel delivery solution designed for demanding street, drag, and competition applications. Part AER18309 combines two 340-liter-per-hour Stealth fuel pumps in a baffled in-tank assembly to provide dependable fuel flow for high-horsepower engines while helping maintain consistent fuel supply during hard acceleration, cornering, and braking.

Designed for fuel tanks with a 6- to 10-inch depth, the Phantom system features a black anodized top hat and four ORB-06 ports for flexible fuel-system routing. Dedicated return and vent provisions simplify installation and support a clean, serviceable fuel system layout. The dual-pump configuration provides the capacity required for engines producing up to 1,400 horsepower with forced-induction EFI, 1,700 horsepower with naturally aspirated EFI, 1,700 horsepower with forced-induction carbureted systems, or 2,000 horsepower with naturally aspirated carbureted systems, depending on fuel type, pressure, voltage, and overall system configuration.

Aeromotive engineers its fuel-delivery products using aerospace-inspired manufacturing tolerances and extensive track experience. The AER18309 is intended for automotive performance applications and is not CARB approved. Professional installation is recommended, including proper electrical wiring, fuel-line sizing, filtration, pressure regulation, and tank preparation. Verify tank depth, fuel compatibility, pump-control requirements, and applicable emissions regulations before installation.

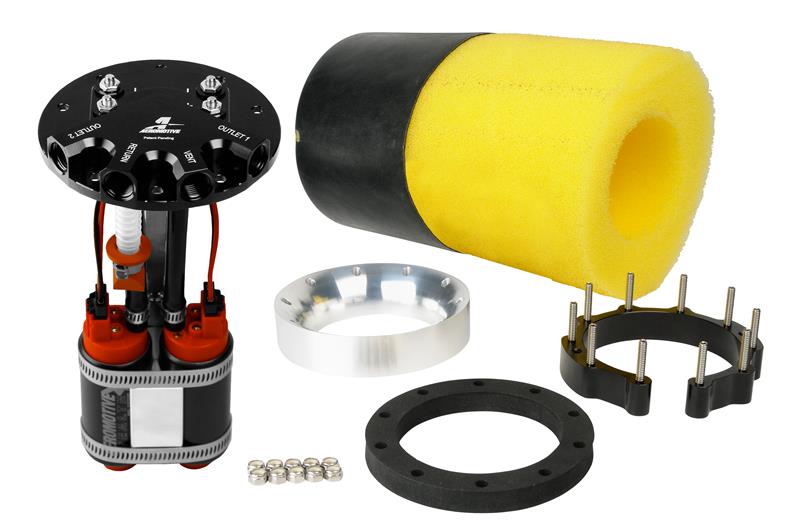

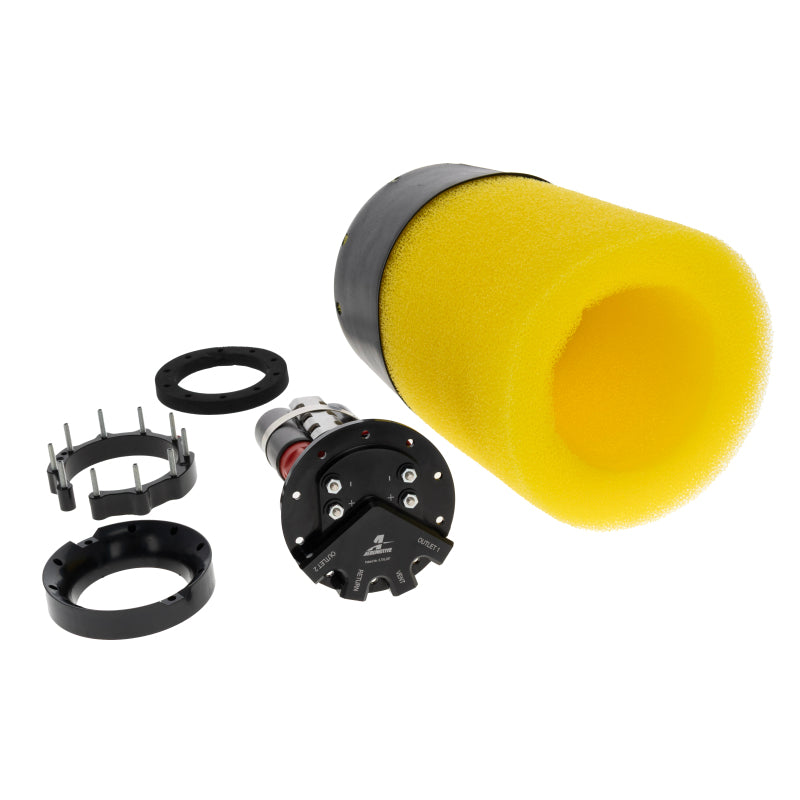

What's included: Aeromotive Phantom dual 340 fuel pump assembly with black anodized top hat, dual 340-liter-per-hour Stealth fuel pumps, ORB-06 fuel-system ports, return provision, and vent provision.

Features:

• Dual 340-LPH Stealth Pumps: Provides high-volume fuel delivery for high-horsepower EFI and carbureted applications.
• High Horsepower Capacity: Supports up to 1,400 horsepower forced-induction EFI, 1,700 horsepower naturally aspirated EFI, 1,700 horsepower forced-induction carbureted, or 2,000 horsepower naturally aspirated carbureted applications under appropriate operating conditions.
• Universal Phantom Design: Fits fuel tanks with a 6- to 10-inch depth range for adaptable in-tank installation.
• Flexible Fuel-System Routing: Includes four ORB-06 ports plus dedicated return and vent provisions for versatile plumbing.

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
