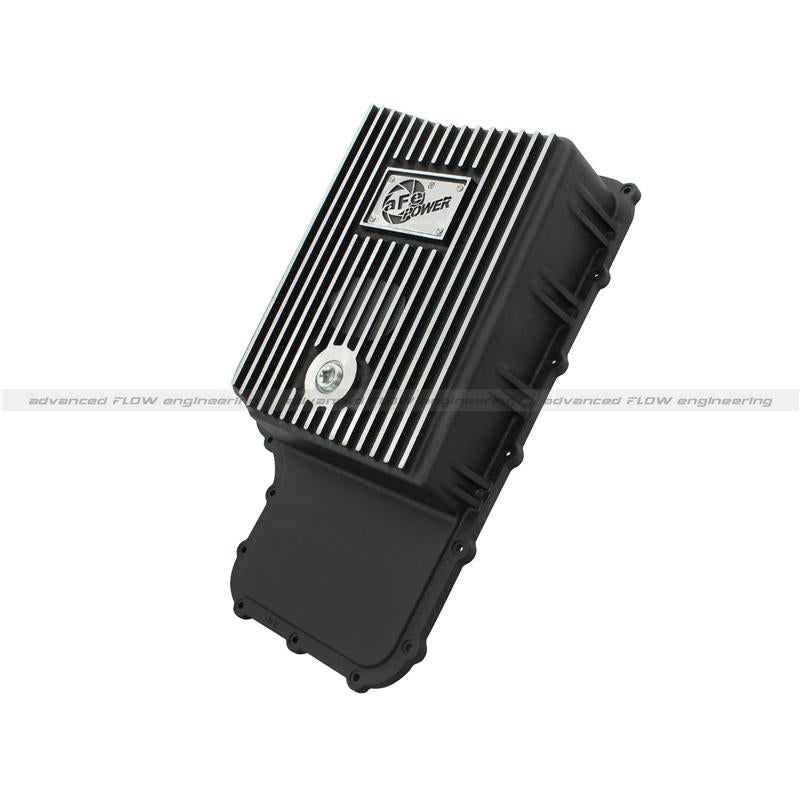

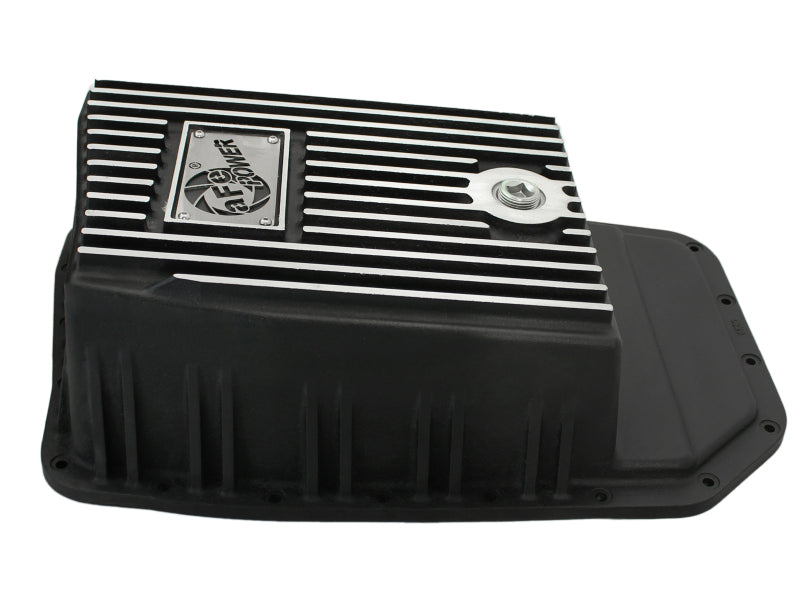

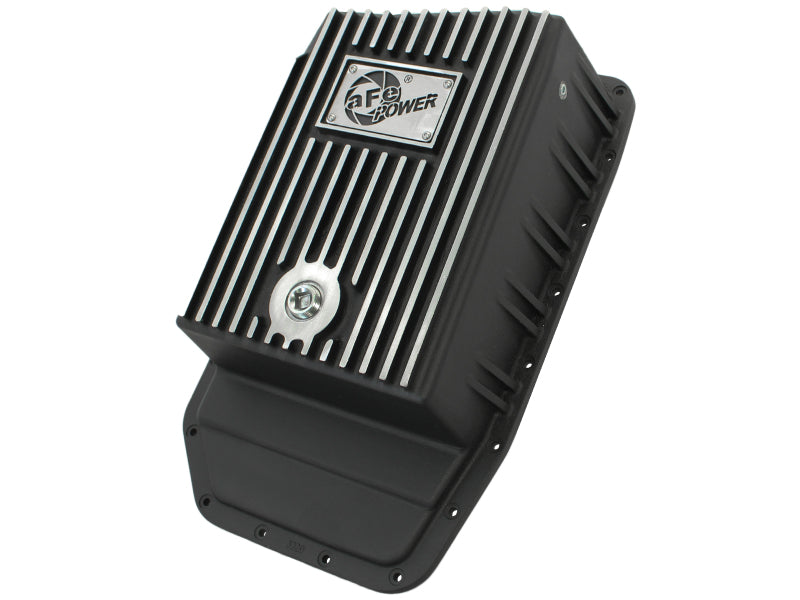

aFe POWER Pro Series Transmission Pan, Black with Machined Fins, Ford F-150 6R80, Part Number 46-70172

aFe POWER Pro Series deep transmission pan brings performance engineering to the protection of your trucks transmission. This transmission pan has additional capacity for 7 more quarts over stock at the factory line, a magnetic drain plug and a 1/8" NPT port for your temperature sensor. Built-in internal and external fins transfer heat from the fluid to the outside air for maximum cooling. This transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs and a wrinkle black powder-coating for maximum strength and styling. aFe POWER Pro Series Transmission Pan Black w/ Machined Fins Ford F-150 Trucks 09-20 (6R80 Transmission) 1/8" NPT Port; Magnetic Drain Plug; Compatible With Stock Filter; 7 Quarts over stock; Hassle-free Installation; Internal and External Fins; Reuses Factory Gasket; Retains Factory Magnet

• Internal And External fins
• Compatible w/Stock Filter
• Hassle Free Installation

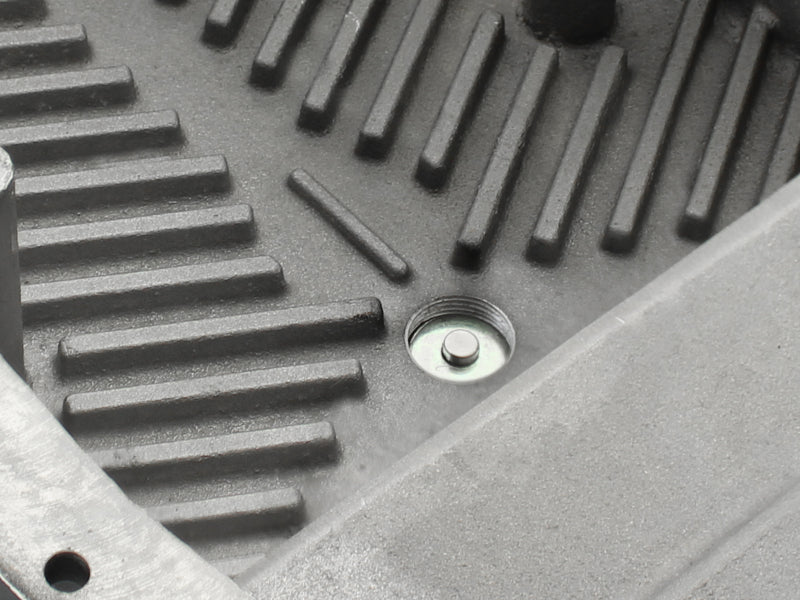

• Retains Factory Magnet
• Reuses Factory Gasket

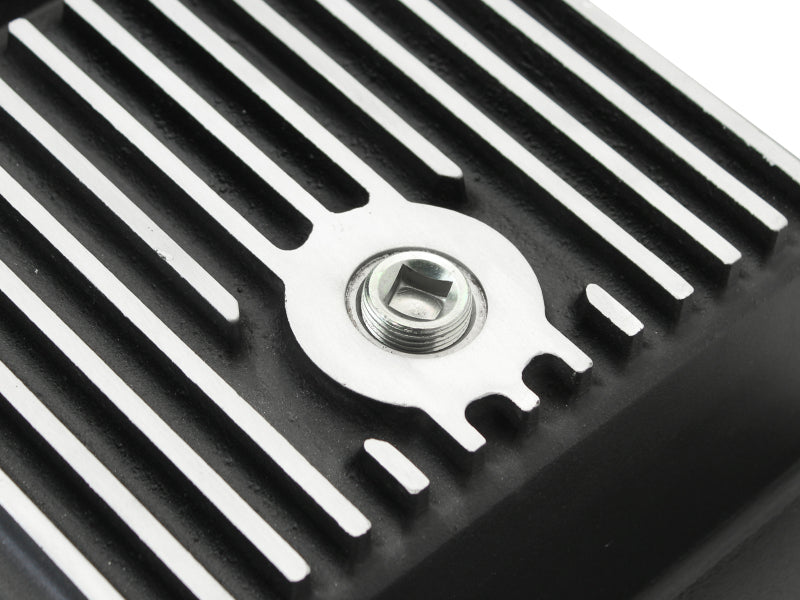

• Magnetic Drain Plug
• 7 Quarts Over Stock

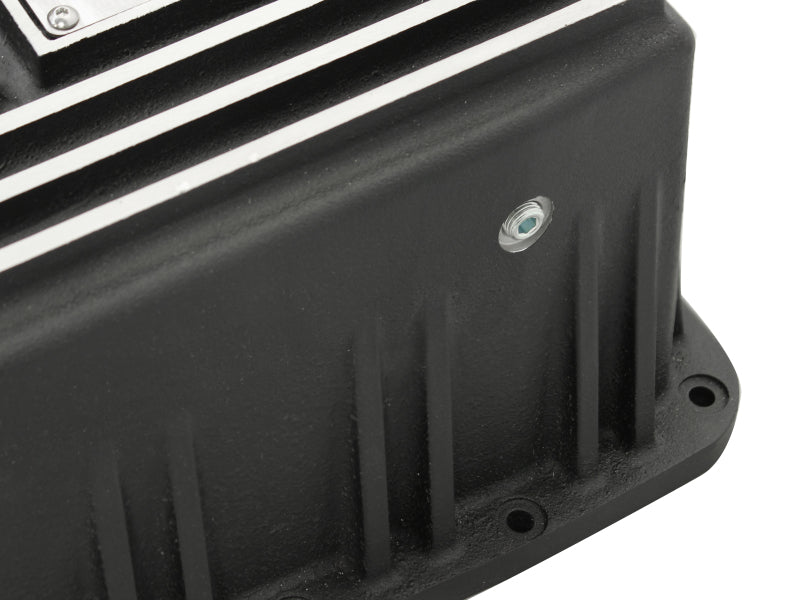

• 0.125 in. NPT Port

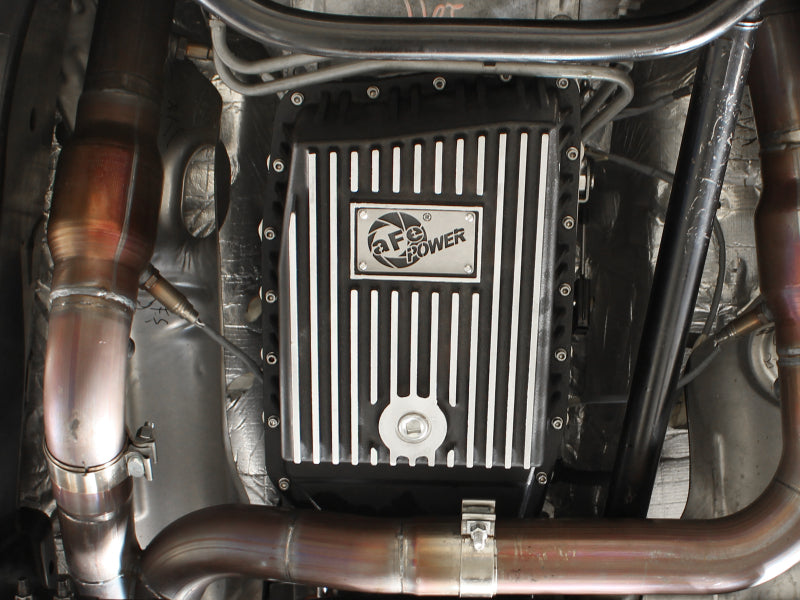

Upgrade transmission protection and fluid cooling with the aFe POWER Pro Series Transmission Pan, Part Number 46-70172. Designed for Ford F-150 trucks equipped with the 6R80 automatic transmission, this deep aluminum pan adds 7 quarts of fluid capacity over the factory configuration. The increased capacity helps support improved heat management and added fluid volume for demanding towing, hauling, and off-road applications.

Internal and external cooling fins transfer heat from the transmission fluid to the surrounding air, while the durable die-cast A380 aluminum construction and reinforced ribs provide strength and long-term durability. A wrinkle black powder-coated finish with machined fins delivers a clean, performance-oriented appearance. The pan includes a magnetic drain plug and a 1/8-inch NPT port for installing a transmission temperature sensor. It is compatible with the stock transmission filter, retains the factory magnet, and is designed to reuse the factory gasket for a straightforward installation.

Fitment includes select 2009-2020 Ford F-150 trucks using the 6R80 transmission, including listed applications from 2010 through 2013. Verify the vehicle year, engine, drivetrain, and transmission before ordering. This product is intended for automotive use and may require acknowledgment of applicable California emissions or Proposition 65 notices where required.

Key Product Specifications and Technical Data

• Brand: aFe POWER
• Part Number: 46-70172
• Product Type: Deep transmission pan
• Application: Ford F-150 with 6R80 transmission
• Construction: Die-cast A380 aluminum
• Finish: Wrinkle black powder coating with machined fins
• Additional Capacity: 7 quarts over stock
• Sensor Port: 1/8-inch NPT

What's Included

• aFe POWER Pro Series transmission pan
• Magnetic drain plug

Features:

• Additional Fluid Capacity: Adds 7 quarts over the factory transmission pan to support increased fluid volume and improved thermal management.
• Internal and External Cooling Fins: Help transfer heat from the transmission fluid to the outside air for enhanced cooling performance.
• Temperature Sensor Port: Includes a 1/8-inch NPT port for installation of a compatible transmission temperature sensor.
• Durable Direct-Fit Construction: Die-cast A380 aluminum with reinforced ribs, stock filter compatibility, factory magnet retention, and a reusable factory gasket design.

Fitments:
2009 Ford F-150 FX4
2009 Ford F-150 King Ranch
2009 Ford F-150 Lariat
2009 Ford F-150 Platinum
2009 Ford F-150 STX
2009 Ford F-150 XL
2009 Ford F-150 XLT
2010 Ford F-150 FX2
2010 Ford F-150 FX4
2010 Ford F-150 Harley-Davidson Edition
2010 Ford F-150 King Ranch
2010 Ford F-150 Lariat
2010 Ford F-150 Platinum
2010 Ford F-150 STX
2010 Ford F-150 SVT Raptor
2010 Ford F-150 XL
2010 Ford F-150 XLT
2011 Ford F-150 FX2
2011 Ford F-150 FX4
2011 Ford F-150 Harley-Davidson Edition
2011 Ford F-150 King Ranch
2011 Ford F-150 Lariat
2011 Ford F-150 Lariat Limited
2011 Ford F-150 Platinum
2011 Ford F-150 STX
2011 Ford F-150 SVT Raptor
2011 Ford F-150 XL
2011 Ford F-150 XLT
2012 Ford F-150 FX2
2012 Ford F-150 FX4
2012 Ford F-150 Harley-Davidson Edition
2012 Ford F-150 King Ranch
2012 Ford F-150 Lariat
2012 Ford F-150 Platinum
2012 Ford F-150 STX
2012 Ford F-150 SVT Raptor
2012 Ford F-150 XL
2012 Ford F-150 XLT
2013 Ford F-150 FX2
2013 Ford F-150 FX4
2013 Ford F-150 King Ranch
2013 Ford F-150 Lariat
2013 Ford F-150 Limited
2013 Ford F-150 Platinum
2013 Ford F-150 STX
2013 Ford F-150 SVT Raptor
2013 Ford F-150 XL
2013 Ford F-150 XLT
2014 Ford F-150 FX2
2014 Ford F-150 FX4
2014 Ford F-150 King Ranch
2014 Ford F-150 Lariat
2014 Ford F-150 Limited
2014 Ford F-150 Platinum
2014 Ford F-150 STX
2014 Ford F-150 SVT Raptor
2014 Ford F-150 XL
2014 Ford F-150 XLT
2015 Ford F-150 King Ranch
2015 Ford F-150 Lariat
2015 Ford F-150 Platinum
2015 Ford F-150 XL
2015 Ford F-150 XLT
2016 Ford F-150 King Ranch
2016 Ford F-150 Lariat
2016 Ford F-150 Limited
2016 Ford F-150 Platinum
2016 Ford F-150 SSV
2016 Ford F-150 XL
2016 Ford F-150 XLT
2017 Ford F-150 King Ranch
2017 Ford F-150 Lariat
2017 Ford F-150 Platinum
2017 Ford F-150 SSV
2017 Ford F-150 XL
2017 Ford F-150 XLT
2018 Ford F-150 XL
2018 Ford F-150 XLT
2019 Ford F-150 XL
2019 Ford F-150 XLT
2020 Ford F-150 XL
2020 Ford F-150 XLT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
