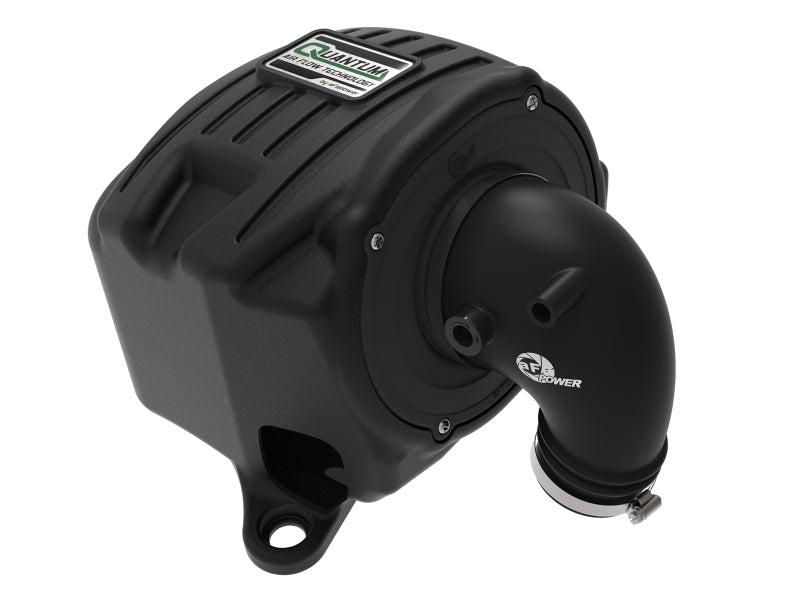

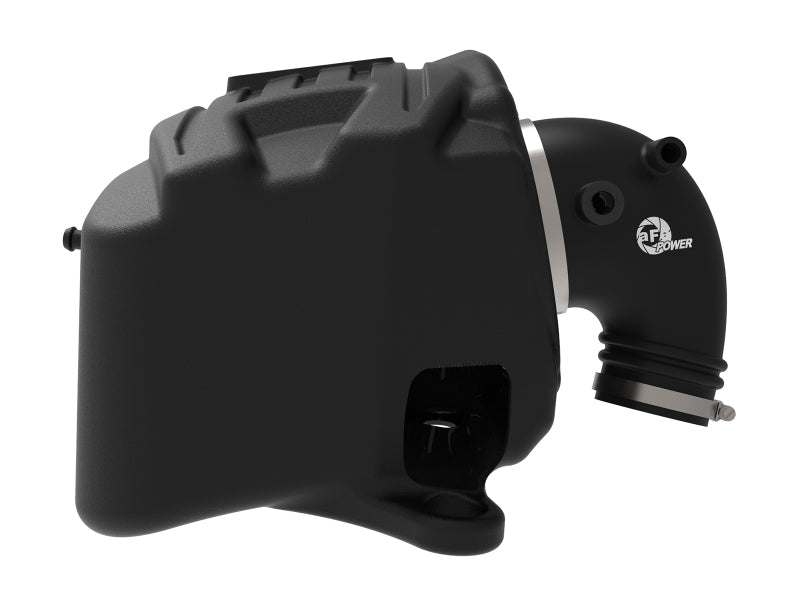

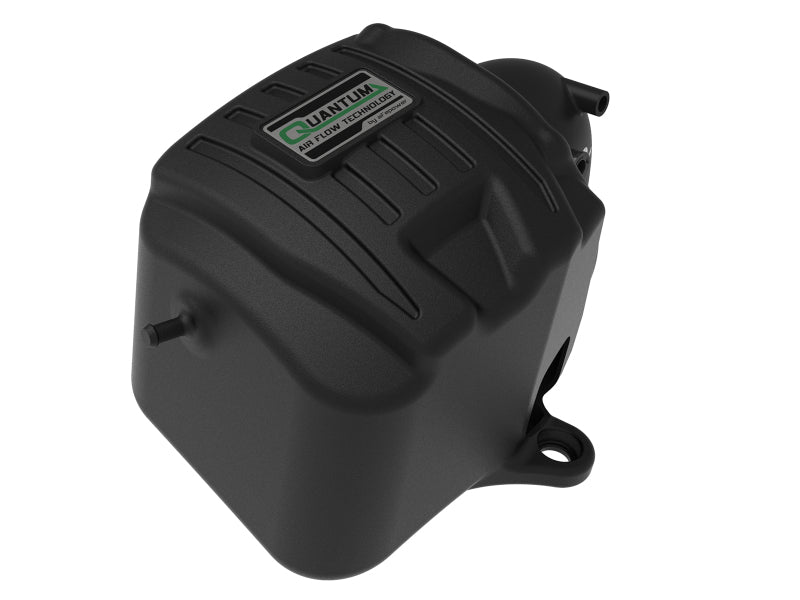

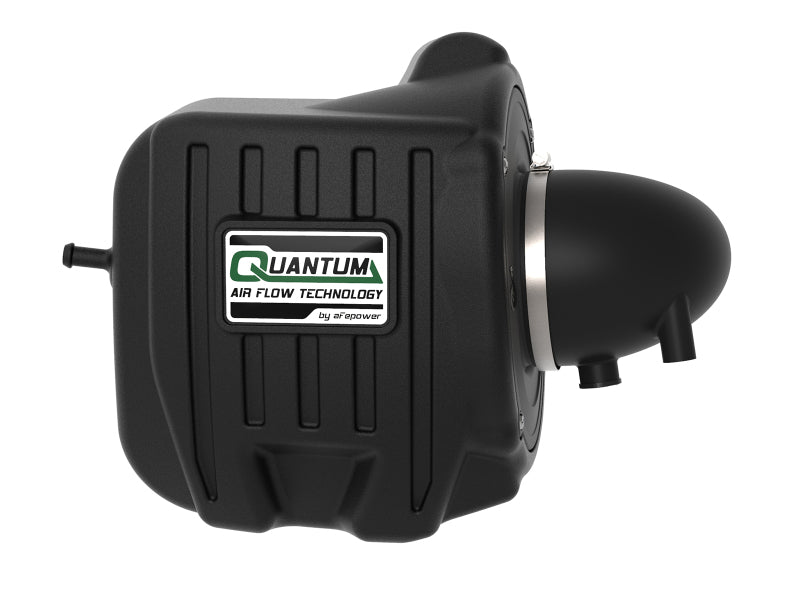

aFe Quantum Cold Air Intake System with Pro DRY S Filter for 2019–2022 Ford Ranger 2.3L Turbo, Part 53-10021D

Large Three Layer Performance Air Filter: This 360-degree radial flow air filter features a 5" flange and our oil-free Pro DRY S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street and light off-road use. The filter features an injection molded base and top for lighter weight and rigidity. Its base includes a built-in 3-angle velocity stack for smooth, even airflow and captive screws to easily attach the filter to the housing. Unique Integrated Filter-to-Housing Design: Quantum uses an integrated filter-to-housing design that attaches both components with four captive screws, making for a positive surface area seal and easy installation. Its durable sealed housing features a unique, five rib, industrial-grade look for aFe quality recognition. Reinforced Silicone Intake Tube: This intake system utilizes a flexible silicone intake tube that is reinforced with three layers of nylon material, making it virtually resistant to wear and deterioration. It features two port holes; one for an air temperature adapter and one for a vaccuum port fitting utilized from the OE intake. Hassle-Free Installation: Quantum intakes are designed with fewer parts for a quick and easy installation. This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. QUANTUM Cold Air Intake System w/ Pro DRY S Filter Ford Ranger 19-23 L4-2.3L (t)

• Durable XLPE Polymer Construction is Heat and Impact Resistant
• Includes Pro DRY S Air filter with 3-layer synthetic media
• Measured Flow: 290 CFM @ 7 IN H2O
• Outflows Factory Intake by 18%
• +7 lbs. x ft. TQ & +6 HP

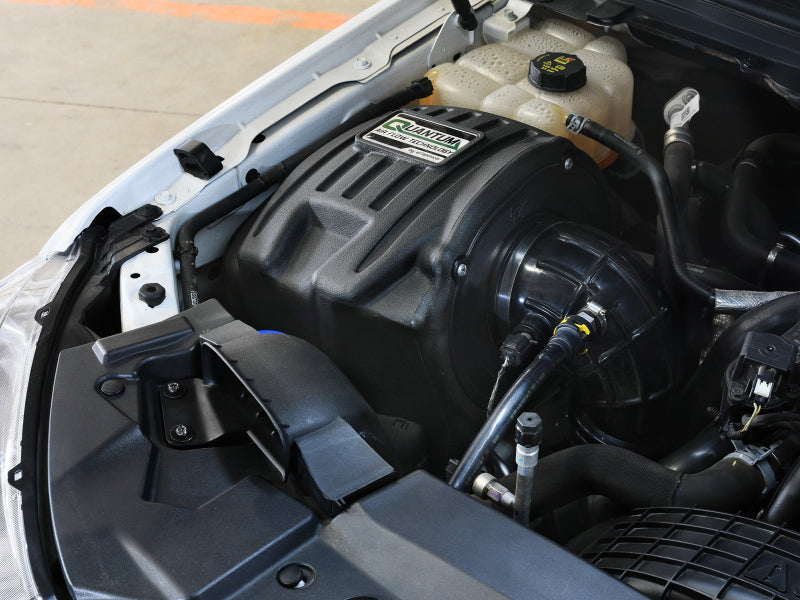

Upgrade the airflow and filtration performance of your 2019–2022 Ford Ranger equipped with the 2.3L turbocharged engine using the aFe Quantum Cold Air Intake System, Part 53-10021D. This direct-fit intake is engineered to improve air delivery to the engine while retaining factory mounting points and requiring no cutting or permanent modifications. The system includes a durable XLPE polymer housing that resists heat and impact, along with an integrated filter-to-housing design secured by four captive screws for a reliable seal and simplified installation.

The included large three-layer Pro DRY S air filter uses oil-free synthetic media for convenient maintenance and consistent filtration. Its progressive layering provides strong dust-holding capacity and filtration efficiency for street and light off-road applications. The filter’s injection-molded base and top improve rigidity and reduce weight, while the built-in three-angle velocity stack promotes smooth, even airflow. The filter is rated at a measured 290 CFM at 7 inches of water and is designed to outflow the factory intake by 18 percent.

A reinforced silicone intake tube uses three layers of nylon reinforcement for improved durability and resistance to wear and deterioration. Integrated ports accommodate the factory air temperature sensor adapter and vacuum connection. Based on manufacturer testing, the aFe Quantum intake can support gains of up to 6 horsepower and 7 pound-feet of torque. All required couplings, clamps, captive hardware, and installation components are included. This product is not CARB approved and may not be legal for use on pollution-controlled vehicles in all states.

Key Product Specifications & Technical Data

• Brand: aFe
• Part Number: 53-10021D
• Product Type: Cold air intake system
• Vehicle Application: 2019–2022 Ford Ranger
• Engine Application: 2.3L turbocharged four-cylinder
• Air Filter Media: Three-layer oil-free Pro DRY S synthetic media
• Measured Airflow: 290 CFM at 7 inches of water
• Construction: XLPE polymer housing with reinforced silicone intake tube

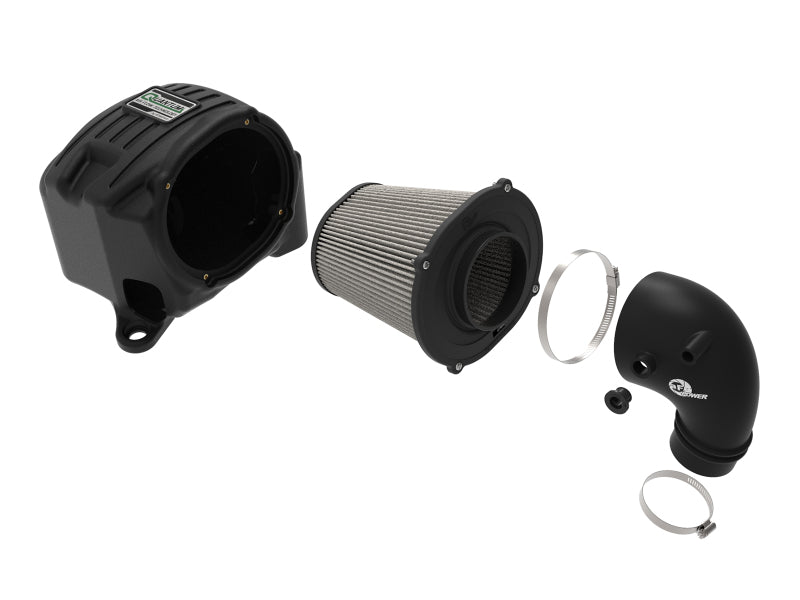

What’s Included

• Quantum intake housing
• Pro DRY S performance air filter
• Reinforced silicone intake tube
• Couplings, clamps, captive screws, and installation hardware

Fitment: Fits select 2019–2022 Ford Ranger models with the 2.3L turbocharged engine. Verify vehicle year, engine configuration, and emissions requirements before ordering.

Features:

• Heat- and impact-resistant XLPE polymer housing provides durable protection for the intake system.
• Three-layer oil-free Pro DRY S synthetic filter media delivers efficient filtration and high dust-holding capacity without filter oil.
• Measured airflow of 290 CFM at 7 inches of water and manufacturer-rated gains of up to 6 horsepower and 7 pound-feet of torque.
• Direct-fit design uses factory mounting points, integrated ports, and included hardware for installation without cutting or permanent modifications.

Fitments:
2019 Ford Ranger Lariat
2019 Ford Ranger XL
2019 Ford Ranger XLT
2020 Ford Ranger Lariat
2020 Ford Ranger XL
2020 Ford Ranger XLT
2021 Ford Ranger Lariat
2021 Ford Ranger XL
2021 Ford Ranger XLT
2022 Ford Ranger Lariat
2022 Ford Ranger XL
2022 Ford Ranger XLT
2023 Ford Ranger Lariat
2023 Ford Ranger XL
2023 Ford Ranger XLT

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
