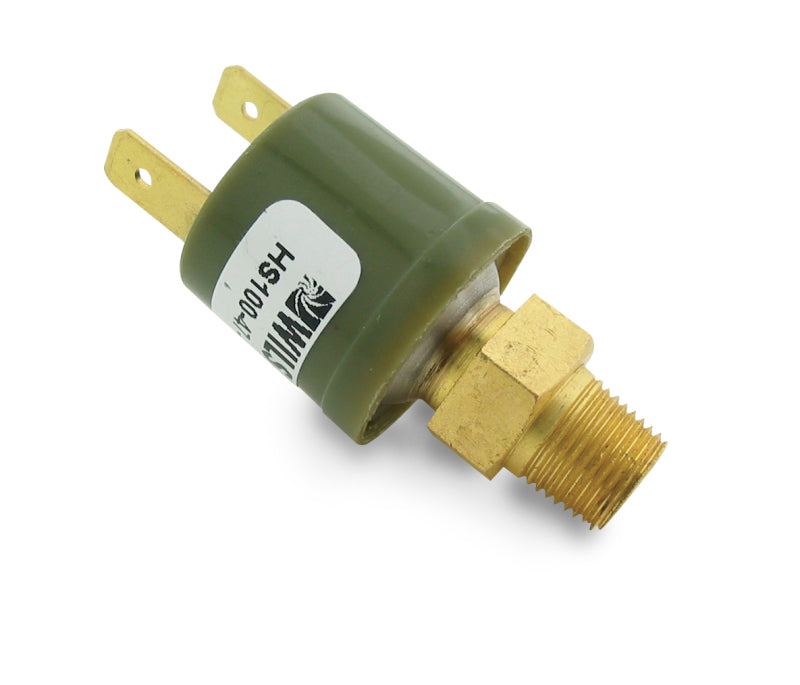

Air Lift ALF24575 145-175 PSI Air Compressor Pressure Switch

Turns compressor on at any pressure lower than 145 PSI, and shuts the compressor off at 175 PSI or higher. Threads are 1/8in MNPT. NOTE: This pressure switch is only recommended for the Viair 380C (16380) and Viair 480C (16480) compressors. Air Pressure Switch; 145-175 PSI;

• Shuts off Compressor At 175 PSI
• Threads Are 1/8 In MNPT

The Air Lift ALF24575 pressure switch is designed to automatically control compatible air suspension compressors within a 145 to 175 PSI operating range. It turns the compressor on when system pressure drops below 145 PSI and shuts it off when pressure reaches 175 PSI or higher, helping maintain consistent air pressure during normal operation.

This automotive air pressure switch features 1/8-inch male National Pipe Tapered (MNPT) threads for installation in compatible air management systems. The Air Lift ALF24575 is specifically recommended for use with Viair 380C and 480C compressors, including Viair compressor models 16380 and 16480. Verify compressor and system compatibility before installation.

Product Specifications and Technical Data

• Brand: Air Lift
• Part Number: ALF24575
• Product Type: Air compressor pressure switch
• Pressure-On Setting: Below 145 PSI
• Pressure-Off Setting: 175 PSI or higher
• Thread Size: 1/8-inch MNPT
• Recommended Compressor Compatibility: Viair 380C and 480C
• Application: Automotive air suspension and compressor control systems

What's Included

• One Air Lift ALF24575 pressure switch

Installation should be performed using appropriate thread-sealing practices and in accordance with the compressor and air suspension manufacturer’s instructions. This switch is intended for the specified Viair compressor applications and may not be suitable for systems with different pressure requirements or electrical specifications.

Features:

• Automatic Pressure Control: Turns the compressor on below 145 PSI and shuts it off at 175 PSI or higher.
• Compatible Compressor Applications: Specifically recommended for Viair 380C and 480C compressors, including models 16380 and 16480.
• Standard Threaded Connection: Uses 1/8-inch male National Pipe Tapered (MNPT) threads for compatible air system installation.
• Air Suspension System Support: Helps maintain operating pressure in automotive air compressor and air suspension applications.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
