Air Lift LoadLifter 5000 ULTIMATE Rear Air Spring Kit ALF88213 for 2015–2026 Ford Transit-150, Transit-250 and Transit-350

LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort. An Air Lift exclusive product! Fits vehicles with in-bed hitches. Tow and haul the heaviest loads with safety and comfort with LoadLifter 5000 ULTIMATE. Works with vehicle's leaf springs to provide up to 5,000 lbs. of rear load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. Fully adjustable from 5 to 100 PSI. The closed-cell urethane foam jounce bumper inside the ULTIMATE air springs provide a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE! LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs. Requires no drilling into frame! Includes industry-exclusive 60 Day No Questions Money Back Guarantee! Includes the most comprehensive Lifetime Warranty in the industry---covers all kit contents including brackets, fittings and air line. Air springs are built like a tire and are reinforced by durable, 2-ply fabric for maximum strength. Exclusive upper and lower roll plates included. Protect the springs from sharp edges, such as brackets or the frame. The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware needed for installation. Includes fully illustrated instruction manual. Add an Air Lift on-board air compressor system to inflate and deflate air springs with the touch of a button from inside or outside of the vehicle. LoadLifter 5000 ULTIMATE with internal jounce bumper to absorb shock for best ride comfort Improves handling, braking, and steering response by maintaining ride height under load Ford: Transit-150 15 - 26, Ford: Transit-250 15 - 26, Ford: Transit-350 15 - 26

• Air springs fully adjustable from 5-100 PSI, helping to level your vehicle when towing or hauling a heavy load for a safe, comfortable ride with no sag or bottoming out
• Air Springs Fully Adjustable From 5-100 PSI Helping To Level Your Vehicle When Towing
• Features Air Lift's Lifetime Warranty, with a 60 Day Ride Satisfaction Guarantee
• Up to 5,000 lbs. of load-leveling capacity (Note: Do not exceed vehicle's GVWR)
• Features Air Lifts Lifetime Warranty With A 60 Day Ride Satisfaction Guarantee
• Up To 5000 LBS Of Load Leveling Capacity Note Do Not Exceed Vehicles GVWR
• Rugged durable components including air springs and all hardware
• Exclusive Internal Jounce Bumper Inside Springs Absorbs Shock
• Easy to install with fully-illustrated installation manual
• Easy To Install With Fully Illustrated Installation Manual
• Underframe kit designed to work with most in-bed hitches
• Underframe Kit Designed To Work With Most In Bed Hitches
• Internal jounce bumper prevents bottoming out
• Does not fit E-Transit 350
• Does Not Fit E Transit 350

The Air Lift LoadLifter 5000 ULTIMATE Rear Air Spring Kit, Part Number ALF88213, is designed for Ford Transit-150, Transit-250 and Transit-350 models from 2015 through 2026. This underframe air spring system works with the vehicle’s factory leaf springs to provide up to 5,000 pounds of rear load-leveling capacity, helping maintain a stable, level and comfortable ride when towing or hauling heavy loads. Do not exceed the vehicle’s gross vehicle weight rating.

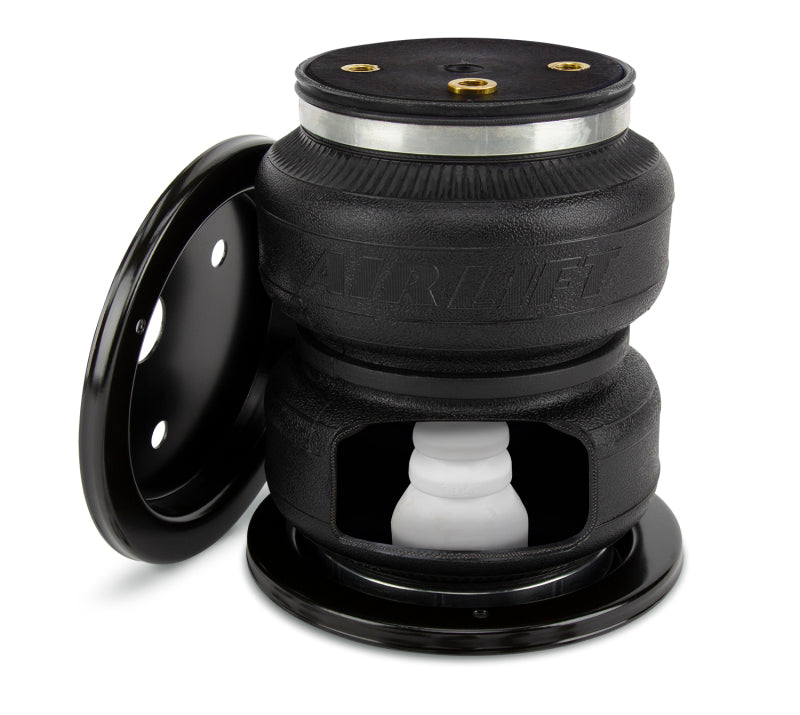

Each LoadLifter 5000 ULTIMATE air spring includes Air Lift’s exclusive internal jounce bumper. The closed-cell urethane bumper absorbs shock, reduces harsh impacts on rough roads and helps prevent bottoming out. The springs are adjustable from 5 to 100 PSI, allowing you to fine-tune support for changing loads. The internal bumper also allows the vehicle to be operated safely with zero air pressure and replaces the factory jounce bumper that may be removed during installation.

Built for durability, the air springs feature reinforced two-ply fabric construction with exclusive upper and lower roll plates to help protect against contact with brackets or the vehicle frame. The kit requires no drilling into the frame and is designed to work with most in-bed hitches. Installation is supported by a fully illustrated instruction manual. Air Lift includes a comprehensive Lifetime Warranty covering the kit contents, including brackets, fittings and air line, along with a 60-Day Ride Satisfaction Guarantee. The kit does not fit the Ford E-Transit 350. For convenient pressure adjustment, pair the system with an Air Lift onboard air compressor.

What's Included

Two rear air springs, mounting brackets, air lines, Schrader valve, installation hardware and a fully illustrated installation manual.

Fitment

Fits 2015–2026 Ford Transit-150, Transit-250 and Transit-350 models. Verify vehicle configuration and application before ordering.

Features:

• Internal jounce bumper: Absorbs shock, improves ride comfort and helps prevent bottoming out.
• Load-leveling capacity: Supports up to 5,000 pounds of rear load-leveling capacity while helping maintain factory ride height under load.
• Adjustable air pressure: Operates from 5 to 100 PSI for customizable support during towing and hauling.
• Durable, easy installation: Reinforced two-ply air springs, protective roll plates, no-drill mounting and compatibility with most in-bed hitches.

Fitments:
2015 Ford Transit-150 Base
2015 Ford Transit-150 XL
2015 Ford Transit-150 XLT
2015 Ford Transit-250 Base
2015 Ford Transit-350 Base
2015 Ford Transit-350 XL
2015 Ford Transit-350 XLT
2016 Ford Transit-150 Base
2016 Ford Transit-150 XL
2016 Ford Transit-150 XLT
2016 Ford Transit-250 Base
2016 Ford Transit-250 PTV
2016 Ford Transit-350 Base
2016 Ford Transit-350 XL
2016 Ford Transit-350 XLT
2017 Ford Transit-150 Base
2017 Ford Transit-150 XL
2017 Ford Transit-150 XLT
2017 Ford Transit-250 Base
2017 Ford Transit-250 PTV
2017 Ford Transit-350 Base
2017 Ford Transit-350 XL
2017 Ford Transit-350 XLT
2018 Ford Transit-150 Base
2018 Ford Transit-150 XL
2018 Ford Transit-150 XLT
2018 Ford Transit-250 Base
2018 Ford Transit-250 PTV
2018 Ford Transit-350 Base
2018 Ford Transit-350 XL
2018 Ford Transit-350 XLT
2019 Ford Transit-150 Base
2019 Ford Transit-150 XL
2019 Ford Transit-150 XLT
2019 Ford Transit-250 Base
2019 Ford Transit-250 PTV
2019 Ford Transit-350 Base
2019 Ford Transit-350 XL
2019 Ford Transit-350 XLT
2020 Ford Transit-150 Base
2020 Ford Transit-150 PTV
2020 Ford Transit-150 XL
2020 Ford Transit-150 XLT
2020 Ford Transit-250 Base
2020 Ford Transit-250 PTV
2020 Ford Transit-350 Base
2020 Ford Transit-350 PTV
2020 Ford Transit-350 XL
2020 Ford Transit-350 XLT
2021 Ford Transit-150 Base
2021 Ford Transit-150 PTV
2021 Ford Transit-150 XL
2021 Ford Transit-150 XLT
2021 Ford Transit-250 Base
2021 Ford Transit-350 Base
2021 Ford Transit-350 PTV
2021 Ford Transit-350 XL
2021 Ford Transit-350 XLT
2021 Ford Transit-350 HD Base
2021 Ford Transit-350 HD XL
2021 Ford Transit-350 HD XLT
2022 Ford Transit-150 Base
2022 Ford Transit-150 PTV
2022 Ford Transit-150 XL
2022 Ford Transit-150 XLT
2022 Ford Transit-250 Base
2022 Ford Transit-250 PTV
2022 Ford Transit-350 Base
2022 Ford Transit-350 PTV
2022 Ford Transit-350 XL
2022 Ford Transit-350 XLT
2023 Ford Transit-150 Base
2023 Ford Transit-150 PTV
2023 Ford Transit-150 XL
2023 Ford Transit-150 XLT
2023 Ford Transit-250 Base
2023 Ford Transit-250 PTV
2023 Ford Transit-350 Base
2023 Ford Transit-350 PTV
2023 Ford Transit-350 XL
2023 Ford Transit-350 XLT
2024 Ford Transit-150 Base
2024 Ford Transit-150 PTV
2024 Ford Transit-250 Base
2024 Ford Transit-250 PTV
2024 Ford Transit-350 Base
2024 Ford Transit-350 PTV
2024 Ford Transit-350 XL
2024 Ford Transit-350 XLT
2025 Ford Transit-150 Base
2025 Ford Transit-150 PTV
2025 Ford Transit-250 Base
2025 Ford Transit-250 PTV
2025 Ford Transit-350 Base
2025 Ford Transit-350 PTV
2025 Ford Transit-350 XL
2025 Ford Transit-350 XLT
2026 Ford Transit-150 Base
2026 Ford Transit-150 PTV
2026 Ford Transit-250 Base
2026 Ford Transit-250 PTV
2026 Ford Transit-350 Base
2026 Ford Transit-350 PTV
2026 Ford Transit-350 XL
2026 Ford Transit-350 XLT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
