ARB 10,000-Pound Compact Winch with Premium Synthetic Rope – ARW100SA

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover. ARB Compact Winch 10,000 lbs with Premium Synthetic Rope

• Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.
• The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
• A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
• 4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.
• Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
• Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
• Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
• One piece bridging plate offers greater torsional strength.

The ARB ARW100SA Compact Winch delivers dependable recovery performance in a space-conscious, all-in-one design. Rated for a 10,000-pound pulling capacity, this 12-volt winch integrates the motor control unit and custom Albright contactor directly into the winch housing. This configuration improves motor efficiency, reduces installation complexity, and supports clean fitment with modern bumpers and vehicle sensors without requiring a separate control box.
Engineered for strength and long-term durability, the ARB Winch uses a 4-stage hardened steel gearbox with a 171:1 gear ratio for efficient load distribution, strong pulling power, and fast line speeds. A gearbox-mounted brake provides 100% load holding and supports powered unspooling under no load, helping simplify line deployment. The one-piece bridging plate increases torsional rigidity, while the IP68-rated construction helps protect internal components from dust and water intrusion in demanding recovery environments.
Installation is streamlined with pre-wired connections, flexible mounting options, and a 16-position clockable clutch handle that can be adjusted in 22.5-degree increments. The included compact controller supports both wireless and wired operation, using a 2.4GHz wireless connection with sealed receiver circuitry for reliable, interference-resistant communication from distances up to 131 feet. A 16-foot control lead provides direct operation, and the remote-mounted control plug allows for low-profile or concealed installations without sacrificing hardwired control access.
The ARB ARW100SA includes a 500-amp power isolation switch with a universal mount, stainless steel lanyard, and protective dust cover. Its premium synthetic rope, compact layout, and durable recovery-focused construction make this ARB winch a practical solution for trucks, SUVs, and off-road vehicles requiring reliable winching performance.

Features:

• 10,000-pound-rated ARB compact winch with premium synthetic rope and a tuned 12-volt motor

• Integrated motor control unit and custom Albright contactor eliminate the need for a separate control box

• 4-stage hardened steel gearbox with a 171:1 ratio provides strong load distribution and fast line speeds

• Gearbox-mounted brake delivers 100% load holding and enables powered no-load unspooling

• IP68-rated construction helps protect against dust and water intrusion

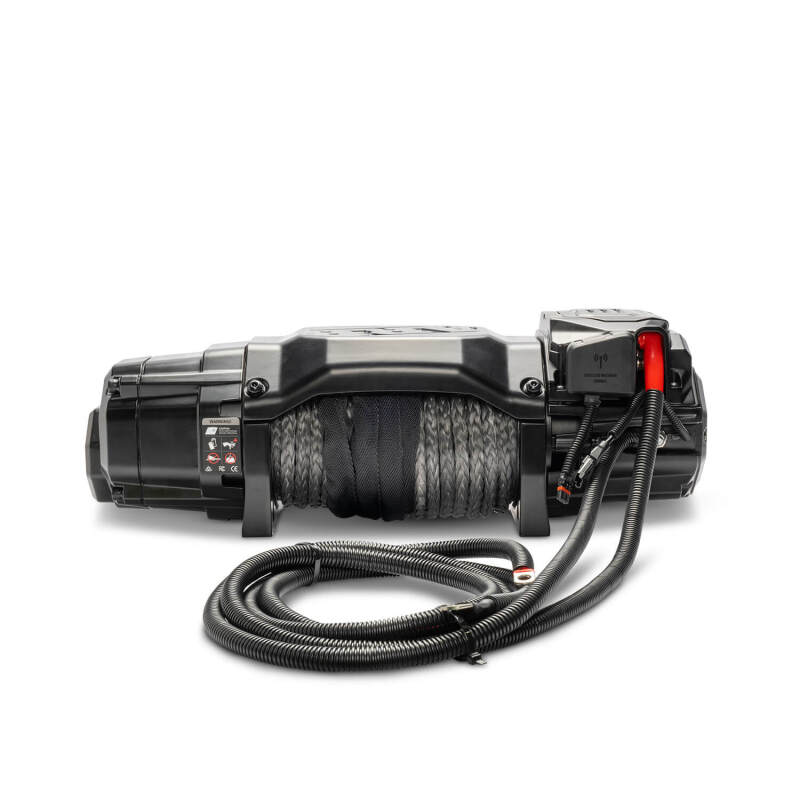

• Pre-wired connections and flexible mounting options simplify installation

• 16-position clutch handle adjusts in 22.5-degree increments for versatile mounting

• 2.4GHz wireless remote with sealed receiver circuitry helps prevent interference and remote conflict

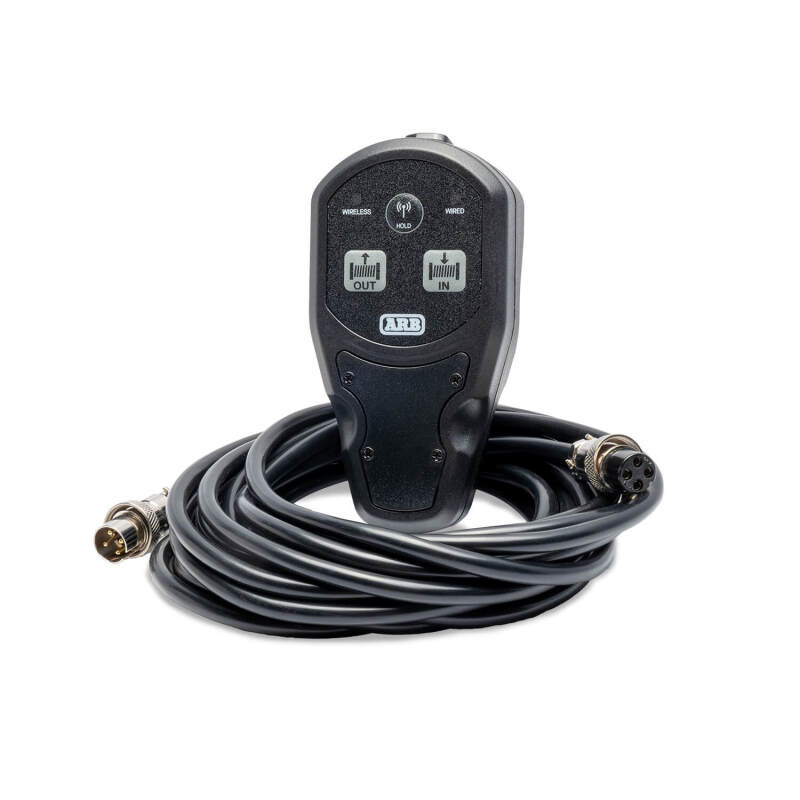

• Dual-connection controller includes wireless operation and a 16-foot wired lead

• Remote-mounted control plug supports low-profile or hidden winch installations

• One-piece bridging plate improves torsional strength

• 500-amp power isolation switch includes a universal mount, stainless steel lanyard, and dust cover
