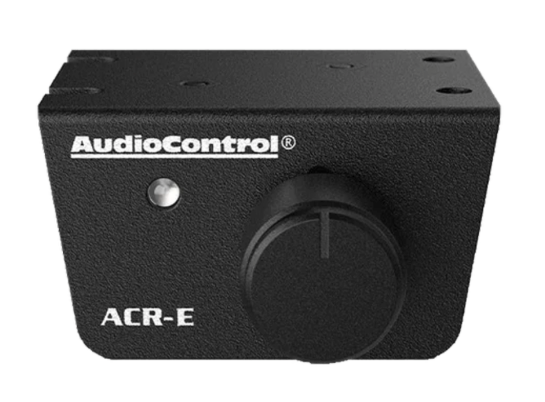

Audio Control ACR-E Dash Remote: ARC-E

The ACR-E remote level control allows you to control the volume of the EPIC Series monoblock amplifiers from the front of the vehicle. The remote acts as an attenuator, meaning when it is fully clockwise there is no change to the volume (as if there is no remote connected). Turning the knob counter-clockwise decreases the volume.

Installation: The ACR-E may be mounted under the dash using its own enclosure, or through a custom hole in the dash. The level control knob should be within reach of the driver, and in a spot where the LED is plainly visible. Ensure the amplifier is powered off when connecting the ACR-E.

Dash Bracket Installation: The ACR-E mounts with four screws, which attach to the underside of the dashboard. Slide under the dash and place the dash control in its mounting position, mark the mounting holes, drill pilot holes, and secure with four screws.

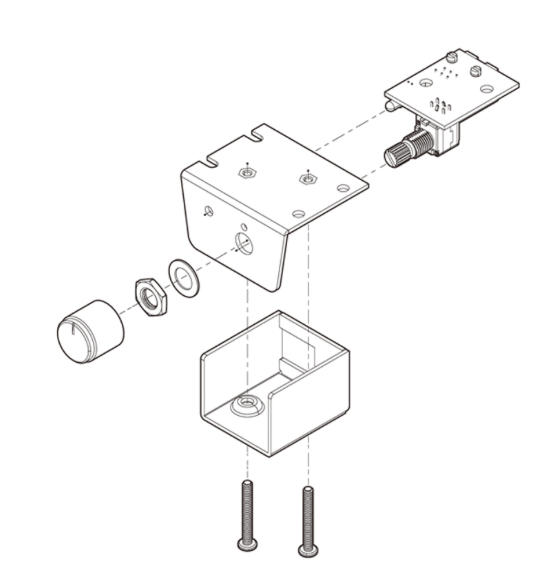

Custom Installation: ACR-E can be flush mounted directly on the dash/console panel (or anywhere else). Referencing the drawing right, disassemble the ACR-E. Drill a 9/32" (7 mm) hole in the panel for the control along with a 3/32" (2.3 mm) hole for the lock tab and a 1/8" (3 mm) hole for the LED. Reassemble the ACR-E components on the dashboard or console.
