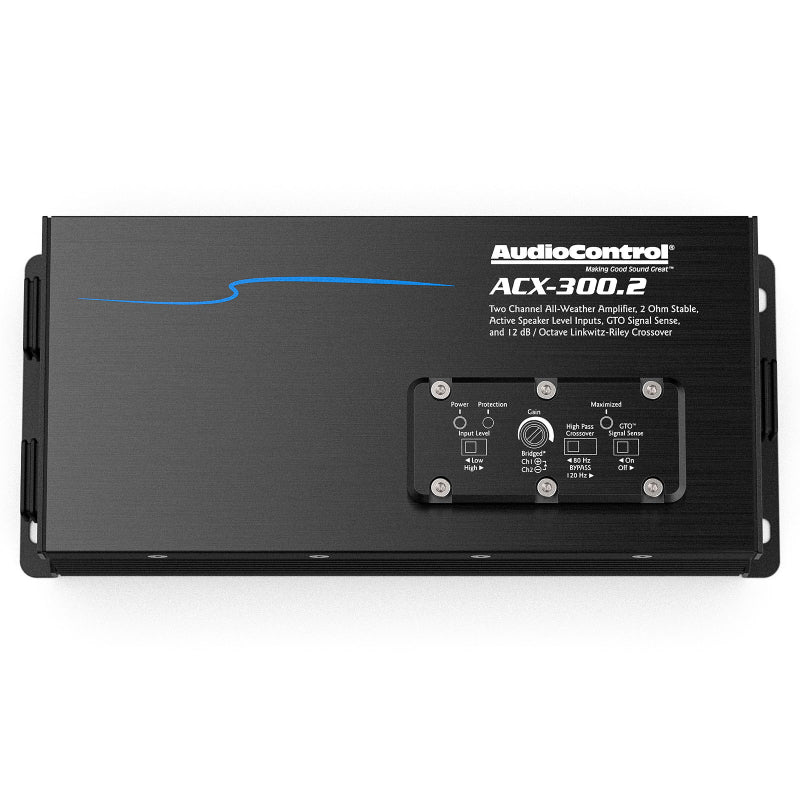

Audio Control ACX-300.2 ACX Series 150W x 2 RMS @2Ohms, 300W Max Power 2-Channel All Weather Amplifier

Audio Control ACX-300.2 ACX Series 150W x 2 RMS @2Ohms, 300W Max Power 2-Channel All Weather Amplifier

Audio Control

Regular price $349.00 USD
Regular price $399.00 USD Sale price $349.00 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Features:

  • High Power Output from a Compact Chassis
  • IPX6 Rated
  • Bridgeable (Select Models)
  • AccuBASS® Bass Restoration (Select Models)
  • Optional Remote Level Control (Select Models)
  • High/Low Input Modes
  • GTO™ Signal Sense
  • Linkwitz-Riley Crossovers
  • lnstaller Friendly Quick Connect Wiring



Specifications:

Inputs:

  • Preamp/Speaker Level Inputs: 2
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms



Outputs:

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 75 W x 2
    • 2 Ω – 150 W x 2
    • Bridged 4 Ω – 300 W x 1

Performance:

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6



General:

  • Recommended Fuse Rating: 30A



Dimensions:

  • Dimensions: 8.89″W x 3.86″D x 2.36″H
