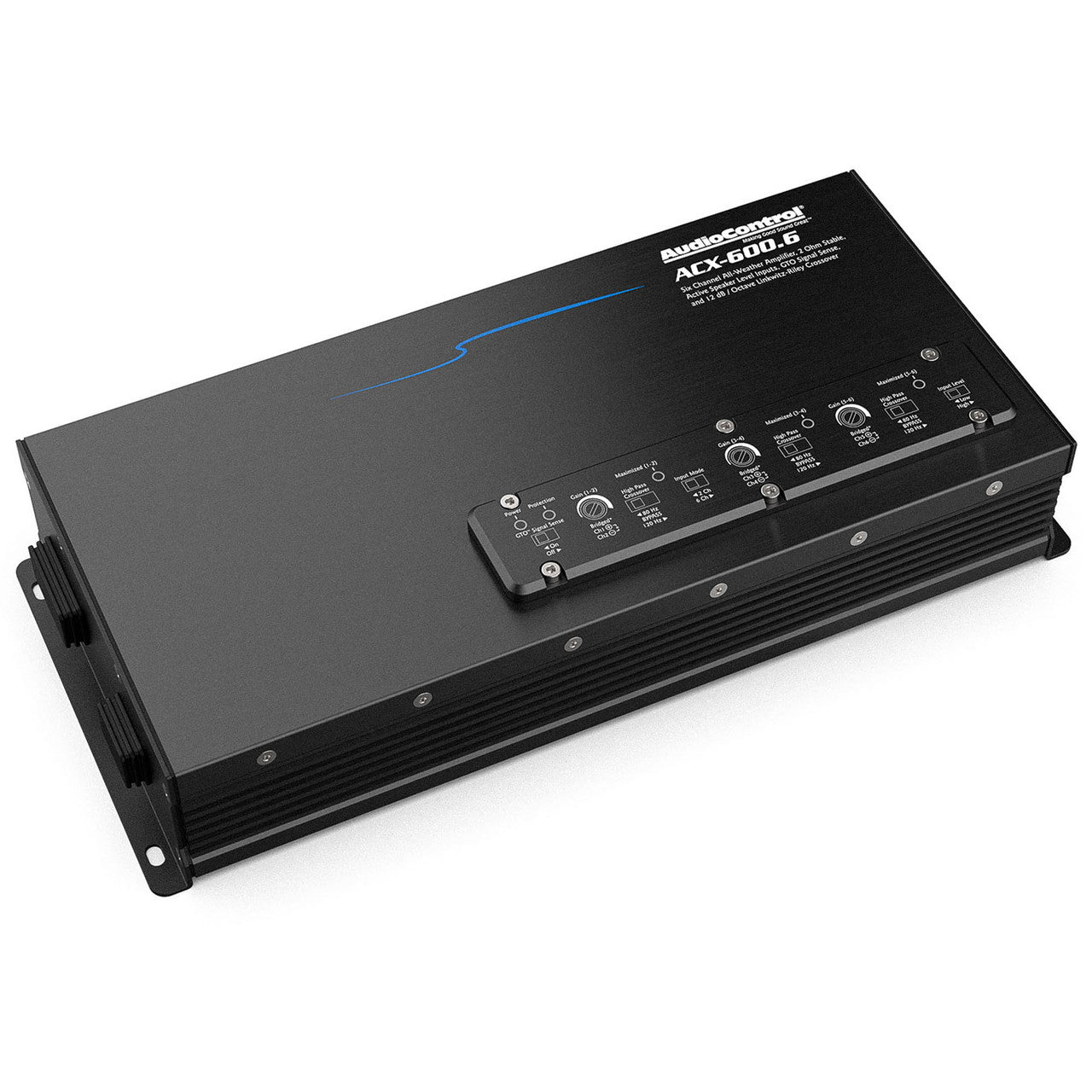

Audio Control ACX-600.6 All Weather 6-Channel Amplifier Car Audio Amplifier

Audio Control ACX-600.6 All Weather 6-Channel Amplifier Car Audio Amplifier

AudioControl - ACX-600.6

$559.00 USD
$670.99 USD $559.00 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audio Control ACX-600.6 All Weather 6-Channel Amplifier Car Audio Amplifier

Inject unmatched dynamics, tight thermal control, and high-fidelity overhead into your sound system with this advanced AudioControl power amplifier. Built for pristine acoustic transparency, it handles heavy loudspeaker network current adjustments with low distortion, elevating your cabin soundstage to concert-quality levels.

Product Overview & Core Highlights:

AudioControl’s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.

Features -
• 6 x 50 watts @ 4 ohms
• 6 x 100 watts @ 2 ohms
• 3 x 200 watts @ 4 ohms, bridged mono
• IPX6 Rated
• GTOTM Signal Sense
• High and low input modes
• Linkwitz-Riley Crossover
• Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Inputs -
• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs -
• Rated Continuous (RMS) Power at 14.4V:
• 4 Ω – 50 W x 4
• 2 Ω – 100 W x 4 • Bridged 4 Ω – 200 W x 3

Performance -
• Frequency Response: 26 Hz – 22 kHz • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm • THD+N: < 0.05% • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass • IP Rating: IPX6

🚨 Critical Performance Specifications:

  • Product Component Classification: High-Current multi-channel or sub-bass 6-Channel Full Range Array Amplifier
  • Continuous Power Handling Output (RMS): 500 Watts RMS @ 2 Ohms / 800 Watts RMS @ 1 Ohm stable
  • Amplifier Circuit Design Class: High-Efficiency Class-D or Class-AB Architecture
  • Integrated Digital Signal Processor (DSP): No
  • Signal Level Input Adaptability Handling: Up to 40V Speaker-Level inputs with switchable load resistors
  • Signal-to-Noise Ratio (SNR): >102dB relative to rated output capacity
  • Total Harmonic Distortion (THD): <0.01% for elite audiophile tracking presence
  • Total Package Boxed Shipping Weight: 5.4 lbs
