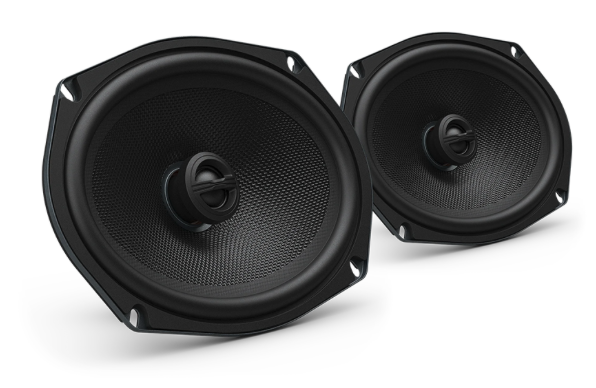

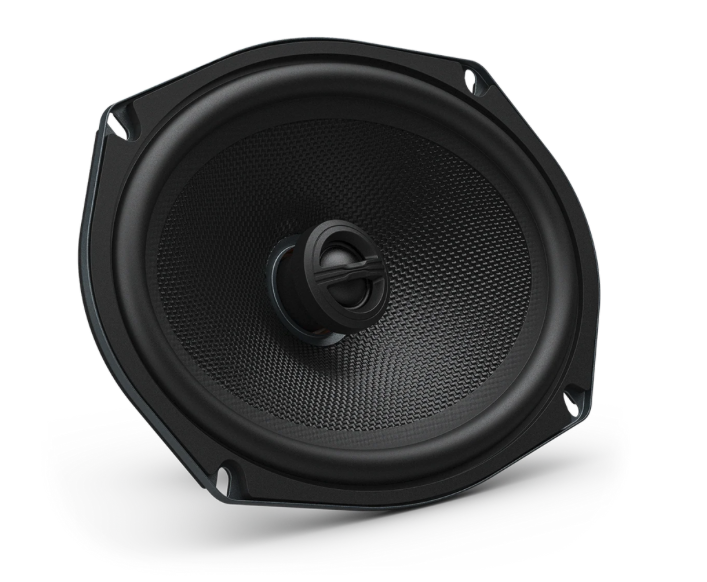

Audio Control Altitude Series 6x9" Coaxial Speakers 100W RMS, 4 Ohms (Pair): A69

The Altitude Series Speakers are crafted for clarity, control, and depth, starting with a precision-molded glass fiber cone that delivers warm, accurate sound. A durable butyl rubber surround keeps low-frequencies responsive, while a silk dome tweeter adds a smooth, detailed finish to every high note. A coaxial speaker is an integrated speaker system that combines a midbass/woofer driver with a centrally mounted tweeter on a shared axis. This design enables accurate reproduction of both low and high frequencies from a single speaker location, offering an efficient and streamlined upgrade for OEM audio systems.

Features

• Coaxial Speakers: Combines the tweeter and woofer into a single unit for a full-range sound
• Precision-Molded Glass Fiber Cone: Delivers warm, accurate sound reproduction
• Durable Butyl Rubber Surround: Improves low-frequency performance and control
• Silk Dome Tweeter: Ensures smooth, detailed high frequency response

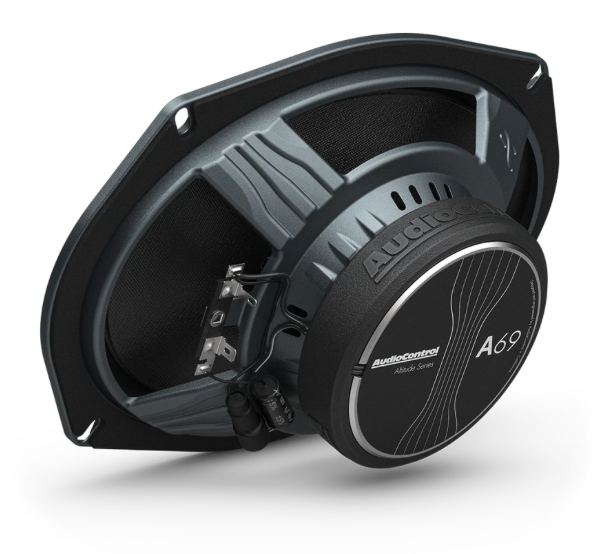

• Structurally Enhanced Steel Slimline Basket: Allows for easy, space-saving Installation
• Optimized System Efficiency: Fewer components and signal paths reduce overall system complexity and power draw.
• Designed and Engineered in USA: Experience the excellence of American ingenuity

Specs

• Power (RMS): 100 Watts
• Impedance: 4 Ohms
• DC Resistance (Re): 3.3 ohms
• Voice Coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
• System Frequency Response: 55 Hz to 20,000 Hz
• Sensitivity*: 86.5 dB 1W / 1 M | 89.5 dB @ 2.83 V / 1 M

Dimensions

• Overall Diameter (A): 6.43 x 9.27 in / 163.5 x 235.5 mm
• Cut Out Diameter (B): 5.67 x 8.23 in / 144 x 209 mm
• Mounting Depth (C): 2.67 in / 68 mm
• Total Depth (D): 2.91 in / 74 mm
