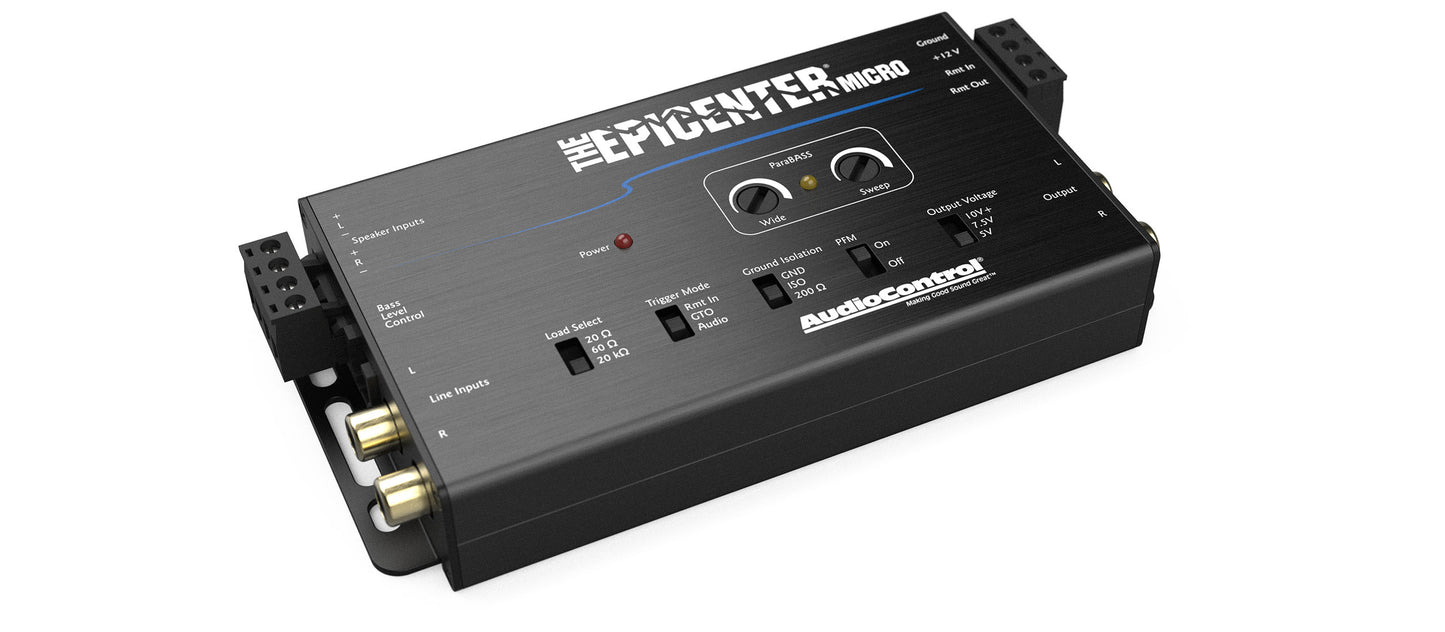

Audio Control Bass Restoration Processors The Epicenter Micro

Audio Control Bass Restoration Processors The Epicenter Micro

Experience audiophile-grade acoustic mastery and absolute signal purity with this premium AudioControl processing unit. Engineered for serious car audio systems, it features advanced electrical architecture designed to eliminate factory bass roll-off, reconstruct lost frequencies, and deliver crystal-clear, high-voltage signal transmission to your amplifiers.

Product Overview & Core Highlights:

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

Features:

• Patented Digital Bass Restoration
• ParaBASS® Bass Shaping
• Speaker and Line Level Inputs
• Load Matching Circuit
• Multiple Trigger Modes
• ACR-4 Dual Knob Dash Mount Control Included

🚨 Critical Performance Specifications:

• Product Classification Core: Digital Parametric Sub-Bass Reconstruction Restoration Processor
• Maximum Pre-Amp Output Level: 9.5V RMS Peak Output Line Driver
• Maximum Input Signal Handling: Up to 40V Speaker-Level Input Capacity
• Parametric Sub-Bass Control Architecture: Adjustable Center Frequency 'Sweep' & Bandwidth 'Wide' Control
• Subsonic Transducer Protection: Programmable PFM Subsonic Filter (Protects raw woofers from over-excursion)
• Frequency Response Profile: 10Hz – 100kHz
• Total Harmonic Distortion (THD): <0.003% for pure, uncolored sub-bass tracking
• Signal-to-Noise Ratio (SNR): >130dB for an absolute zero-hiss background environment
• Wired Remote Accessories: Dash-mountable wired remote control knob terminal included
• Total Package Boxed Shipping Weight: 0.6 lbs
