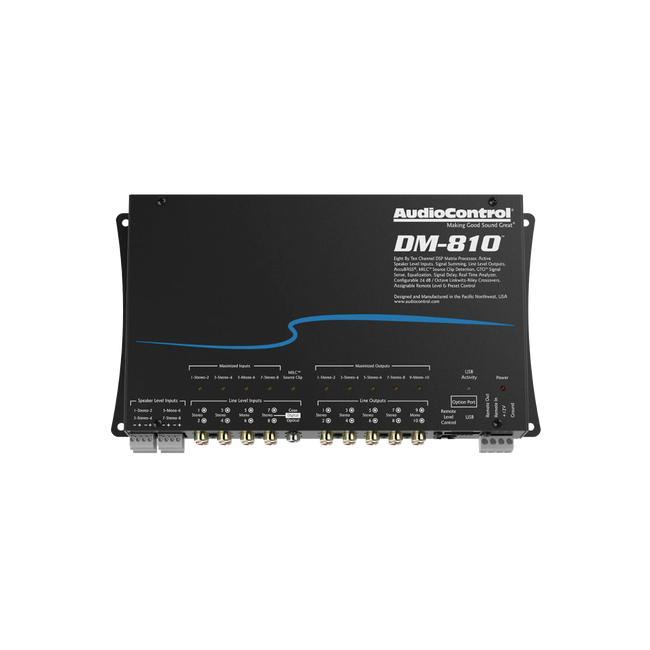

Audio Control DM-810 Performance Digital Signal Processor with EQ, Crossover and

Audio Control DM-810 Performance Digital Signal Processor with EQ, Crossover and

Experience audiophile-grade acoustic mastery and absolute signal purity with this premium AudioControl processing unit. Engineered for serious car audio systems, it features advanced electrical architecture designed to eliminate factory bass roll-off, reconstruct lost frequencies, and deliver crystal-clear, high-voltage signal transmission to your amplifiers.

Product Overview & Core Highlights:

When you require total control and optimization to achieve great sound quality, AudioControl’s DM-810 Processor is the solution.

The powerful DM-810 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s DM Smart DSP app (available as a free download) contains the power of AudioControl processing through a flexible interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.

The built in Option Port on the DM-810 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.

Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in car audio systems.

DM SMART APP

Connect your laptop to the DM-810 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.

Route any input to any output, adjust gain, delay and polarity then precisely tune the DM-810 using a 30 band EQ. High-pass, low-pass and band-pass can be set up for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers.

For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.

With a clear GUI and intuitive workflow, AudioControl’s Smart User Interface will take the guesswork out of tuning your system to your exact specifications.

DM Smart App download for Mac & PC

DM Smart App via Appstore iOS & Android

(*Note: Uninstall old DM software firmware before updating to the new version)

User Manual

FEATURES

• Input and Output RTA for precise and informed tuning
• GTOTM Signal Sensing
• MILCTM Clip Detection
• AccuBASS®
• Signal Summing
• Signal Delay
• 12 and 24 dB/octave crossovers
• 30 band equalizer
• Optional ACR-3 remote for preset recall and level control
• Optional AC-BT24 Bluetooth Streamer/Programmer
• DM Smart DSP app available in downloads for Mac/PC or

🚨 Critical Performance Specifications:

• Product System Architecture: Performance Digital Signal Processor (DSP) Matrix Network
• Audio Routing Footprint: 8 Inputs / 10 Outputs Discrete Signal Configuration
• Software Customization Framework: AudioControl DM Smart DSP App Compatible Suite (PC/Mac/iOS/Android via option cards)
• Acoustic Tuning Parameters: 30-Band Graphic EQ alignment, fully variable Parametric Filter nodes, and Phase controls
• Signal Delay Tuning Time: Precise micro-second alignment delay matrix mapping per output line
• Crossover Network Filters: Independent variable High-Pass, Low-Pass, and Band-Pass slopes (Linkwitz-Riley 12dB/24dB)
• Real-Time Frequency Analysis: Built-in RTA signal metrics analyzer for live frequency tracking feedback
• Signal-to-Noise Ratio (SNR): >110dB for studio-grade acoustic performance
• Total Package Boxed Shipping Weight: 5.0 lbs
