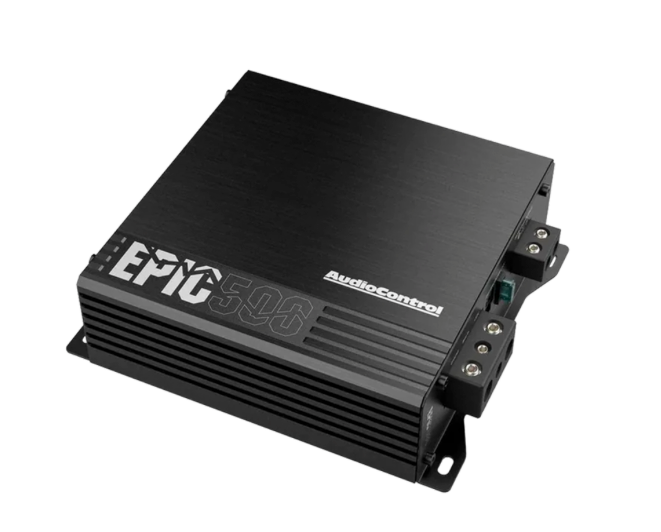

Audio Control EPIC Series Monoblock Amplifier-500W RMS: EPIC500

EPIC Series Monoblock Amplifier - 500W RMS

The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your customers bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.

Key Features:

• Compact High-Power: Class D Amplifier
• High-Current Design: 1 ohm stable
• Smart Auto Reset: Protection Circuit
• 12 dB/octave Linkwitz-Riley: Low Pass Filter
• 12 dB/octave Variable: Subsonic Filter

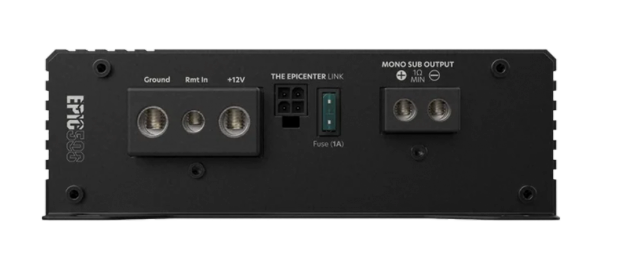

• Solid Power/Speaker Terminals: w/Hex Screws
• EPICENTER Link: Connect to The EPICENTER
• EPIC Boost: Variable Frequency Bass Boost
• ACR-E Remote Control Knob: Included

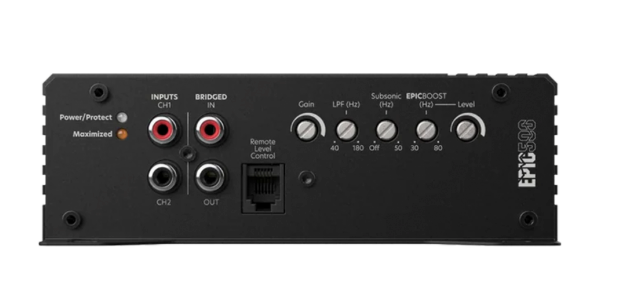

Features:

• Class D Monoblock Amp: Powerful yet compact, designed to handle 1 ohm loads for high output at 500W RMS.
• EPICENTER Link: Seamlessly connect your EPIC amplifier with The EPICENTER bass restoration processor for an unbeatable bass experience.
• EPIC Boost Variable Frequency Bass Boost: Enhance your customers bass by amplifying the low frequencies that uplift their life to the max.
• ACR-E Remote Control Knob: Adjust your customers sound effortlessly with the included ACR-E Remote Control knob, giving your customers full control at their fingertips.

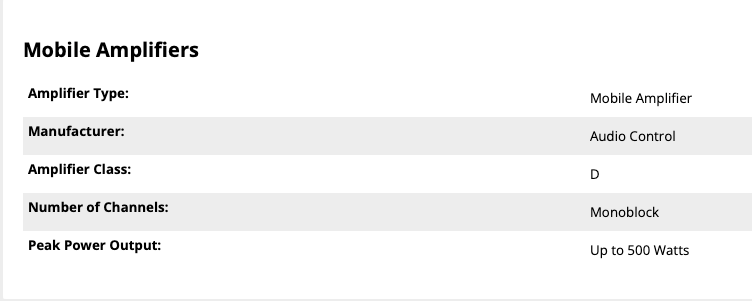

Specifications:

• Line Level Inputs: 500mV – 12V RMS
• Output RMS @ 14.4V:1x250W @ 4 ohms; 1x350W @ 2 ohms; 1x500W @ 1 ohm
• Output RMS @ 14.4V:1x1000W @ 2 ohms Bridged (Strapped)
• Frequency Response: 10 Hz – 190 Hz
• S/N Ratio: 94 dBa, Ref 400 Watts @ 4 ohms
• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 80 Amps
• Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
• Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
• EPIC Boost: Frequency Center: 30 Hz to 80 Hz; Gain: 0 to 12 dB
• Speaker Terminal Wire Gauge: 8 AWG
• Strapable
• Epicenter Link Included
• ACR-E Remote Control Knob Included
