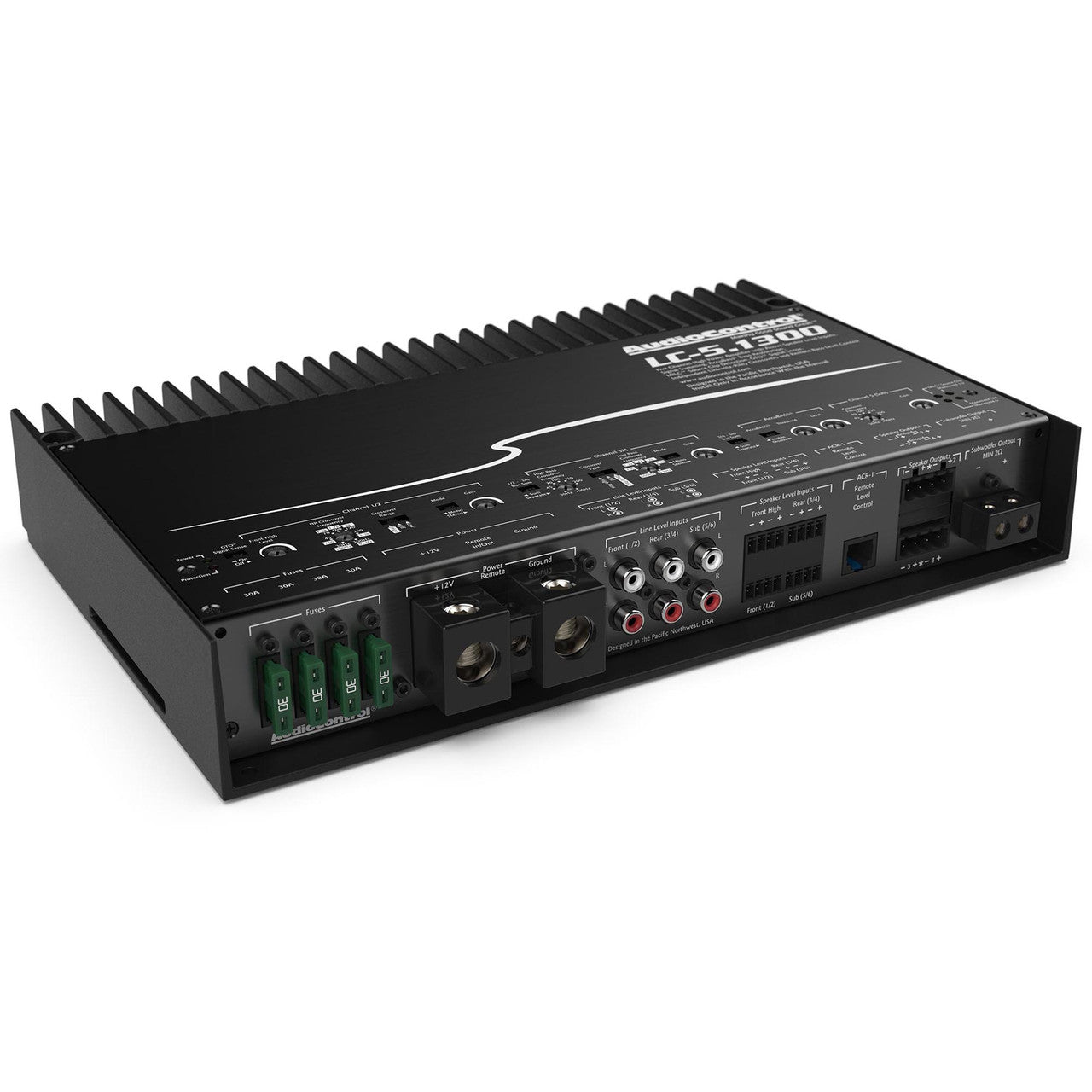

Audio Control LC-5.1300 High-power Multi-channel Amplifier With Accubass®
Audio Control LC-5.1300 High-power Multi-channel Amplifier With Accubass®
Audio Control
Regular price
$899.95 USD
Regular price
$999.99 USD
Sale price
$899.95 USD
Unit price
/
per
Shipping calculated at checkout.
Universal Fit
This product may require modification.
Pickup available at 3287 Library Road
Usually ready in 2-4 days
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
Features
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
3-way Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
PFM Subsonic Filter
Optional ACR-1 assignable remote control
Solid One-Piece Aluminum Chassis
Specifications
Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W
Performance
Frequency Response: 20 Hz – 22 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 4 x 30 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
Weights & dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2lbs. (3.3kg)
In the box: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
Features
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
3-way Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
PFM Subsonic Filter
Optional ACR-1 assignable remote control
Solid One-Piece Aluminum Chassis
Specifications
Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W
Performance
Frequency Response: 20 Hz – 22 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 4 x 30 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
Weights & dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2lbs. (3.3kg)
In the box: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
