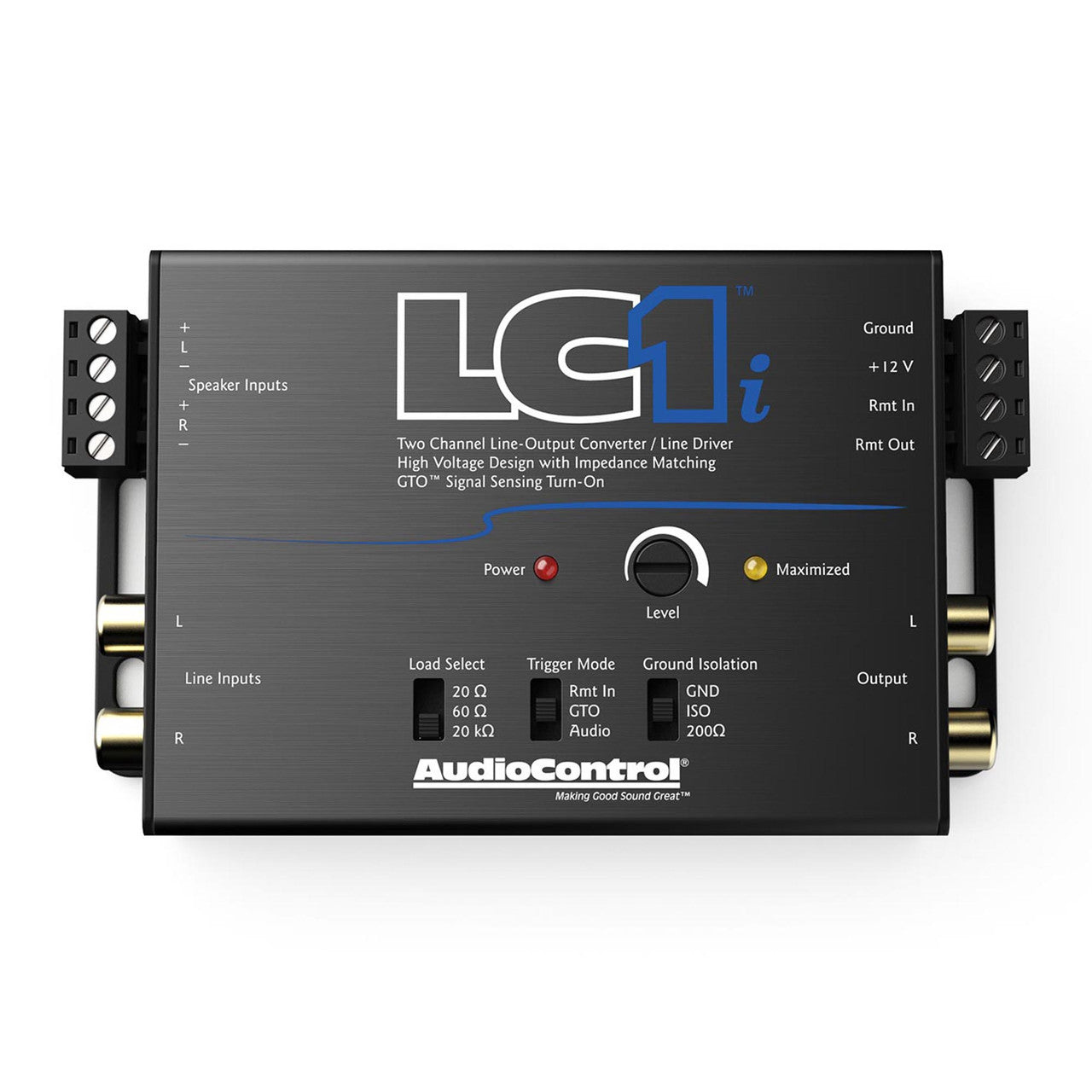

Audio Control LC1I Active 2-Channel Line Driver/Output Converter with Impedance

Audio Control LC1I Active 2-Channel Line Driver/Output Converter with Impedance

AudioControl - LC1I

$74.99 USD
$93.74 USD $74.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audio Control LC1I Active 2-Channel Line Driver/Output Converter with Impedance

Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.

Product Overview & Core Highlights:

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.

Features
Two channels of active speaker level inputs (up to 40V input handling)
Two channels of line level inputs
Load Selection Switch
GTOTM Signal Sensing
Ground Isolation Switch
Compact design

Specifications
Inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kΩ
Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150Ω
Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB
Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
General
Current Draw: 120 mA
Recommended Fuse Rating: 1 A
Weights & Dimensions
Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
Weight: 0.55 lbs. (0.25 kg)
In the Box: LC1i, Speaker and Power connectors, Manual, Warranty

🚨 Critical Performance Specifications:

  • Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
  • Input Signal Capacity Layout: 2-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
  • Pre-Amp Output Configuration: 2-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
  • Bass Integration Protection: No
  • Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
  • Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
  • Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
  • Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
  • Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
  • Total Package Boxed Shipping Weight: 0.6 lbs
