Audio Control LC2I Channel Line Out Converter with Accubass and Subwoofer Contro

Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.

Product Overview & Core Highlights:

Audio Control LC2i 2 Channel Line Out Converter with Accubass and Subwoofer Control

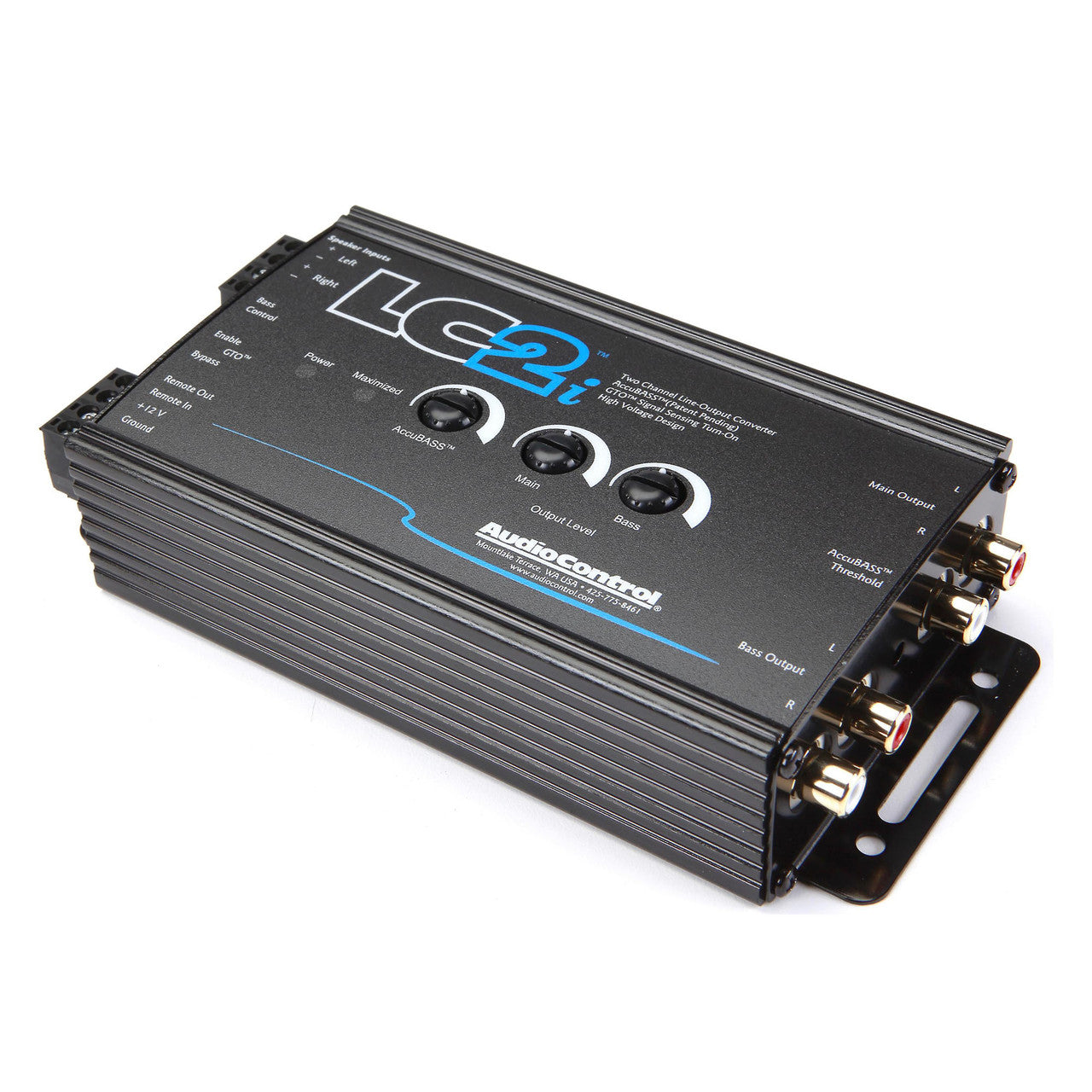

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls. FEATURES Two channels of Active speaker level inputs – Accept 400 watt signals per channel Fixed and variable outputs with discrete level controls AccuBASS® processing for correction of bass roll-off GTOTM Signal Sensing Input For Optional Remote Level Control Compact design FAQ Does the LC2i require power? Yes, the LC2i is an active line output converter and should be connected to the battery for constant 12 V and to your common ground for after market amps and processors. Do I need to find a remote turn on lead? No, the LC2i has GTO Signal Sensing, which will turn the unit on when it detects signal at the input from your factory amp/powered head unit. For more in depth installation help, check out our FAQ on Facebook (Facebook membership not required): LC2i FAQ

🚨 Critical Performance Specifications:

  • Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
  • Input Signal Capacity Layout: 2-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
  • Pre-Amp Output Configuration: 2-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
  • Bass Integration Protection: Yes (Patented AccuBASS® Bass Roll-Off Compensation Circuitry)
  • Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
  • Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
  • Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
  • Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
  • Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
  • Total Package Boxed Shipping Weight: 5.0 lbs
