Audio Control LC2I-Pro Channel Line Out Converter with Accubass and Subwoofer Co
Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.
Product Overview & Core Highlights:

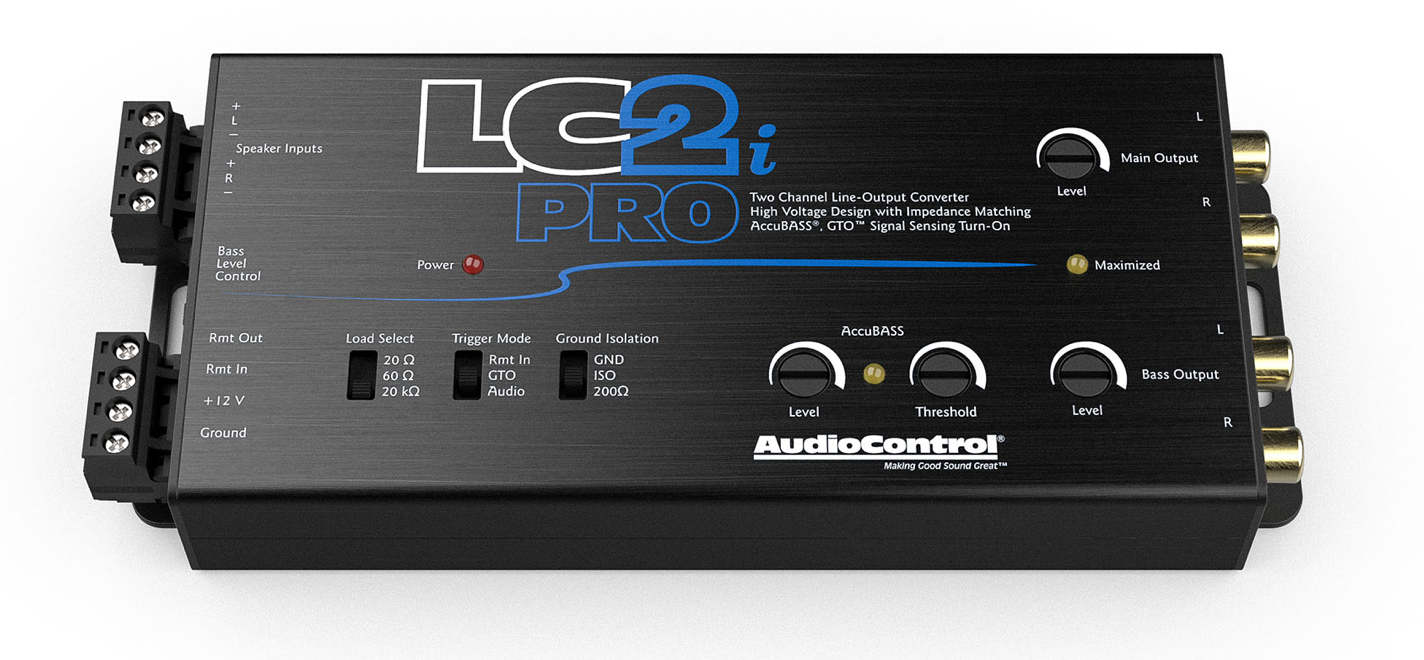

Audio Control LC2I-Pro Channel Line Out Converter with Accubass and Subwoofer Control
2 channel line out converter with accubass®
The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS® and control your sub with the included ACR-1 level control.
features
- Two channels of active speaker level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote inluded
- Compact design
🚨 Critical Performance Specifications:
- Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
- Input Signal Capacity Layout: 2-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
- Pre-Amp Output Configuration: 2-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
- Bass Integration Protection: Yes (Patented AccuBASS® Bass Roll-Off Compensation Circuitry)
- Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
- Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
- Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
- Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
- Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
- Total Package Boxed Shipping Weight: 5.0 lbs
