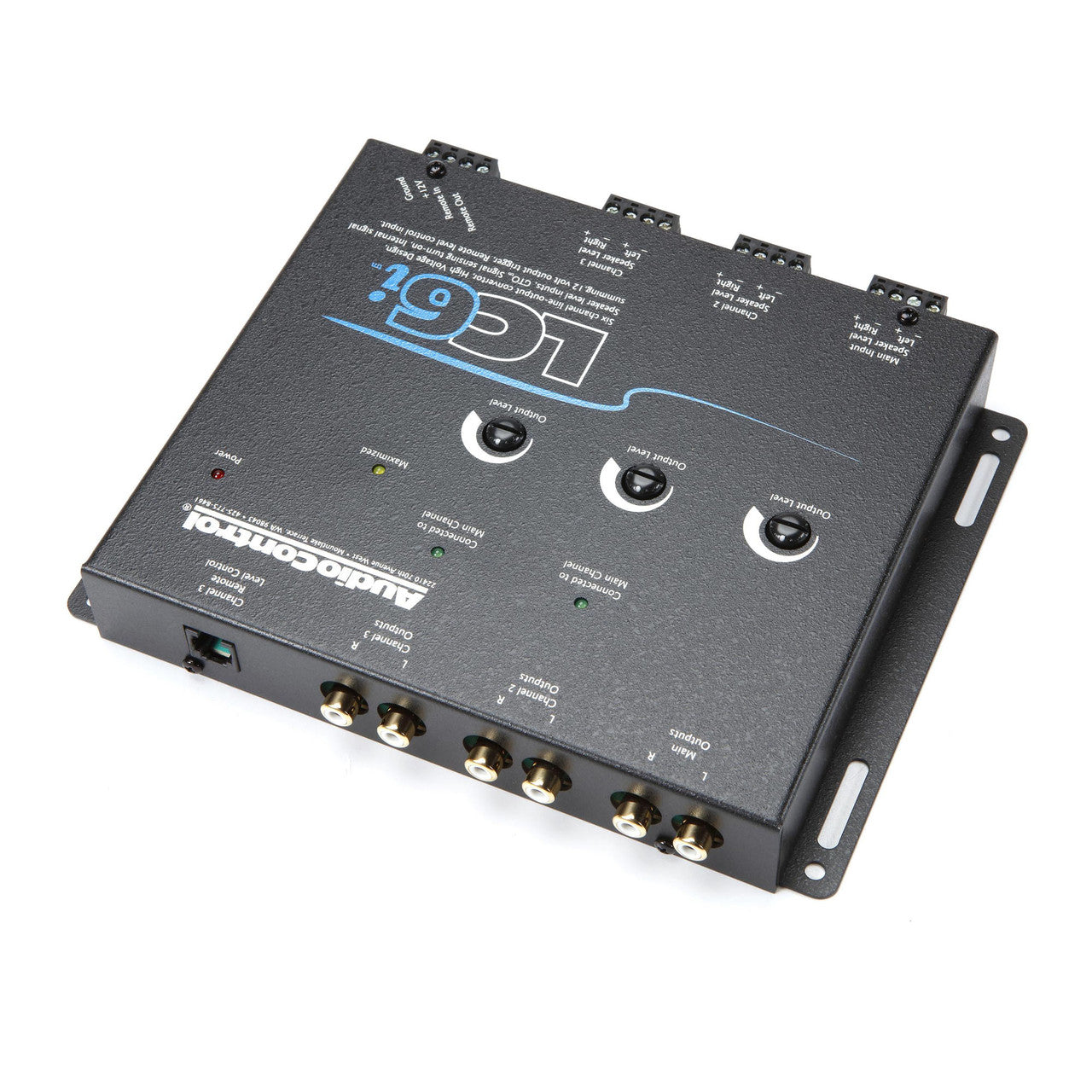

Audio Control LC6I 6 Channel Line Out Converter Line Out Converter
Audio Control LC6I 6 Channel Line Out Converter Line Out Converter
AudioControl - LC6I
Regular price
$149.99 USD
Regular price
$187.49 USD
Sale price
$149.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Audio Control LC6I 6 Channel Line Out Converter Line Out Converter
Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.
Product Overview & Core Highlights:
Audio Control LC6i 6 Channel Line Out ConverterAudioControl continues to simplify OEM integration with the new LC6i Six Channel Line Output Converter with internal summing. The LC6i is built on the same technology as its predecessor, the LC6. The LC6i converts speaker level inputs from a factory radio or factory amplifier into high-quality pre-amp signals. The addition of internal summing capabilities and improved GTO™ signal-sense turn-on make the LC6i the perfect way to solve your OEM headaches. The LC6i allows for the addition of aftermarket processors and amplifiers while maintaining use of the factory volume and steering wheel controls. Internal signal summing and AudioControl’s new GTO™ signal-sense turn-on make the LC6i a perfect OEM interface for a performance audio system. The LC6i follows in the steps of the rampantly successful LC8 Eight Channel Line Output Converter, offering all of the same features for 6 channel systems at a reduced price. The LC6i accepts speaker level signals, both crossed-over and full range, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be overcome by summing them together, internally, to provide a full-range preamp signal. The LC6i provides the type of clean pre-amp signals installers are familiar with. Those who desire custom control over the sound can easily add one of AudioControl’s many crossovers or equalizers which offer unlimited system design flexibility, clearly different than traditional OEM interfaces. FEATURES High Current 12-Volt Trigger Output Internal Channel Summing GTO™ Signal Sensing Inputs Speaker Level Inputs – Can Accept 400 Watt Signals! Level Matching Controls Six Input and Output Channels AutoMode™ Turns 4-channel Input into 6-channel Output Input for Optional Subwoofer Level Control
🚨 Critical Performance Specifications:
- Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
- Input Signal Capacity Layout: 6-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
- Pre-Amp Output Configuration: 6-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
- Bass Integration Protection: No
- Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
- Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
- Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
- Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
- Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
- Total Package Boxed Shipping Weight: 5.0 lbs
