Audio Control LC8I 8 Channel Line Out Converter with Auxiliary Input
Audio Control LC8I 8 Channel Line Out Converter with Auxiliary Input
AudioControl - LC8I
Regular price
$269.99 USD
Regular price
$323.99 USD
Sale price
$269.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

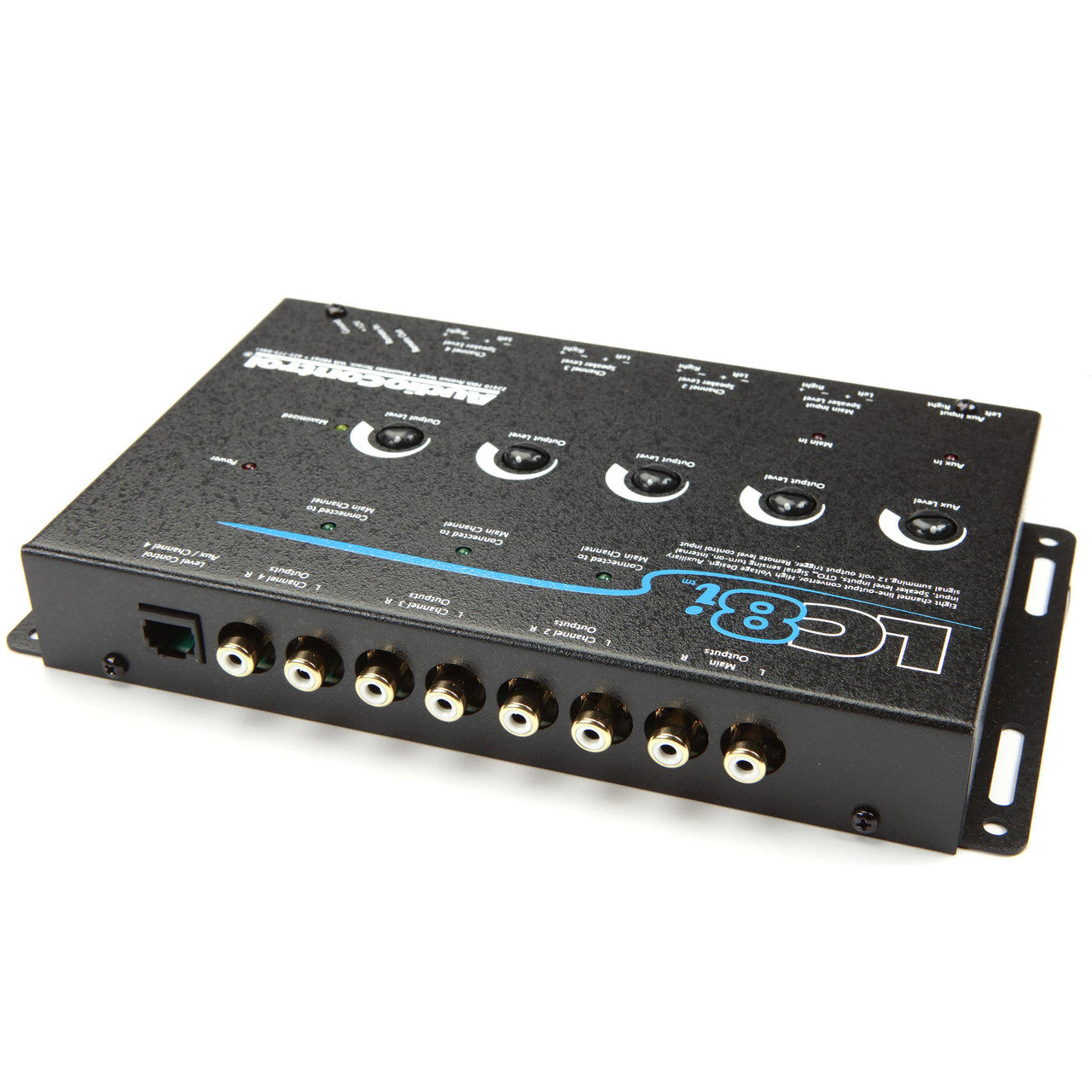

Audio Control LC8I 8 Channel Line Out Converter with Auxiliary Input
Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.
Product Overview & Core Highlights:
Audio Control LC8i 8 Channel Line Out Converter with Auxiliary InputThe LC8i is a highly flexible eight-channel signal processor with active input circuitry that accepts speaker-level inputs, of up to 400 watts per channel, from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to aftermarket processors and/or amplifiers. This means users will enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls. Designed for maximum flexibility, the LC8i is equipped with an auxiliary input that allows the simple addition of secondary source units like iPods and satellite radio tuners. By tapping the dash control knob, a user can switch back and forth between the main speaker-level inputs and the auxiliary input. Additionally, the multi-function dash knob provides both volume control of the Auxiliary input and level adjustments for the subwoofer output. The LC8i uses proven OEM integration technology derived from AudioControl’s highly popular LC6i, LC7i and The Epicenter® Plus signal processors. The speaker-level inputs accept high wattage signals (up to 400 watts per channel), either full range or crossed over, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be summed and combined internally to provide a full-range preamp signal. Customers wanting to offer sound quality that is clearly better than OEM systems can also easily add one of AudioControl’s many crossovers or equalizers after the LC8i, providing even greater control over factory signals. FEATURES Eight input and output channels – will accept 400 watt signals per channel Auxiliary input for easy interfacing of iPods or other portable audio devices Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control Selectable GTO™ Signal-sensing Turn-on Circuit
🚨 Critical Performance Specifications:
- Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
- Input Signal Capacity Layout: 8-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
- Pre-Amp Output Configuration: 8-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
- Bass Integration Protection: Yes (Patented AccuBASS® Bass Roll-Off Compensation Circuitry)
- Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
- Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
- Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
- Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
- Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
- Total Package Boxed Shipping Weight: 5.0 lbs
