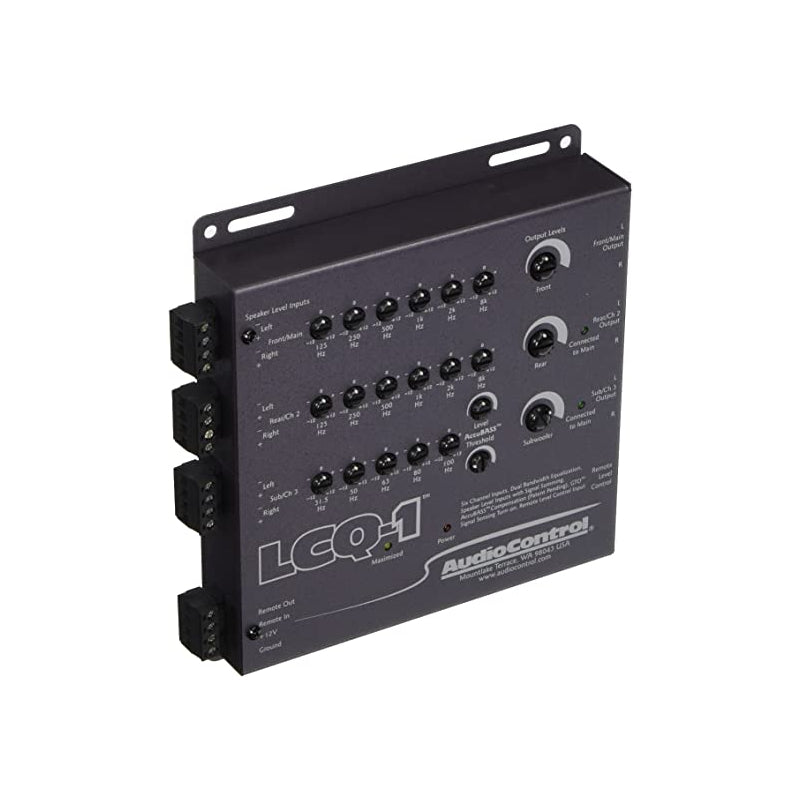

Audio Control LCQ-1 6-Channel Line Output Converter with Multi-Channel Equalizat

Audio Control LCQ-1 6-Channel Line Output Converter with Multi-Channel Equalizat

Upgrade your vehicle's integration infrastructure with the specialized precision engineering of AudioControl. Designed by audiophiles for installers, this high-performance audio component bridges the gap between your factory source unit and high-power aftermarket equipment for an optimal listening experience.

Product Overview & Core Highlights:

Features:

• GTO Signal
• Optional Dash Mount ACR-2 Level Control (sold separately)
• Six channels of active speaker level inputs
• Converter & AccuBASS Sensing turn-on system with remote out
• Independent front, rear and subwoofer equalization 6-Ch EQ
• Line Output
• AccuBASS (patent pending) to correct for factory bass roll-off
• Internal channel summing

Specifications:

• Remote In 12VDC Remote Out (always active when unit is on)
• Equalizer Frequencies (front/rear): 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
• Total Harmonic Distortion: 0.01%
• Output Gain: 12dB
• Output Impedance: 150Ohm
• Power Supply: High Headroom PWM Switching
• Input Impedance: 20kOhm
• Recommended Fuse Rating: 2A
• Preamp Outputs: 3 (6 channels)
• Frequency Response: 10Hz-22kHz
• Equalizer Frequencies (sub): 31.5Hz, 50Hz, 63Hz, 80Hz, 100Hz
• Speaker Level Inputs: 3 (6 channels)
• Maximum Input (speaker level): 400W per channel at 4Ohm
• Maximum Output Level: 7.5Vrms
• Current Draw: 350mA
• Dimensions: 6.0W x 5.9D x 1.2H
• Weight: 3.0lbs (1.4kg)

🚨 Critical Performance Specifications:

• Product Integration Core: Active OEM Speaker-Level Line Output Converter (LOC) & Line Driver
• Input Signal Capacity Layout: 6-Channel High-Power Speaker-Level Inputs (Up to 40 Volts RMS / 400W continuous)
• Pre-Amp Output Configuration: 6-Channel RCA Output channels (Delivers up to 9.5V RMS Peak output voltage)
• Bass Integration Protection: Yes (Patented AccuBASS® Bass Roll-Off Compensation Circuitry)
• Switchable Internal Load Selection Switch: 20 Ohms, 60 Ohms, or 20k Ohms (Bypasses factory smart-radio muting faults)
• Automated Turn-on Trigger Options: GTO™ Signal Sense (DC Offset), Audio Sense, or 12V Remote Wire Lead
• Frequency Response Response: 10Hz – 22kHz (+/- 1dB)
• Total Harmonic Distortion (THD): <0.01% for clean, uncolored factory radio integration
• Signal-to-Noise Ratio (SNR): >110dB (Ultra-low noise background floor layout)
• Total Package Boxed Shipping Weight: 4.0 lbs
