Audison - AVK 6 S II Kit | 250 W Peak Power | 165 mm (6.5 in.) | 4 ohm
Audison - AVK 6 S II Kit | 250 W Peak Power | 165 mm (6.5 in.) | 4 ohm
Audison - AVK 6 S II
Couldn't load pickup availability
Audison - AVK 6 S II Kit | 250 W Peak Power | 165 mm (6.5 in.) | 4 ohm
Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.
Product Overview & Core Highlights:
AVK 6 S II Kit | 250 W Peak Power | 165 mm (6.5 in.) | 4 ohm

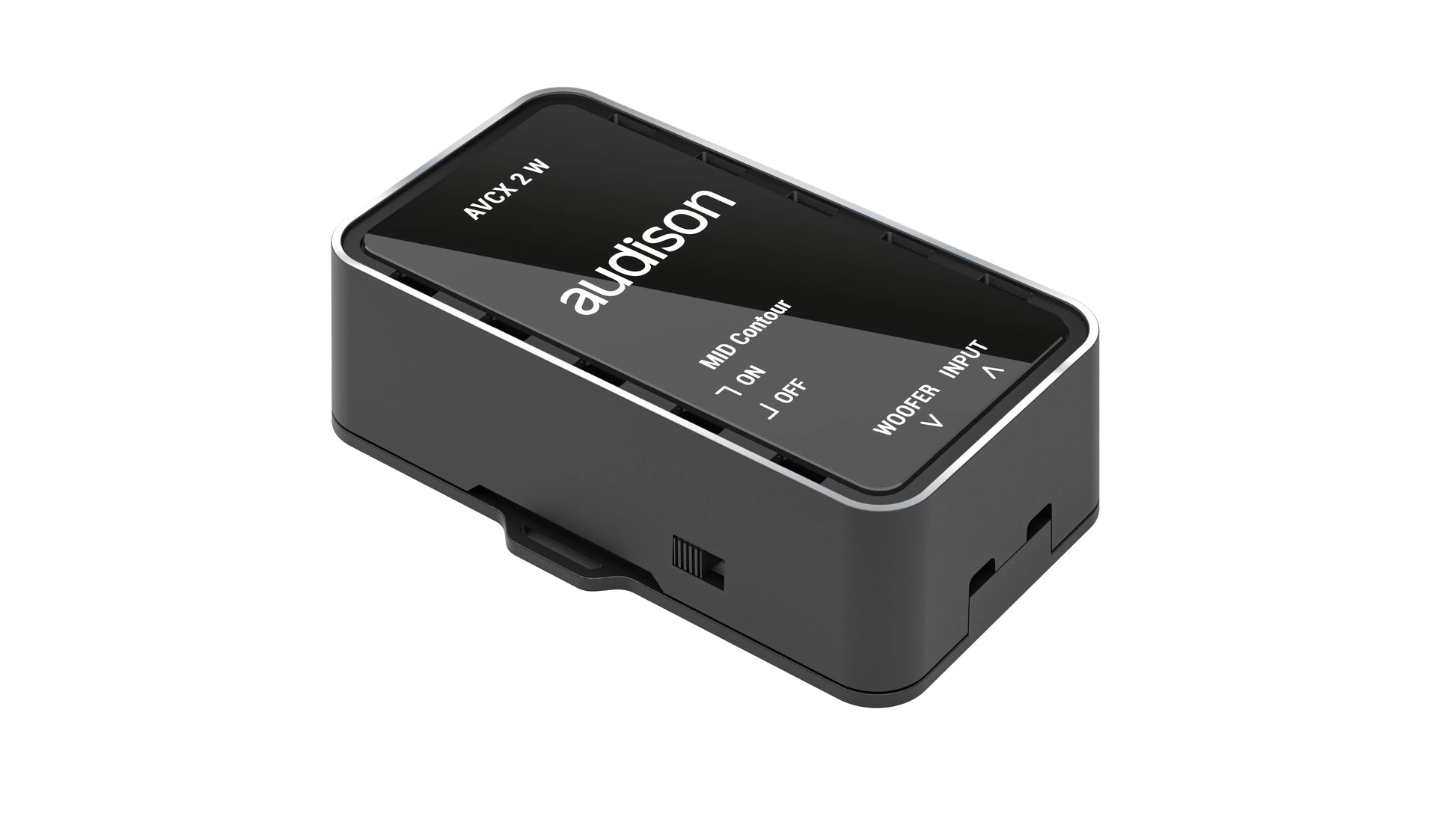

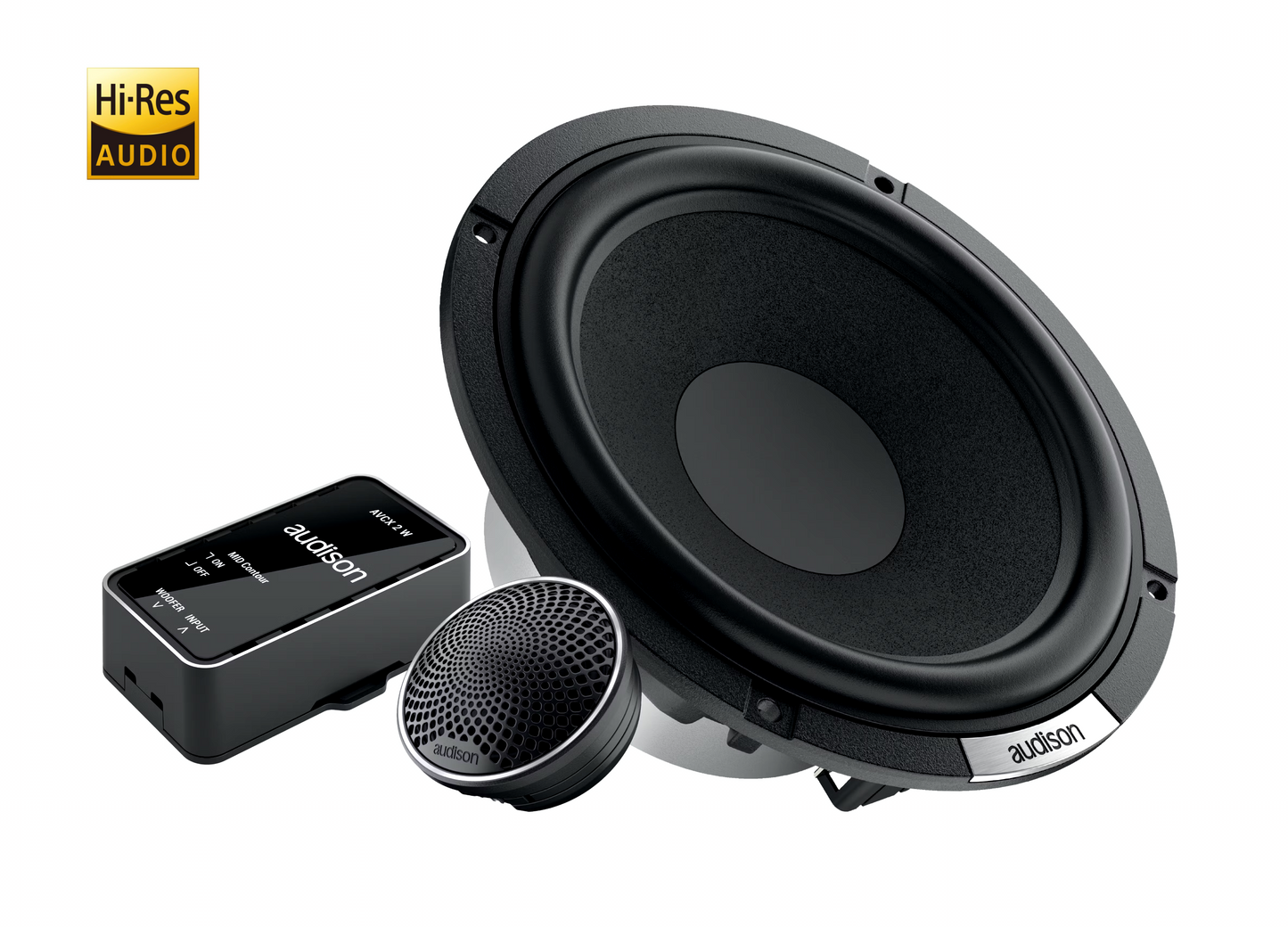

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.

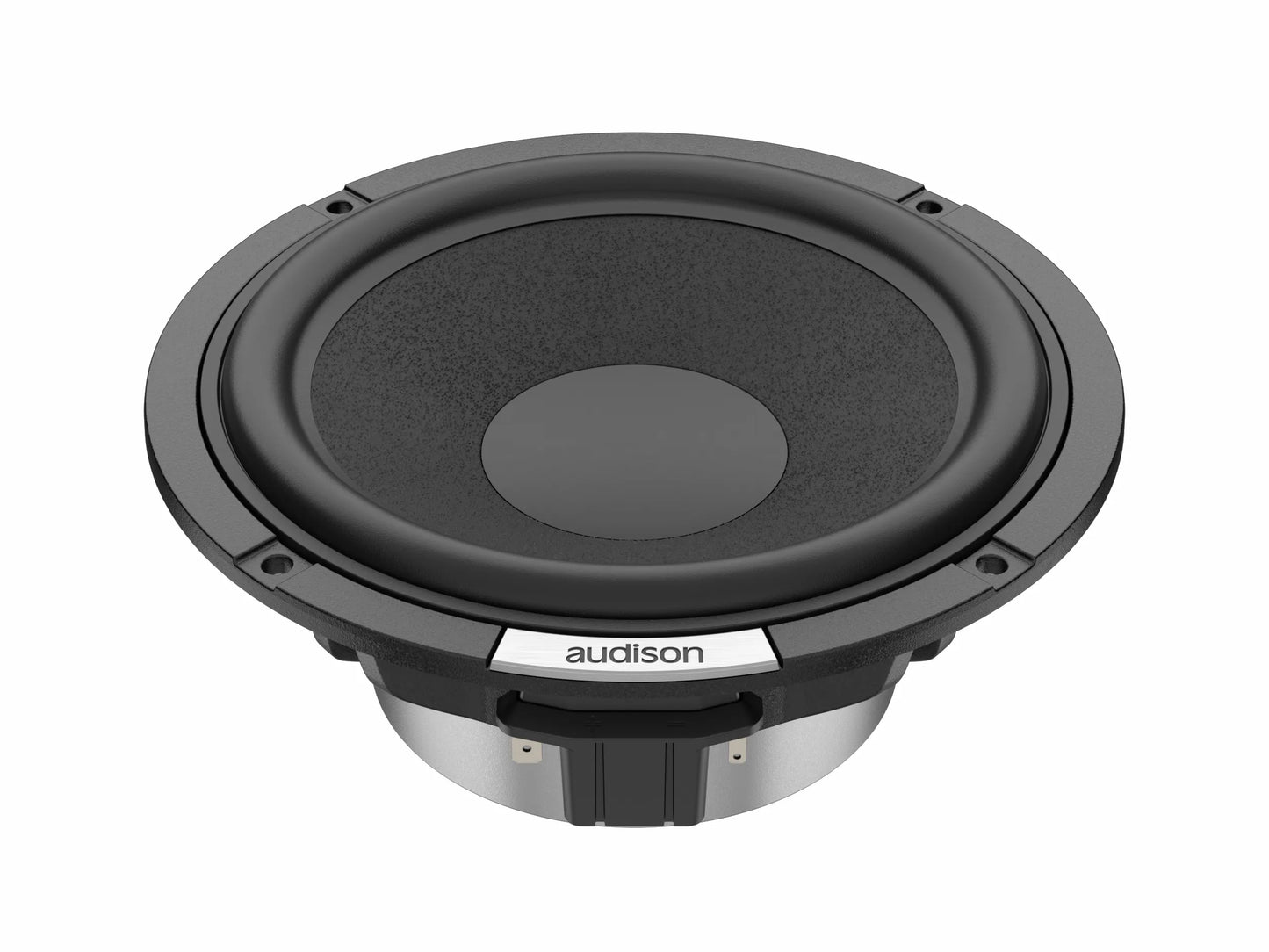

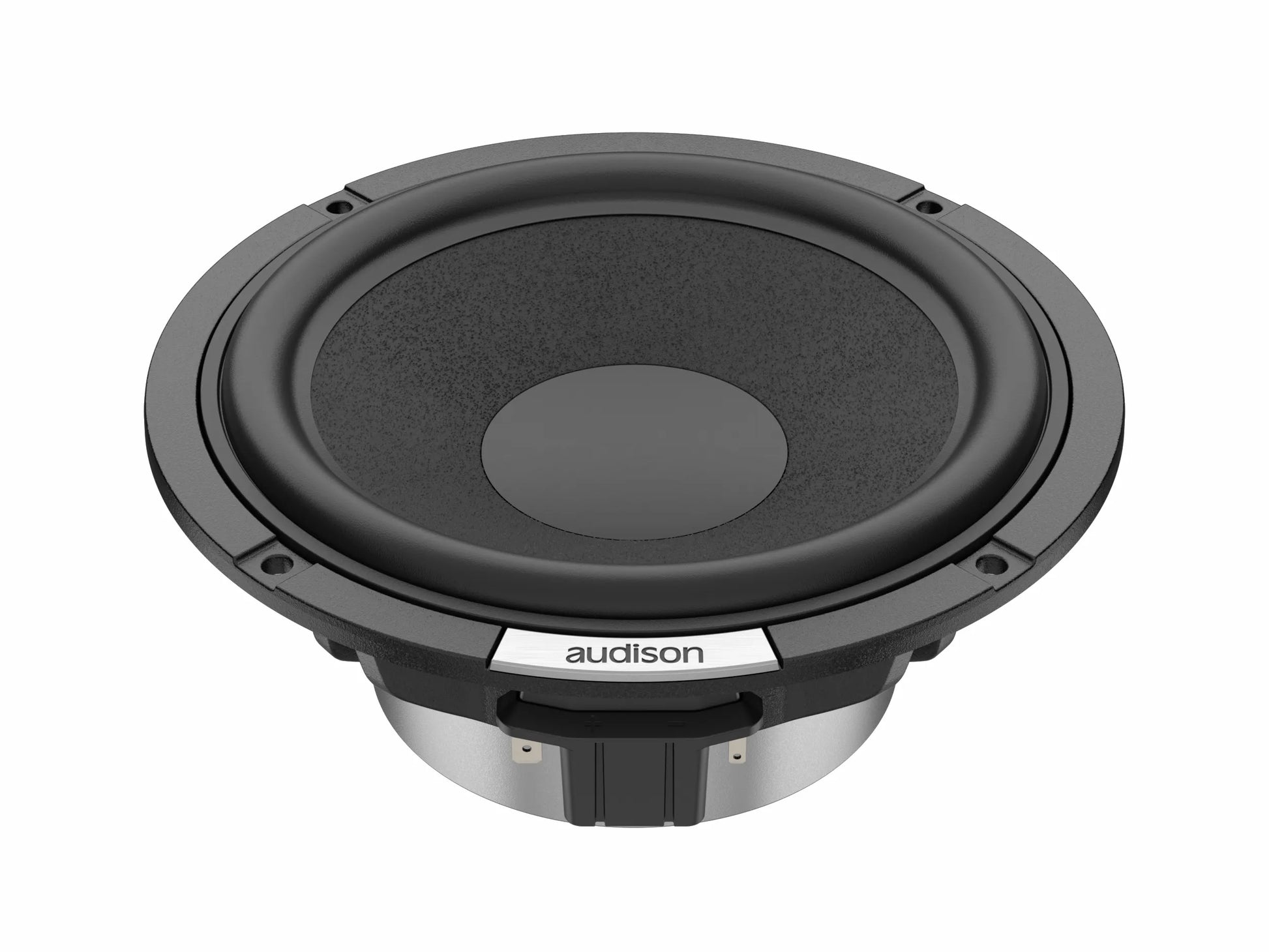

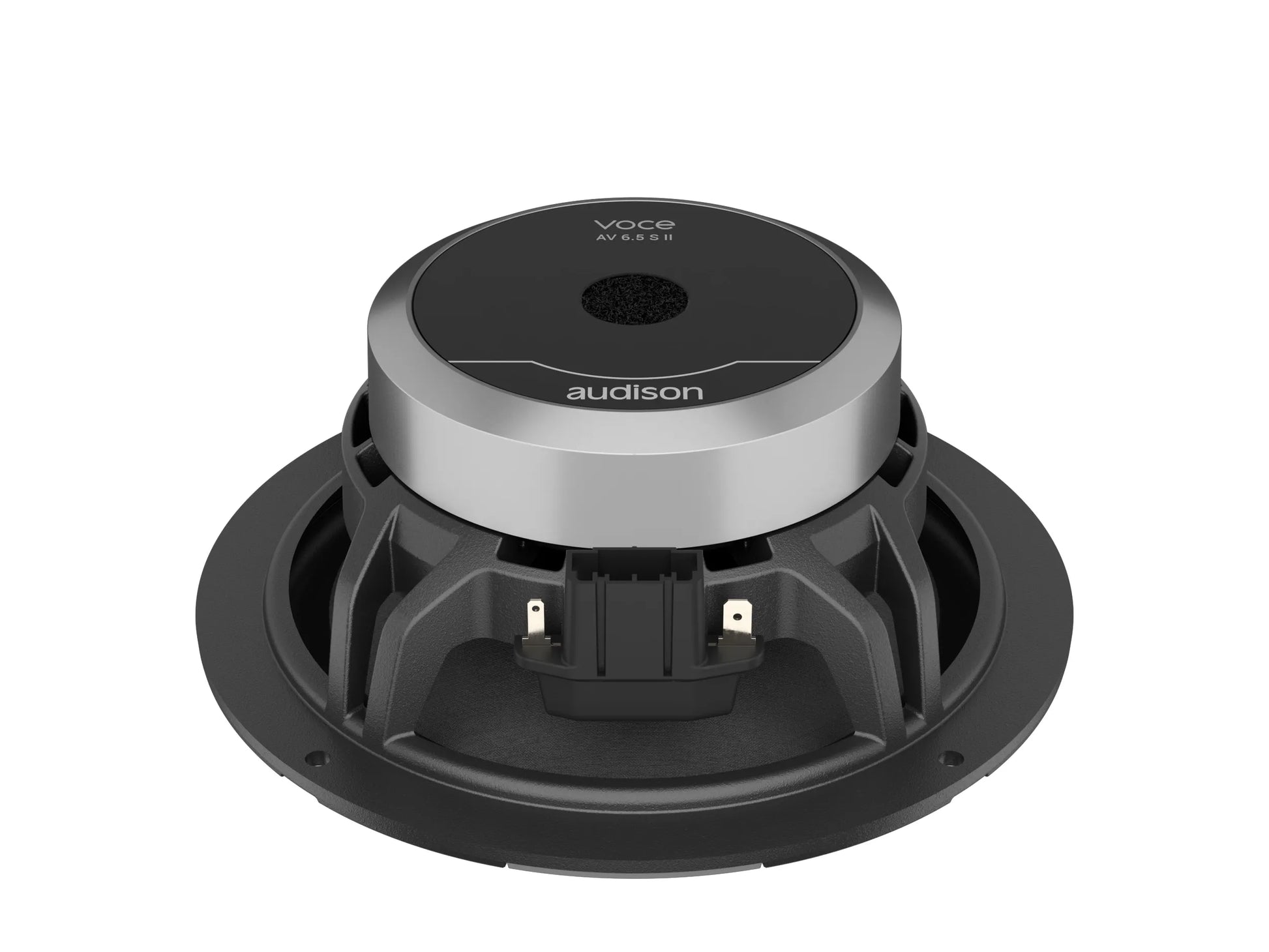

TECHNICAL SPECS LF
| Woofer Size | 165 mm |
| Impedance | 4 Ohm |
| Power Handling - Peak | 250 W |
| Power Handling - Continuous | 125 W |
| Frequency Response | 50 - 5500 Hz |
| (-6dB) | |
| Voice Coil Diameter | 36 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet Size | 92 x 42 x 15 mm |
| Cone Material | PRESSED PAPER CONE |
| Crossover Type | Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.) |
| Crossover Level Adjustment | AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off |

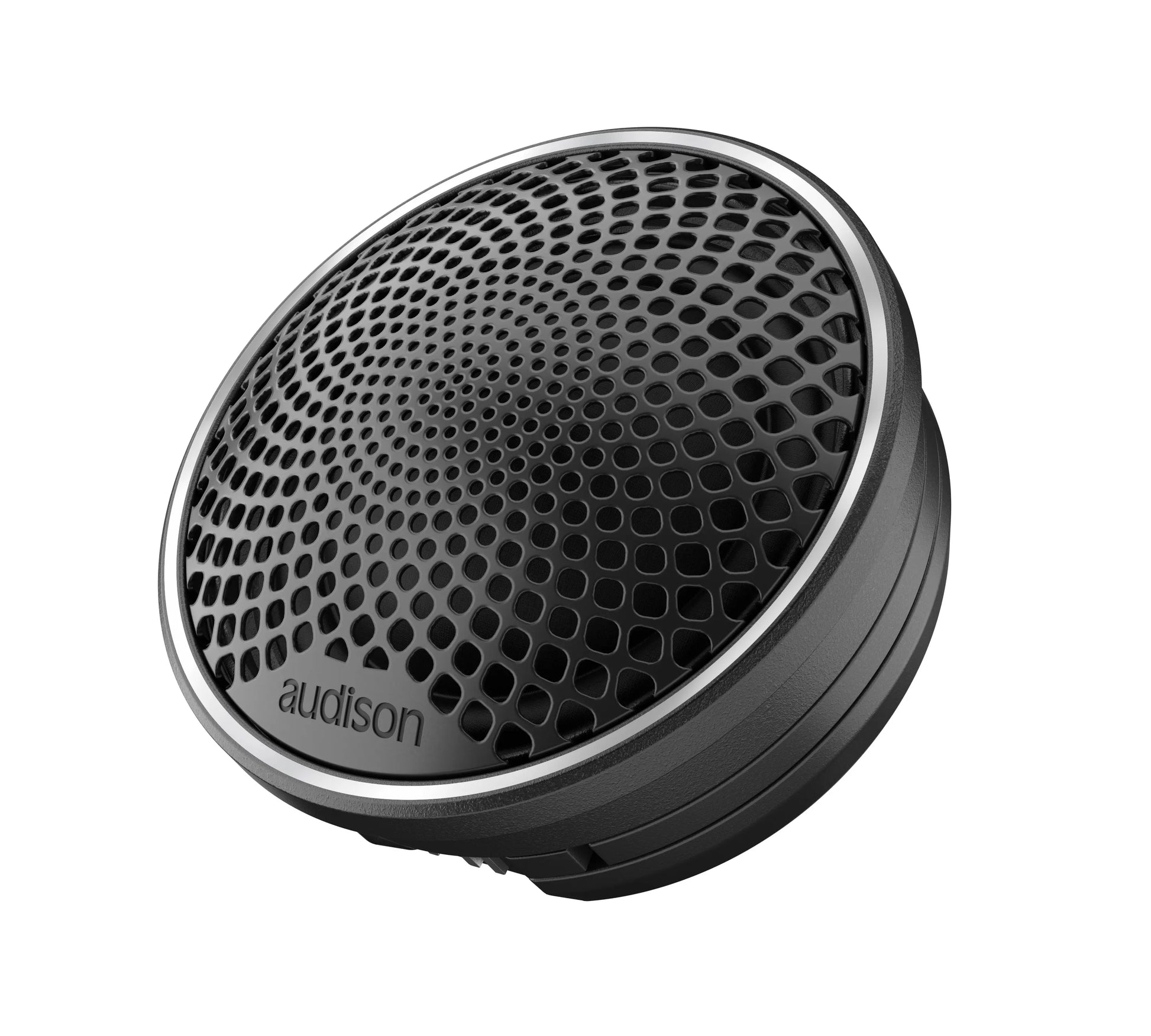

TECHNICAL SPECS HF
| Tweeter Size | 1 mm |
| Frequency Response | 1200 - 40000 Hz |
| Comply with HiRes Audio JAS, testing condition IEC 60268-5 | |
| Power Handling - Peak | 150 W |
| Hi-Pass filtered @ 1,5 kHz - 12dB Oct. | |
| Voice Coil Diameter | 25 mm |
| Dome Material | TELOTON FIBRE |
ELECTRIC-ACOUSTIC SPECS LF
| Re | 2.9 Ohm |
| Fs | 67 Hz |
| Mms | 13.2 g |
| Cms | 0.43 |
| BL | 4.9 |
| Qms | 6.76 |
| Qes | 0.67 |
| Qts | 0.61 |
| Vas | 10.28 l |
| Le | 0.3 mH |
| Spl | 91 dB |
| Xmax | 4.2 mm |
GENERAL
| Weight Woofer | 1.3 kg |
| Weight Tweeter | 0.14 kg |
| Weight Crossover | 0.1 kg |
DIMENSIONS
 |
|
| Dimension A | 165 mm |
| Dimension B | 140.8 mm |
| Dimension C | 65.6 mm |
| Dimension D | 61 mm |
| Dimension A1 | 43.8 mm |
| Dimension B1 | 40.8 mm |
| Dimension C1 | 25.5 mm |
| Dimension D1 | 16.1 mm |
FREQUENCY RESPONSE
Tweeter
|
Woofer
|
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold as a Pair/Complete Kit (Includes Multi-Driver Network)
- Manufacturer Part Number (MPN): AVK 6 S II
- Product Category Component: Speakers
- Hardware Fitment Sizing Profile: 6.5-Inch Layout Fitment
- System Power Metrics: 250 Watts Performance Rating
- Nominal System Stability Configuration: 4 Ohms Impedance Load
- Total Package Boxed Shipping Weight: 6.9 lbs
