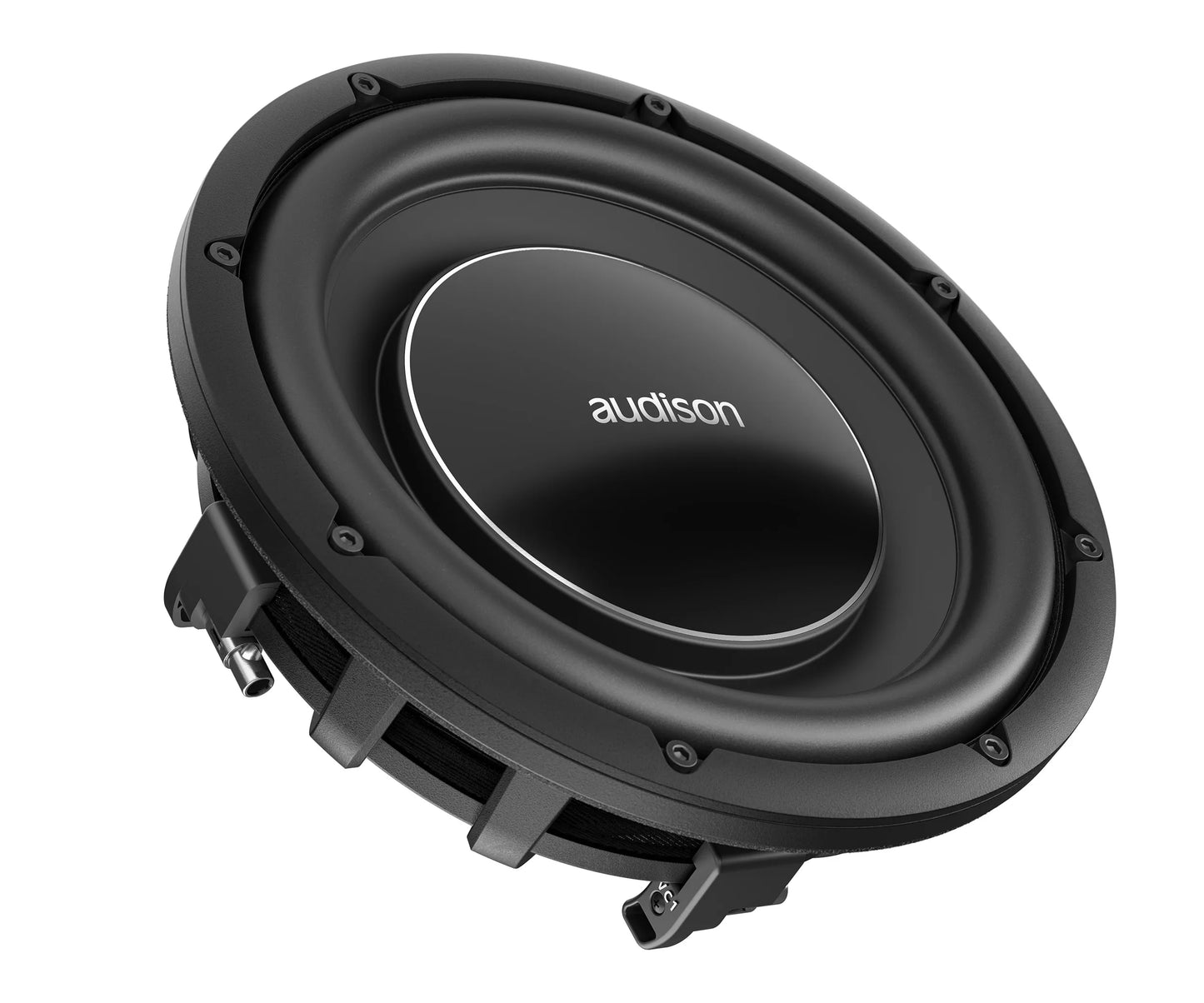

Audison AV 10 D4 II Subwoofer Driver, 250 mm, Grille included
Audison AV 10 D4 II Subwoofer Driver, 250 mm, Grille included
Audison - AV 10 D4 II
Couldn't load pickup availability
Audison AV 10 D4 II Subwoofer Driver, 250 mm, Grille included
Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.
Product Overview & Core Highlights:
AV 10 D4 II Subwoofer Driver | 250 mm | Grille included
Compact in size, uncompromising in performance. The AV 10 D4 II is the 10-inch subwoofer of the VOCE II line, designed to deliver fast, impactful and finely controlled bass within reduced enclosure volumes.
Its dual 4-ohm voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW voice coil and FEM-optimized magnetic structure ensure precise response and excellent thermal stability, even during demanding playback.
Despite its compact footprint, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical strength, an extended-profile dust cap for enhanced damping, and the proprietary Airflow Venting Cooling system for continuous heat dissipation.
Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), it offers deep, controlled bass response even in space-limited setups, making it an ideal choice for refined systems where detail and dynamics must coexist in perfect balance.
Every element reflects the VOCE II philosophy: precision engineering, signature low-frequency response, and unmistakable Italian design.
Technical Specs
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4+4 Ohm |
| Power Handling - Peak | 1100 W |
| Power Handling - Continuous | 550 W |
| Sensitivity | 83.5 dB |
| Frequency Response | 25 - 400 Hz |
| Voice Coil Ø | 38.6 mm (1.5 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 134*55*36 mm (5,28*2,17*1.41 in) |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | POLYPROPYLENE |
| Surround Material | |
| Xmax | 16.8 mm (0.66 in) |
| Xmech | 20 mm (0.79 in) |
| Voice Coil Winding Height | 37 mm (1.46 in) |
| Gap Height | 7 mm (0.28 in) |
Electric-acoustic Specs
| D | 368 cm² (57.04 in²) |
| Re | 1.82 Ohm |
| Fs | 36 Hz |
| Le | 1.8 mH |
| Vas | 14.8 l (0.523 ft) |
| Mms | 250 g (8.819 oz) |
| Cms | 0.08 mm/N |
| BL | 11.2 T•m |
| Qts | 0.72 |
| Qes | 0.823 |
| Qms | 5.62 |
| Reference Efficiency | 83.5 |
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Subwoofer Driver/Box)
- Manufacturer Part Number (MPN): AV 10 D4 II
- Product Category Component: Subwoofers
- Hardware Fitment Sizing Profile: 1-Inch Layout Fitment
- System Power Metrics: 1100 Watts Performance Rating
- Nominal System Stability Configuration: 4 Ohms Impedance Load
- Total Package Boxed Shipping Weight: 12.0 lbs
