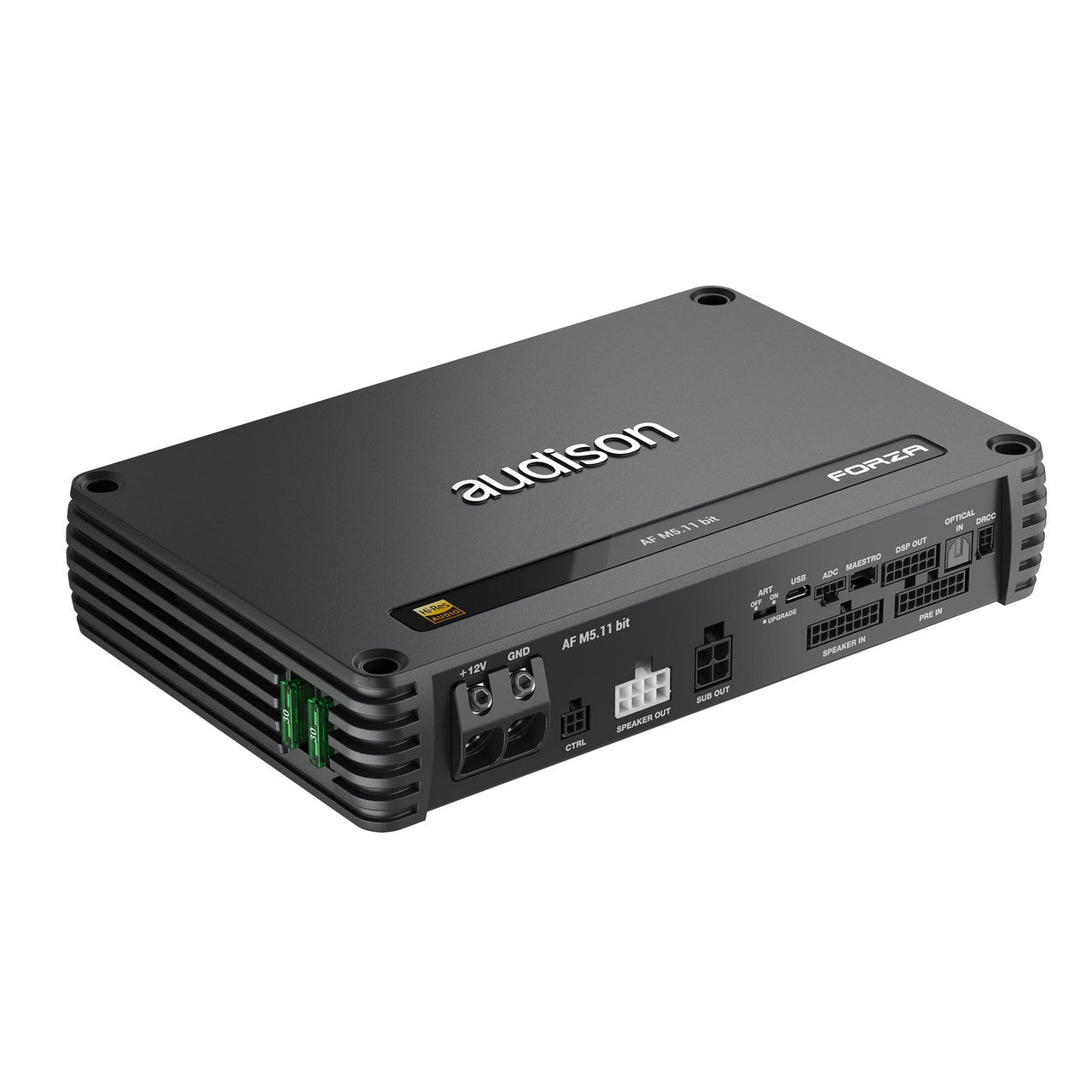

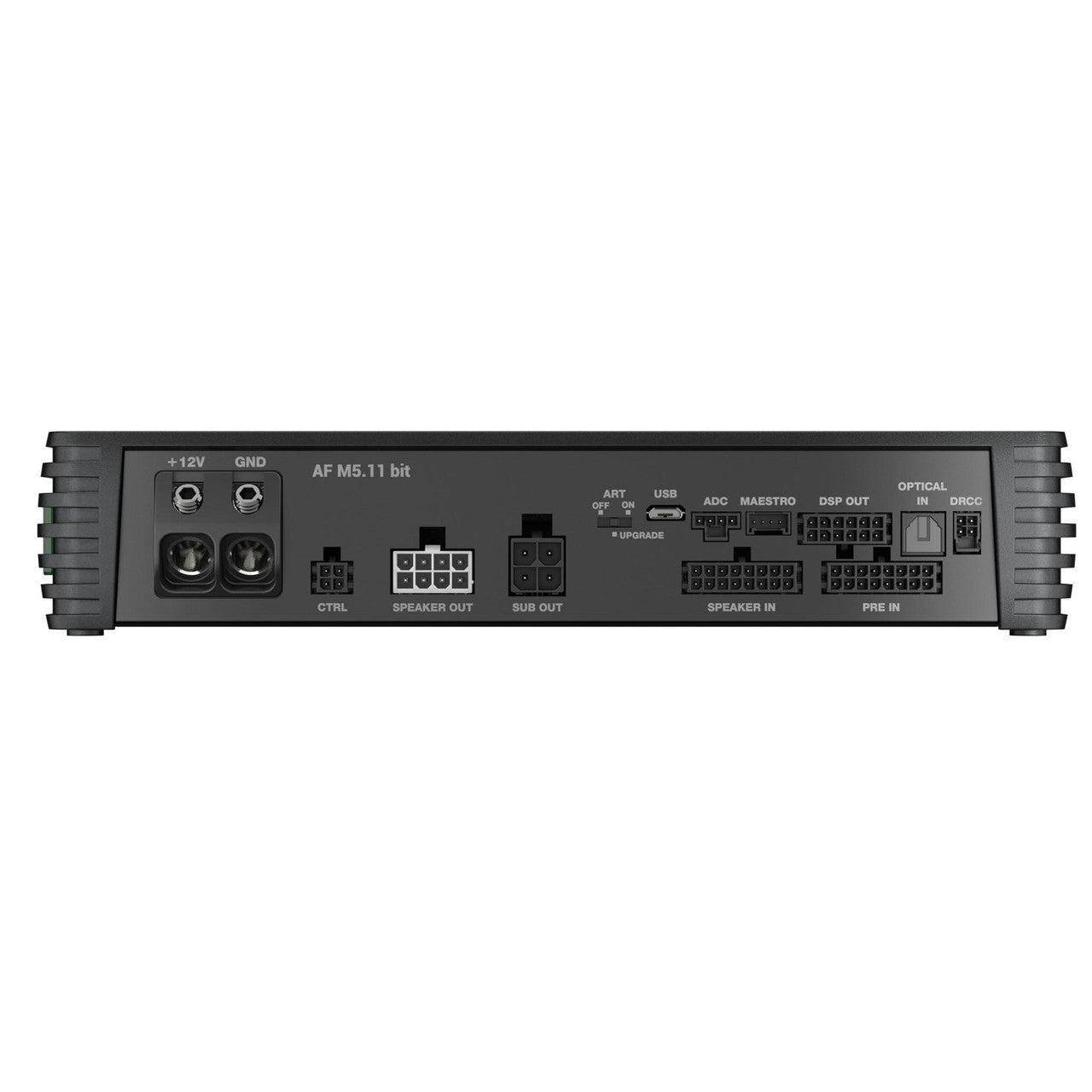

Audison - AF-M5.11-bit Audison AF-M5.11-bit 1200W 5-Channel Amplifier With DSP,
Audison - AF-M5.11-bit Audison AF-M5.11-bit 1200W 5-Channel Amplifier With DSP,
Audison - AF-M5.11-bit
Regular price
$1,499.99 USD
Regular price
$1,799.99 USD
Sale price
$1,499.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Audison - AF-M5.11-bit Audison AF-M5.11-bit 1200W 5-Channel Amplifier With DSP,
Experience unmatched acoustic fidelity, pristine audiophile-grade detail, and state-of-the-art Italian design with a premium car audio power amplifier from Audison. Precision-engineered to deliver continuous power distribution with absolute zero background coloration, these amplifiers feature ultra-low distortion parameters and high-current circuitry tailored to reveal every nuance of high-resolution acoustic soundstages.
Product Overview & Core Highlights:
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.5 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5V DC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80.5%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.02%
Damping factor @ 100 kHz , 4Ω, 2 VRMS SUB Channel): 140
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 5Ch: 2Ω, 3Ch: 4Ω + 4Ω + 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
• 5 Ch @ 4Ω: 100 W x 4 + 400 W x 1
• 5 Ch @ 2Ω: 150 W x 4 + 600 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 + 600 W x 1
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
- Manufacturer Part Number (MPN): AF-M5.11-bit
- Product Category Component: Amplifiers
- Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
- System Power Metrics: 1200 Watts Performance Rating
- Nominal System Stability Configuration: 4 Ohms Impedance Load
- Total Package Boxed Shipping Weight: 10.0 lbs
