Experience unmatched acoustic fidelity, pristine audiophile-grade detail, and state-of-the-art Italian design with a premium car audio power amplifier from Audison. Precision-engineered to deliver continuous power distribution with absolute zero background coloration, these amplifiers feature ultra-low distortion parameters and high-current circuitry tailored to reveal every nuance of high-resolution acoustic soundstages.

Product Overview & Core Highlights:

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M8.14 bit boasts eight high-fidelity amplified channels 90W x 8 @4Ω, 140W x 8 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 280W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

Features:

• Enjoy the improved audio performance of the latest generation Audison D-Class technology.
• Maximum versatility thanks to the bridging option for each pair of channels.
• Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
• Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
• Pure digital signal transfer with a resolution up to 24bit/96 kHz.
• Quick I/O Configuration speeds up system definition and signal routing.
• When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
• iDatalink Maestro AR native support for a total integration with OEM infotainment.
• Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
• Electrical Signal Analysis ensures proper integration and correction for each input channel.
• Input delay compensation of time-delayed factory outputs prior to signal summing.
• Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
• Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
• Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
• 14 DSP-processed output channels for a total control.
• 6 native pre-out channels for maximum versatility.
• The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
• The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.

Technical Specifications:

Power Supply:

• Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
• Pulse operating voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1.5 A
• Standby current draw: 1.7 mA
• Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 55 A
• Remote IN: 4 ÷15 VDC (1 mA)
• Remote OUT: 6.5 ÷15 VDC (150 mA)
• ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
• Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 82%

Amplifier Stage:

• Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
• Damping factor @ 1 kHz , 4Ω, 2 VRMS: 100
• Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
• S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98.5 dBA
• S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
• Minimum load impedance:
  • 8Ch: 2Ω
  • 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
• Output Continuous Power (RMS) @14.4 VDC, 1% THD:
  • 8 Ch @ 4Ω: 90 W x 8
  • 8 Ch @ 2Ω: 140 W x 8
  • 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 280 W x 4

CEA Specifications:

• Output power @ 4Ω, 1% THD+N, 14.4 V: 90 W x 8
• SN ratio (ref. 1 W output): 80 dB

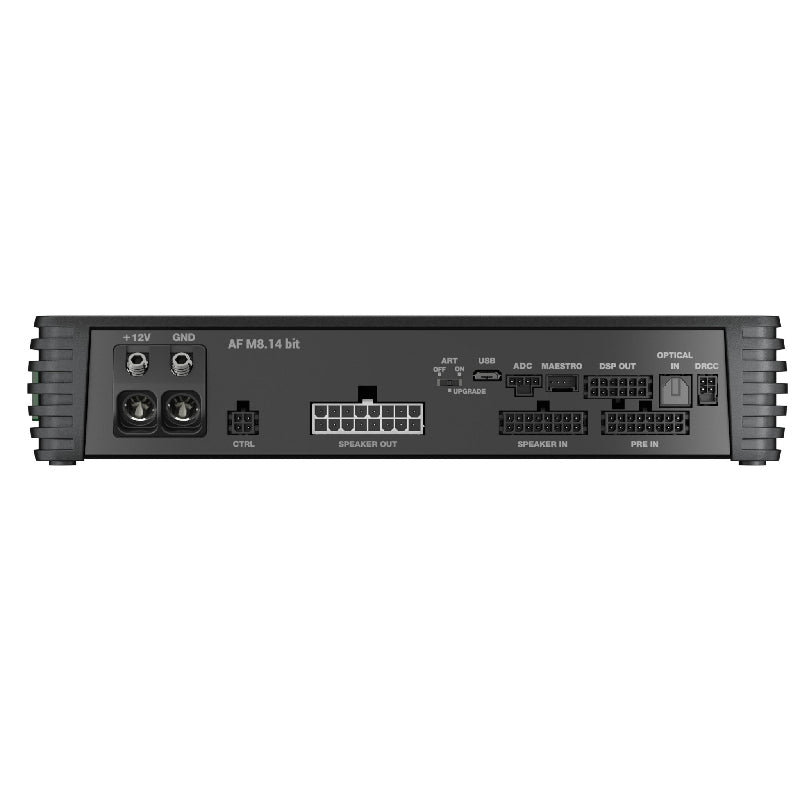

Inputs/Outputs:

• Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
• Speaker-In (8 Ch + + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
• DSP Preout (6 Ch): 5V RMS

Digital Signal Processor:

• Audio DSP and converters: Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
• Filter type: Full / High-Pass / Low-Pass / Band-Pass
• Filter mode and slope:
  • Linkwitz-Riley @ 12/24/36/48 dB/Oct.
  • Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
  • Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
  • QLP @ 6 dB/Oct.
• Crossover frequency: 20 Hz ÷ 20 kHz
• Phase control: 0° / 180°, All-Pass filters
• Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
• Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
• Input and Output Real-Time Audio Monitor: RTA
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms

Control Connections:

• Audison DRCC port: Input for DRCC remote control (Optional)
• Audison ADC port: Manage other Audison devices that support this standard
• Control 1 wire: Customizable functions (+ 12 V activated)
• Control 2 wire: Customizable functions (+ 12 V activated)

General Requirements:

• PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
• Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
• Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)

Size/Weight:

• Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
• Weight (kg/lb): 2.04 / 4.49

• Weight: 5
