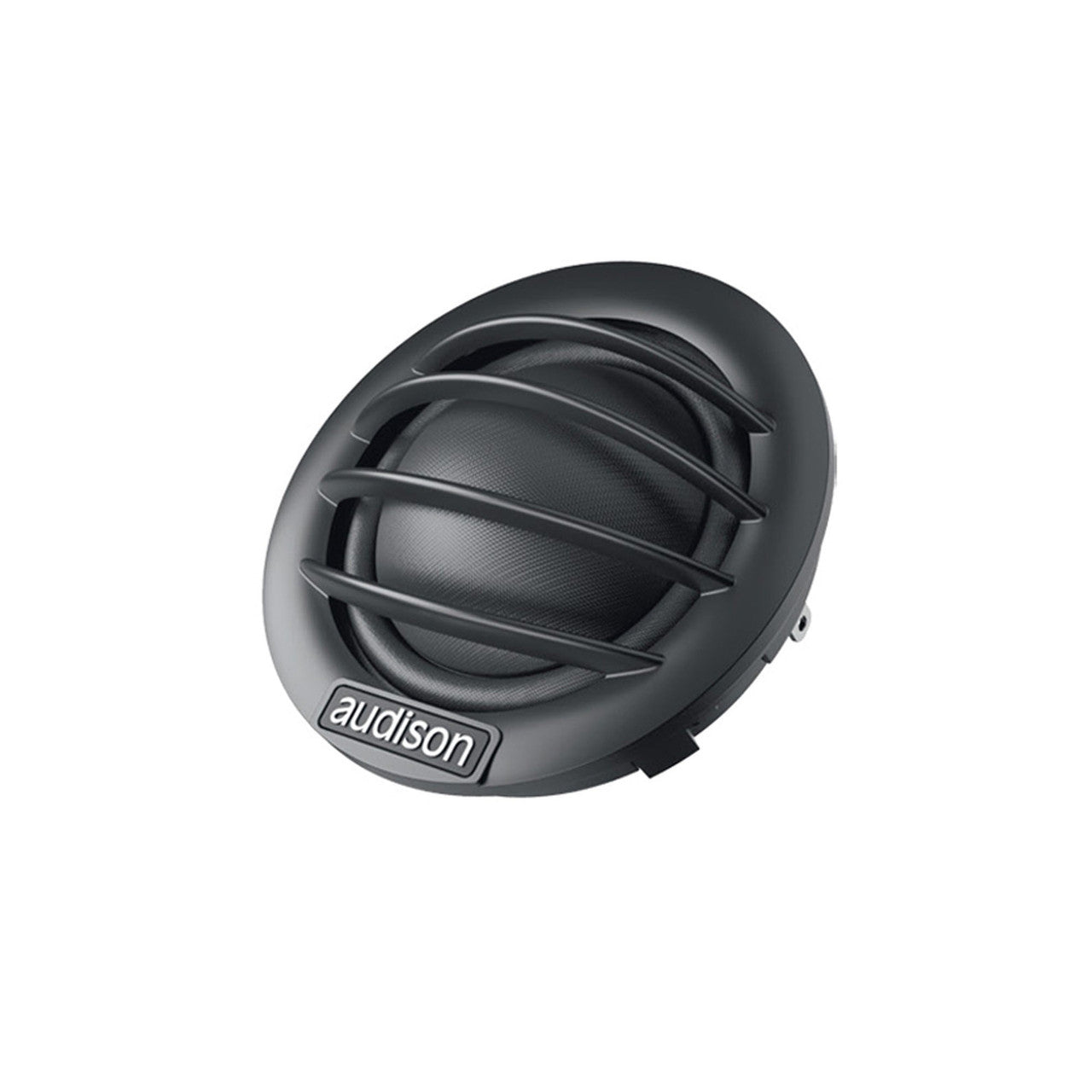

Audison AP1P Tweeter Component with Crossover

Name: Audison AP1P Tweeter Component with Crossover
Brand: Audison
SKU: AP1P
Price: 249.99 USD
Availability: InStock

Audison AP1P Tweeter Component with Crossover

Audison - AP1P

$249.99 USD

~~$299.99 USD~~ $249.99 USD

Sale Special Order this item by Clicking the Chat Button Below

Shipping calculated at checkout.

Quantity

Audison AP1P Tweeter Component with Crossover

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1” CCAW voice coil ensures an outstanding dynamic response.

AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:
1. OEM, for an easy and correct factory placement
2. Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations
3. Spoke grille: for maximum acoustic performance with a-pillar installations

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with three mounting accessories that make the AP 1P install a breeze:
1. Watch band
2. Double-angle cup
3. Flush Mounting Ring
4. Metal mounting spring

Technical Specifications
Size: 29 mm (1.14″)
Power Handling: Hi-pass filtered 2.5 kHz @ 12 dB Oct. 150 W Peak Power
Impedance: 8 Ω
Frequency Response: 1,2 ÷ 25 kHz
Crossover name: APCX P 2T
Crossover Type: High Pass, 4kHz, 12 dB/oct.
Crossover adjustment: Tweeter Level: 0 / +3 dB
Sensitivity: 92 dB/Spl
Magnet: Neodymium
Tweeter Voice Coil Ø: 25 mm (1″)
Dome: Tetolon fibre

🚨 Critical Performance Specifications:

Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
Manufacturer Part Number (MPN): AP1P
Product Category Component: Speakers
Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
System Power Metrics: 150 Watts Performance Rating
Nominal System Stability Configuration: 8 Ohms Impedance Load
Total Package Boxed Shipping Weight: 3.0 lbs
