Audison APK690 Prima Series 6 x 9" 2-Way Component Speaker Set; AP 1 + AP 690

Audison APK690 Prima Series 6 x 9" 2-Way Component Speaker Set; AP 1 + AP 690

Audison - APK690

$499.99 USD
$599.99 USD $499.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audison APK690 Prima Series 6 x 9" 2-Way Component Speaker Set; AP 1 + AP 690

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

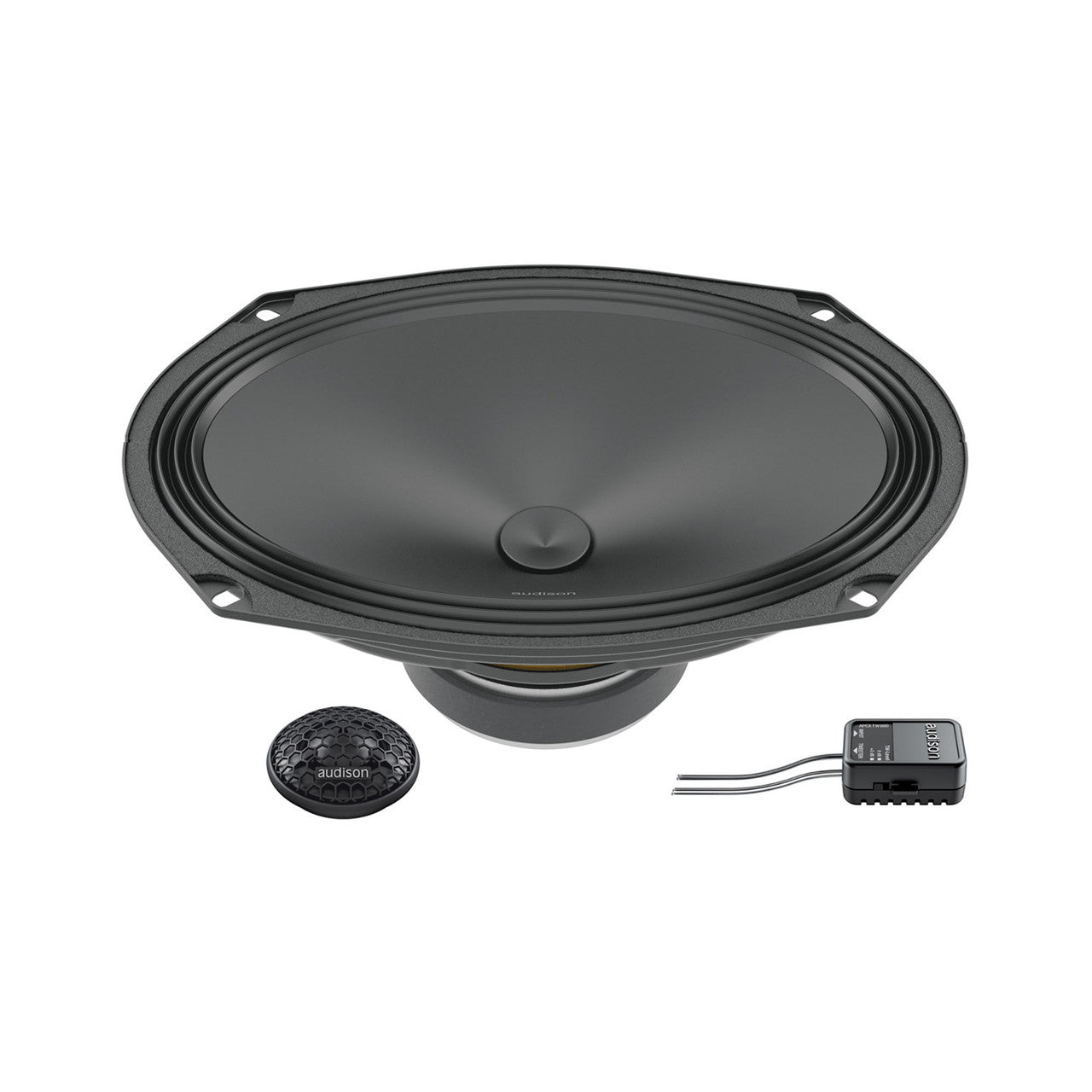

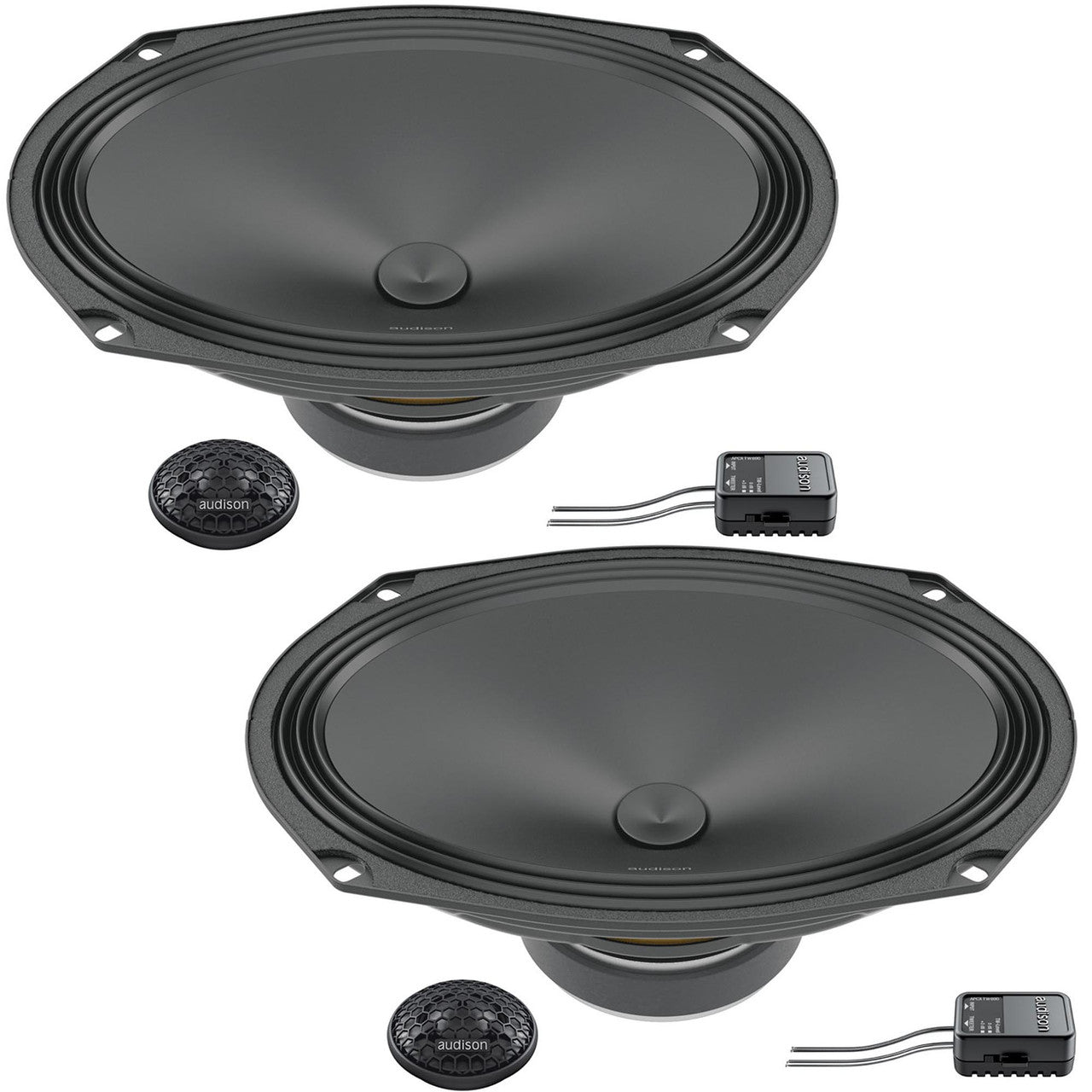

APK 690 - KIT 2Way AP 1+AP 690+XOVER

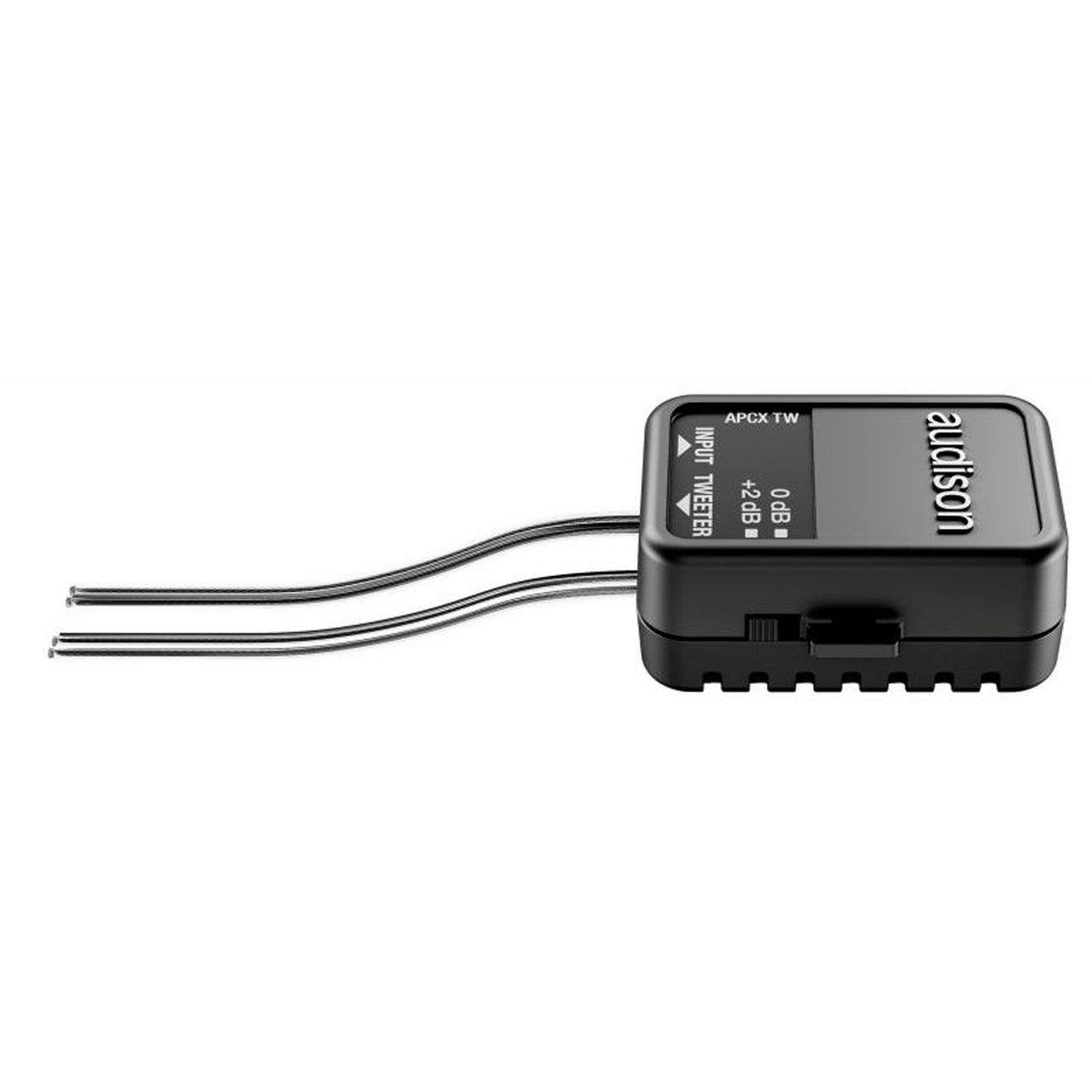

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6×9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.

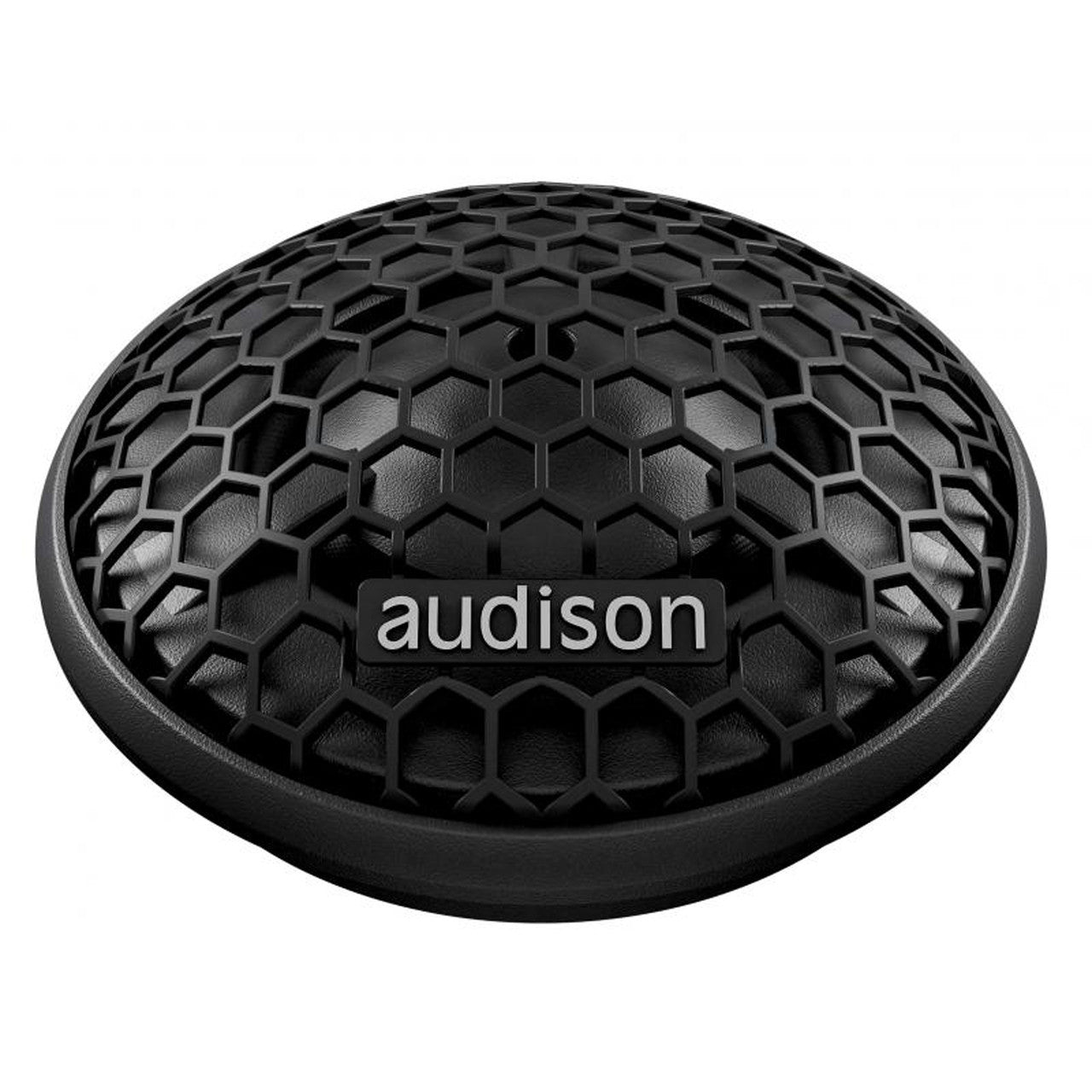

Tweeter -
• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• Acoustic lens designed to compensate for the in-car frequency response in the 10kHz - 13kHz bandwidth caused by critical OEM placements.

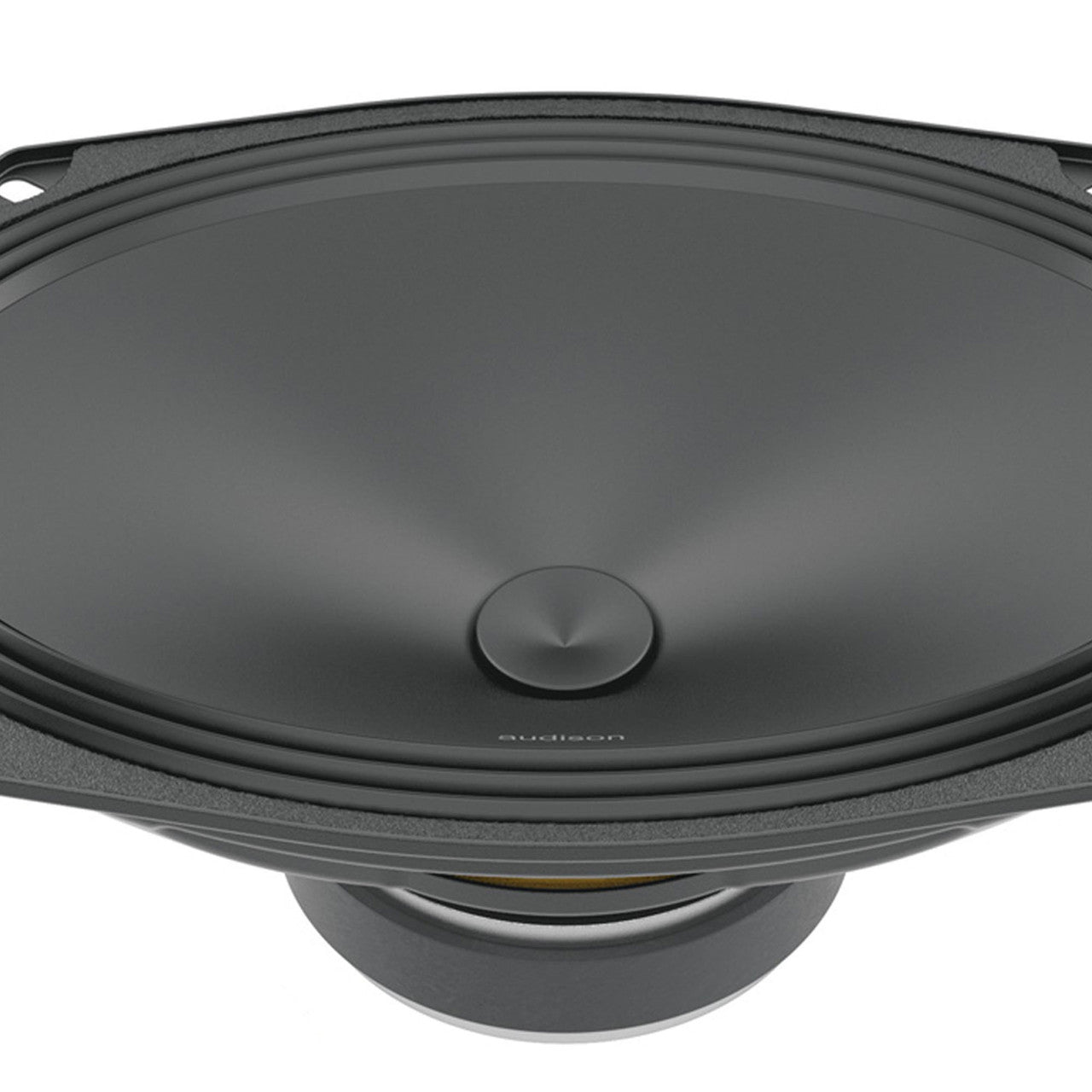

Woofer -
• 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• “Triple Wave” surround profile for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.

🚨 Critical Performance Specifications:

  • Package Quantity Configuration: Sold as a Pair/Complete Kit (Includes Multi-Driver Network)
  • Manufacturer Part Number (MPN): APK690
  • Product Category Component: Speakers
  • Hardware Fitment Sizing Profile: 9-Inch Layout Fitment
  • System Power Metrics: 2 Watts Performance Rating
  • Total Package Boxed Shipping Weight: 6.4 lbs
