Audison APS 10 D Prima Series 10" (4Ω DVC Sub for Sealed Enclosures (.35 CuFt mi

Audison APS 10 D Prima Series 10" (4Ω DVC Sub for Sealed Enclosures (.35 CuFt mi

Audison - APS 10 D

$399.99 USD
$479.99 USD $399.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audison APS 10 D Prima Series 10" (4Ω DVC Sub for Sealed Enclosures (.35 CuFt mi

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

APS 10 D - SUBWOOFER 250mm 4+4Ohm

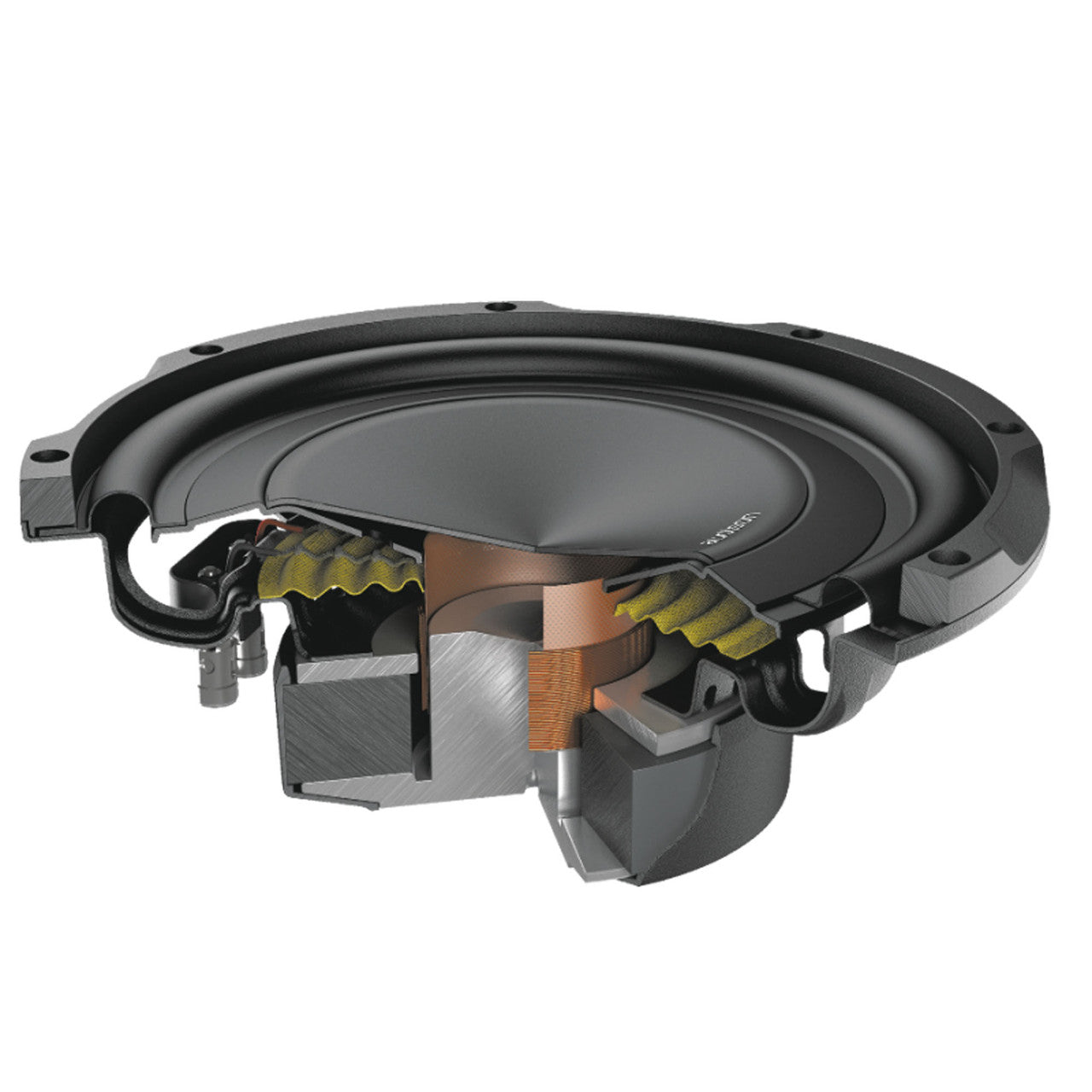

The APS 10 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice-coil and single voice coil versions feature push connectors for ease of wiring and configurations. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features -
• Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
• Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.

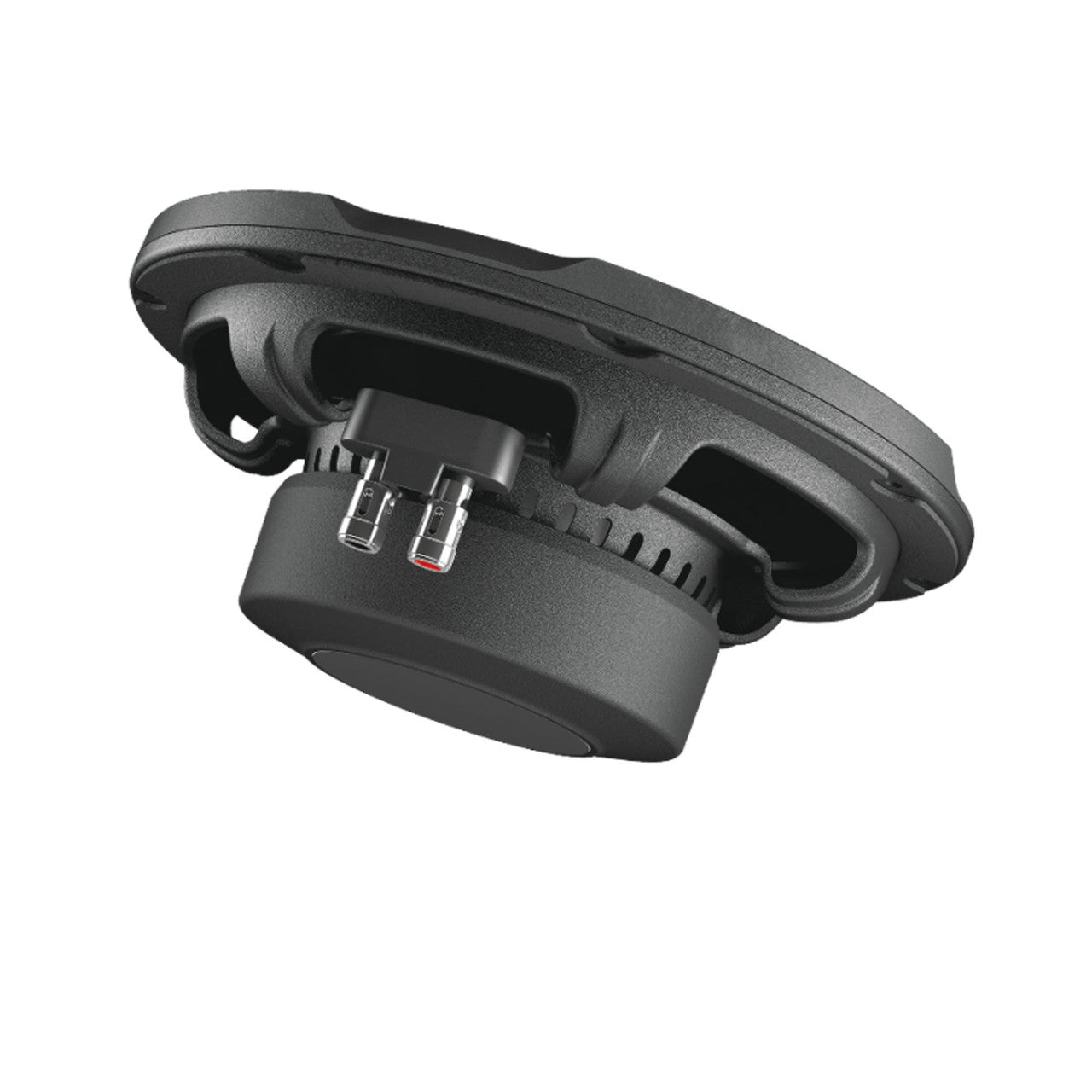

• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
• Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
• Dual voice coil design specifically developed to be combined with either AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers.

🚨 Critical Performance Specifications:

  • Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Subwoofer Driver/Box)
  • Manufacturer Part Number (MPN): APS 10 D
  • Product Category Component: Subwoofers
  • Hardware Fitment Sizing Profile: 10-Inch Layout Fitment
  • Nominal System Stability Configuration: 4 Ohms Impedance Load
  • Total Package Boxed Shipping Weight: 18.6 lbs
