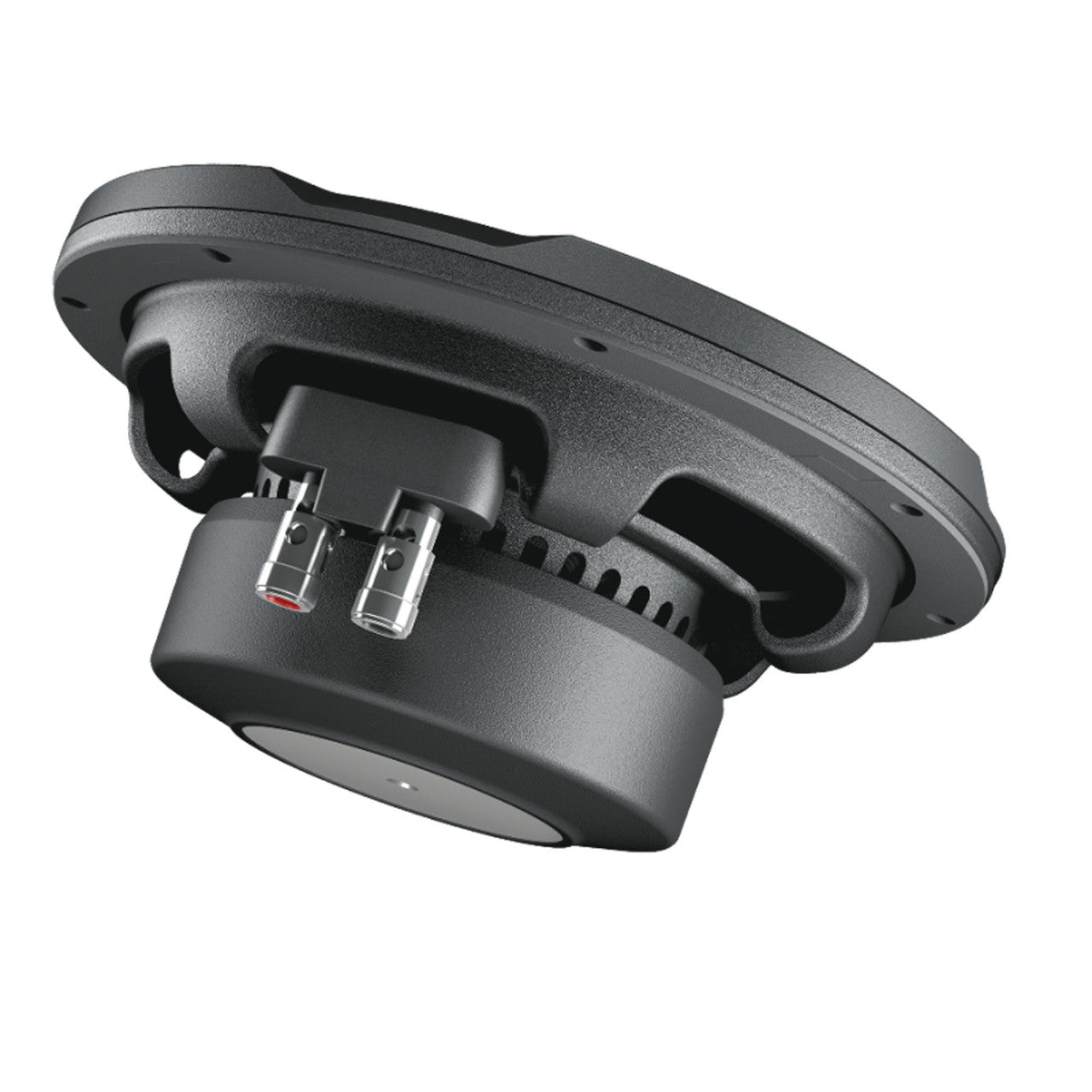

  • Audison APS 8 R Prima Series 8" 4Ω SVC Sub for Ported Enclosures (.3 CuFt. min) - View 5
1 5

Audison APS 8 R Prima Series 8" 4Ω SVC Sub for Ported Enclosures (.3 CuFt. min)

Audison APS 8 R Prima Series 8" 4Ω SVC Sub for Ported Enclosures (.3 CuFt. min)

Audison - APS 8 R

$249.99 USD
$299.99 USD $249.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audison APS 8 R Prima Series 8" 4Ω SVC Sub for Ported Enclosures (.3 CuFt. min)

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

APS 8 R - SUBWOOFER 200mm 4Ohm

With the aim of providing high acoustical output even when used with lower power, the APS 8 R was designed for use in an 8.5-litres reflex enclosure, with tuning between 30 and 40Hz. The APS 8 R has been specifically developed to be combined with either the AP8.9 bit or AP4.9 bit / AP4 D. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the “rocking-mode” phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features -
• Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
• Designed to deliver maximum performance in a reflex enclosure starting from 8.5 lt.
• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.
• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
• Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
• Specifically developed to be combined with either the Audison AP8.9 bit (2 CH bridged) or AP4.9 bit /AP4 D (2 CH bridged) amplifiers.

🚨 Critical Performance Specifications:

  • Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Subwoofer Driver/Box)
  • Manufacturer Part Number (MPN): APS 8 R
  • Product Category Component: Subwoofers
  • Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
  • Nominal System Stability Configuration: 4 Ohms Impedance Load
  • Total Package Boxed Shipping Weight: 8.9 lbs
