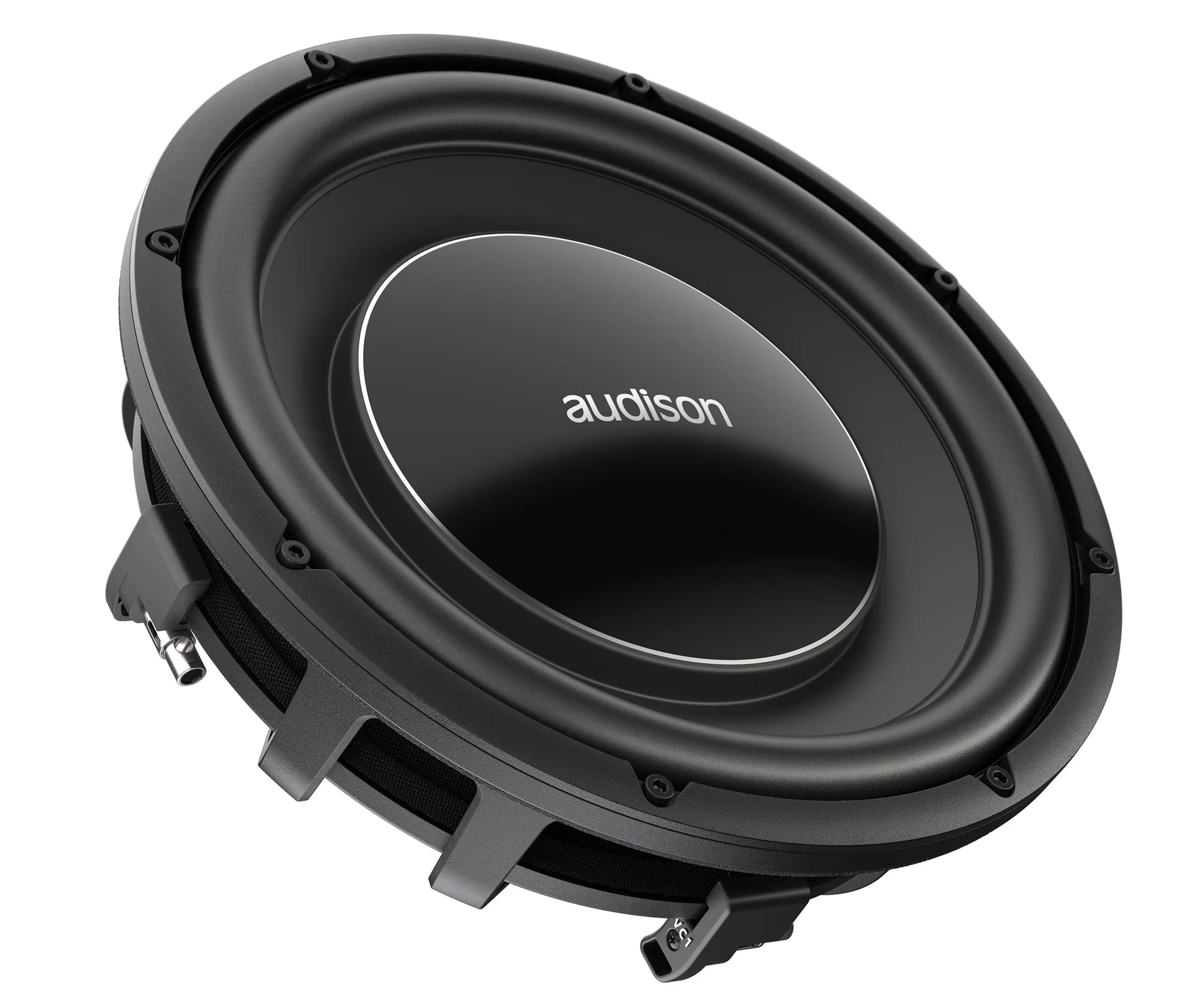

AUDISON AV 12 D2 II Subwoofer Driver, 300 mm, Grille included
AUDISON AV 12 D2 II Subwoofer Driver, 300 mm, Grille included
Audison - AV 12 D2 II
Couldn't load pickup availability
AUDISON AV 12 D2 II Subwoofer Driver, 300 mm, Grille included
Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.
Product Overview & Core Highlights:
AV 12 D2 II Subwoofer Driver | 300 mm | Grille included
Born from the same engineering philosophy that defines the VOCE II line, the AV 12 D2 II subwoofer delivers deep, powerful and highly controlled bass in a compact sealed enclosure.

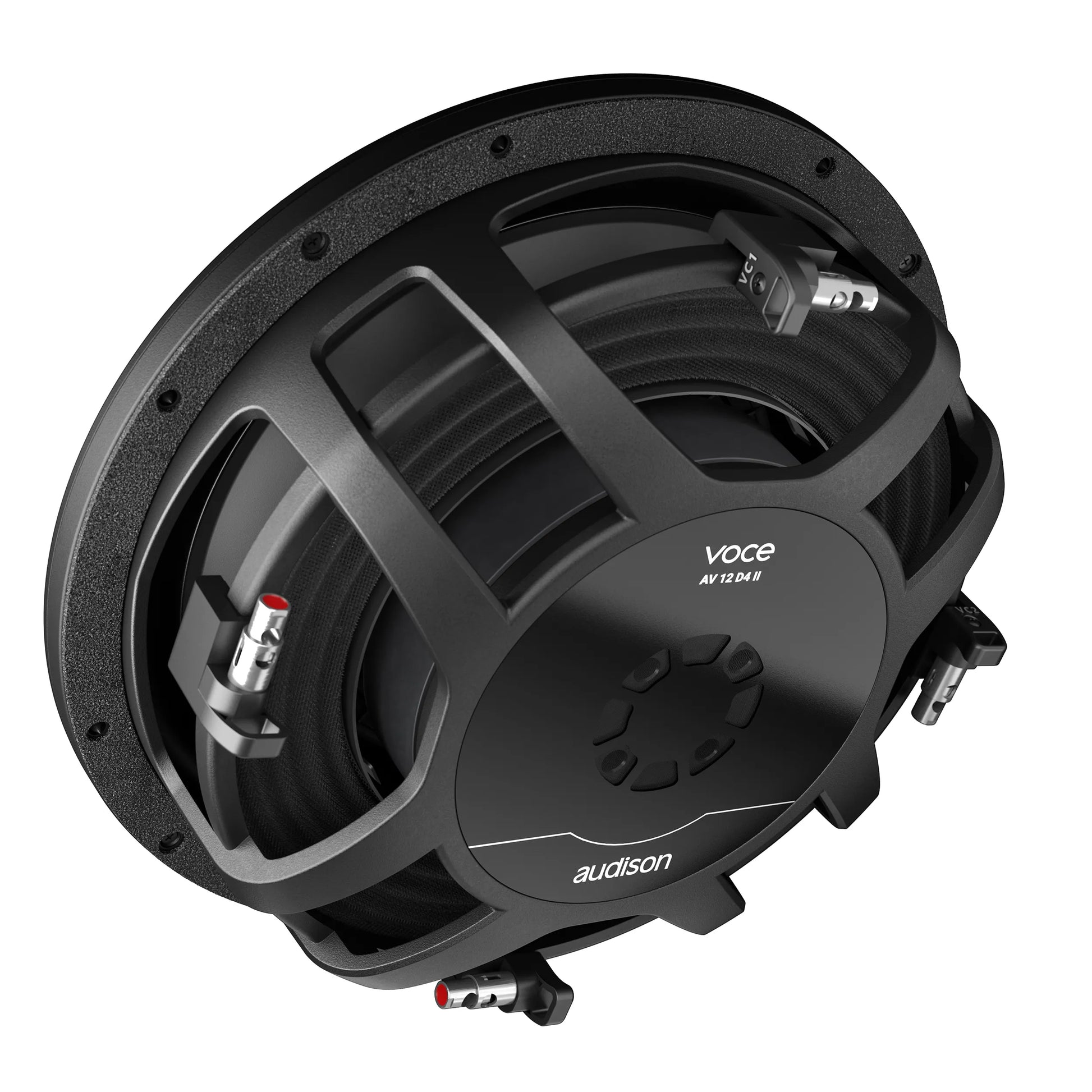

Equipped with a 1.5-inch CCAW voice coil and a 550 W RMS-rated motor structure, it combines dynamic power with thermal stability, ensuring consistent performance even at high sound pressure levels. The die-cast aluminum basket integrates dual cable-routing hooks for clean installation, while the spring-loaded terminals support 8 AWG cables and fast connections.
The FEM-optimized dust cap increases rigidity and damping, perfectly matching the refined design language of the VOCE II range. Engineered to perform at its best in 12–14 L sealed boxes, the AV 12 D2 II is ideal for space-limited setups where sound quality is never a compromise.
With its dual 2-ohm configuration, it offers maximum system flexibility and seamless integration into high-end audio systems.
Precision, power and elegance, this is how VOCE II speaks the language of low frequencies.
Technical Specs
| Nominal diameter | 300 mm (12 in) |
| Impedance | 2+2 Ohm |
| Power Handling - Peak | 1100 W |
| Power Handling - Continuous | 550 W |
| Sensitivity | 85 dB |
| Frequency Response | 25 - 400 Hz |
| Voice Coil Ø | 38.6 mm (1.5 in) |
| Chassis Material | ALUMINIUM |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 156*60*34 mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | POLYPROPYLENE |
| Xmax | 16.8 mm (0.66 in) |
| Xmech | 20 mm (0.79 in) |
| Voice Coil Winding Height | 37 mm (1.46 in) |
| Gap Height | 7 mm (0.28 in) |
| Driver Displacement Volume | 0.9 l (0.032 ft) |
| Recommended Enclosure | 27.1 l (0.957 ft) |
| Recommended Tuning | 26.5 Hz |
| Ferrofluid | No |
Electric-acoustic Specs
| D | 539 cm² (83.545 in²) |
| Re | 3.3 Ohm |
| Fs | 23 Hz |
| Le | 4.3 mH |
| Vas | 63 l (2.225 ft) |
| Mms | 326 g (11.499 oz) |
| Cms | 0.15 mm/N |
| BL | 17.4 T•m |
| Qts | 0.5 |
| Qes | 0.5 |
| Qms | 6.7 |
| Reference Efficiency | 85 |
General
| Weight | 6.6 kg |
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Subwoofer Driver/Box)
- Manufacturer Part Number (MPN): AV 12 D2 II
- Product Category Component: Subwoofers
- Hardware Fitment Sizing Profile: 1-Inch Layout Fitment
- System Power Metrics: 550 Watts Performance Rating
- Nominal System Stability Configuration: 2 Ohms Impedance Load
- Total Package Boxed Shipping Weight: 12.0 lbs
