Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

AV 3.0 II Mid Range | 100 W Peak Power | 70 mm (3.5 in.) | 4 ohm

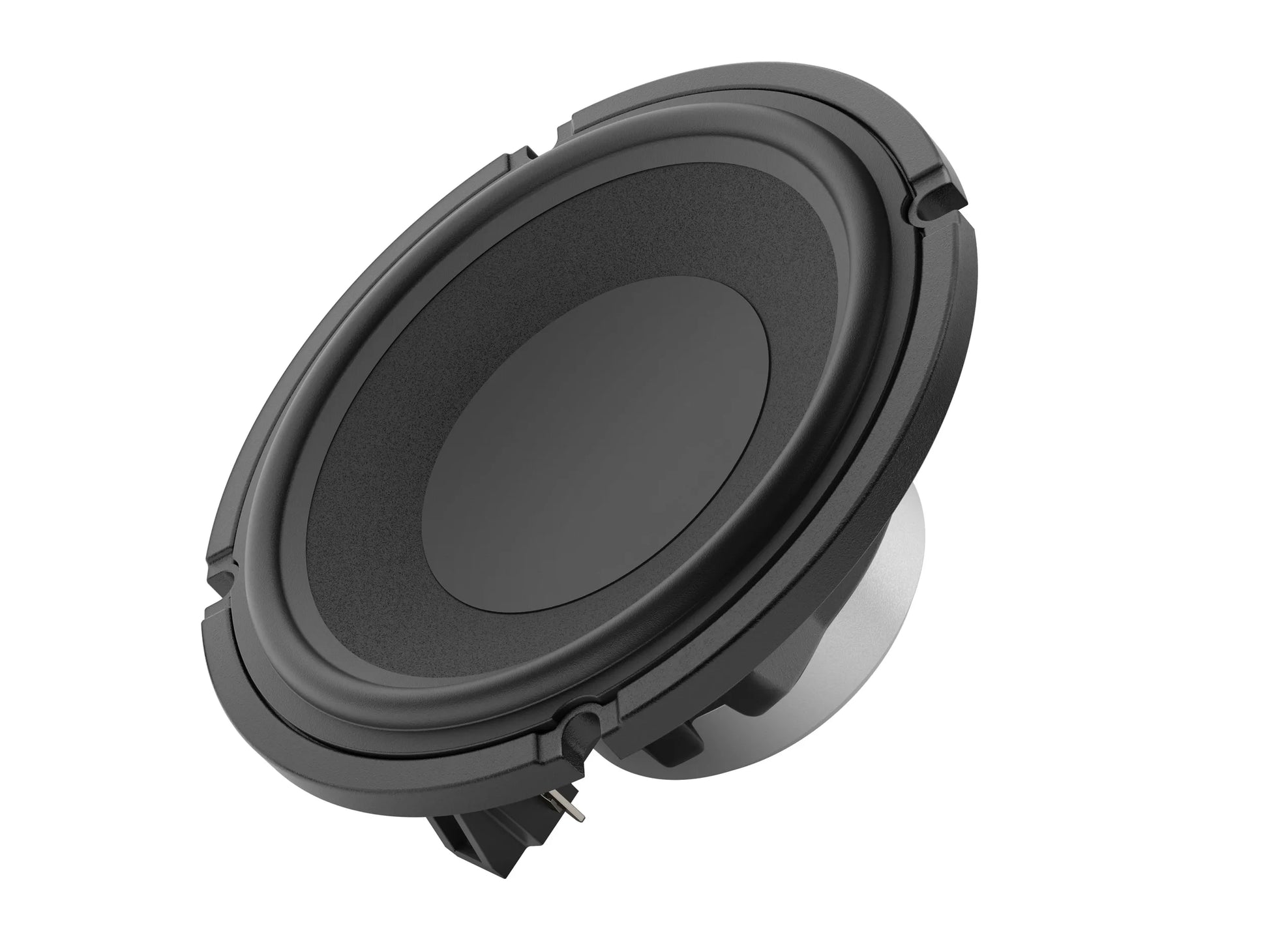

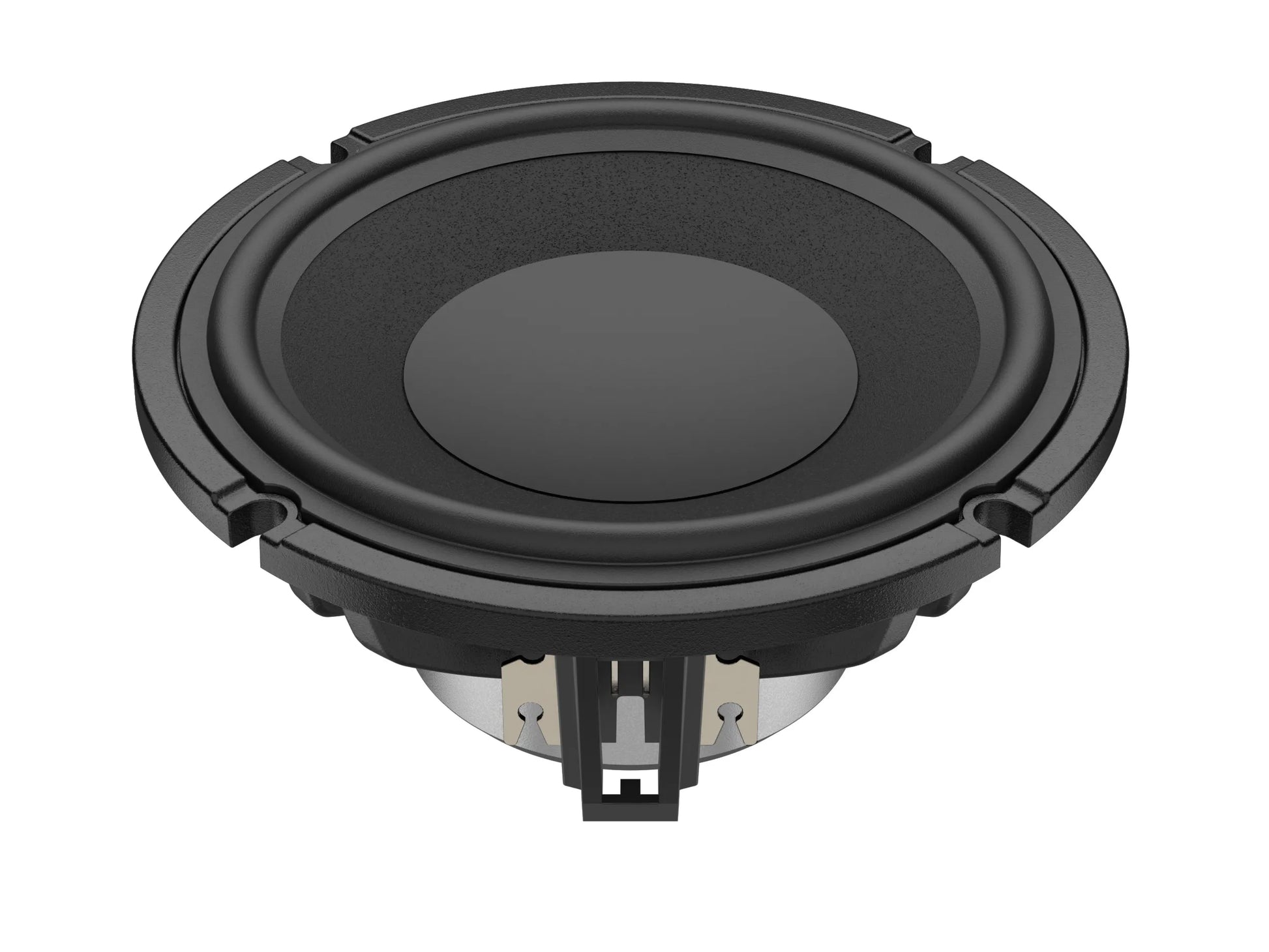

The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.

TECHNICAL SPECS

Nominal diameter	70 mm
Minimum Impedance	3.2 Ohm
Power Handling - Peak	100 W
Power Handling - Continuous	50 W
Sensitivity	90 dB
	SPL measured at 2.83V/1m;
Frequency Response	160 ÷ 13000 Hz
	(-6dB)
Voice Coil Ø	26 mm
Chassis Material	ALUMINIUM
Magnet Material	NEODYMIUM
Magnet size D x d x h	24.9-6 mm (in.)
Voice Coil Material	CCAW
Former Material	GLASS FIBER
Cone Material	SEMI-PRESSED PAPER
Surround Material	RUBBER
Xmax	1.4 mm
Xmech	3.2 mm
Voice Coil Winding Height	5.3 mm
Gap Height	4.5 mm
Crossover name	no

ELECTRIC-ACOUSTIC SPECS

Re	2.9 Ohm
Fs	150 Hz
Le	0.1 mH
Vas	0.61 l
Mms	2.9 g
Cms	0.39 mm/N
BL	3.5 T•m
Qts	0.58
Qes	0.65
Qms	5.45
Flux Density	0.78

GENERAL

Weight

0.15 kg

DIMENSIONS

Dimension A	84 mm
Dimension B	73 mm
Dimension C	35 mm
Dimension D	31.2 mm
Hole diameter	3.5 mm

FREQUENCY RESPONSE

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): AV 3.0 II
• Product Category Component: Speakers
• Hardware Fitment Sizing Profile: 3.5-Inch Layout Fitment
• System Power Metrics: 100 Watts Performance Rating
• Nominal System Stability Configuration: 4 Ohms Impedance Load
• Total Package Boxed Shipping Weight: 1.9 lbs
