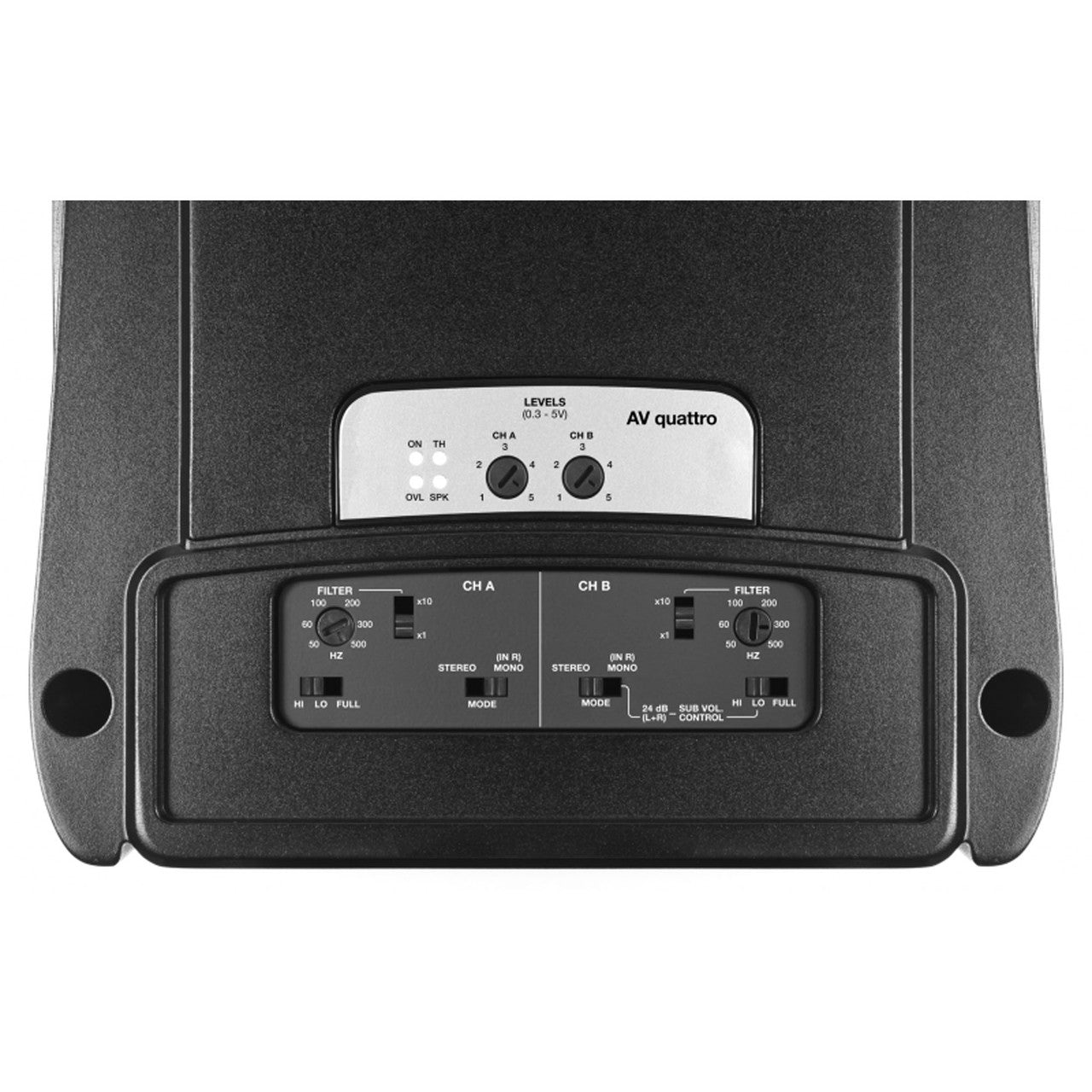

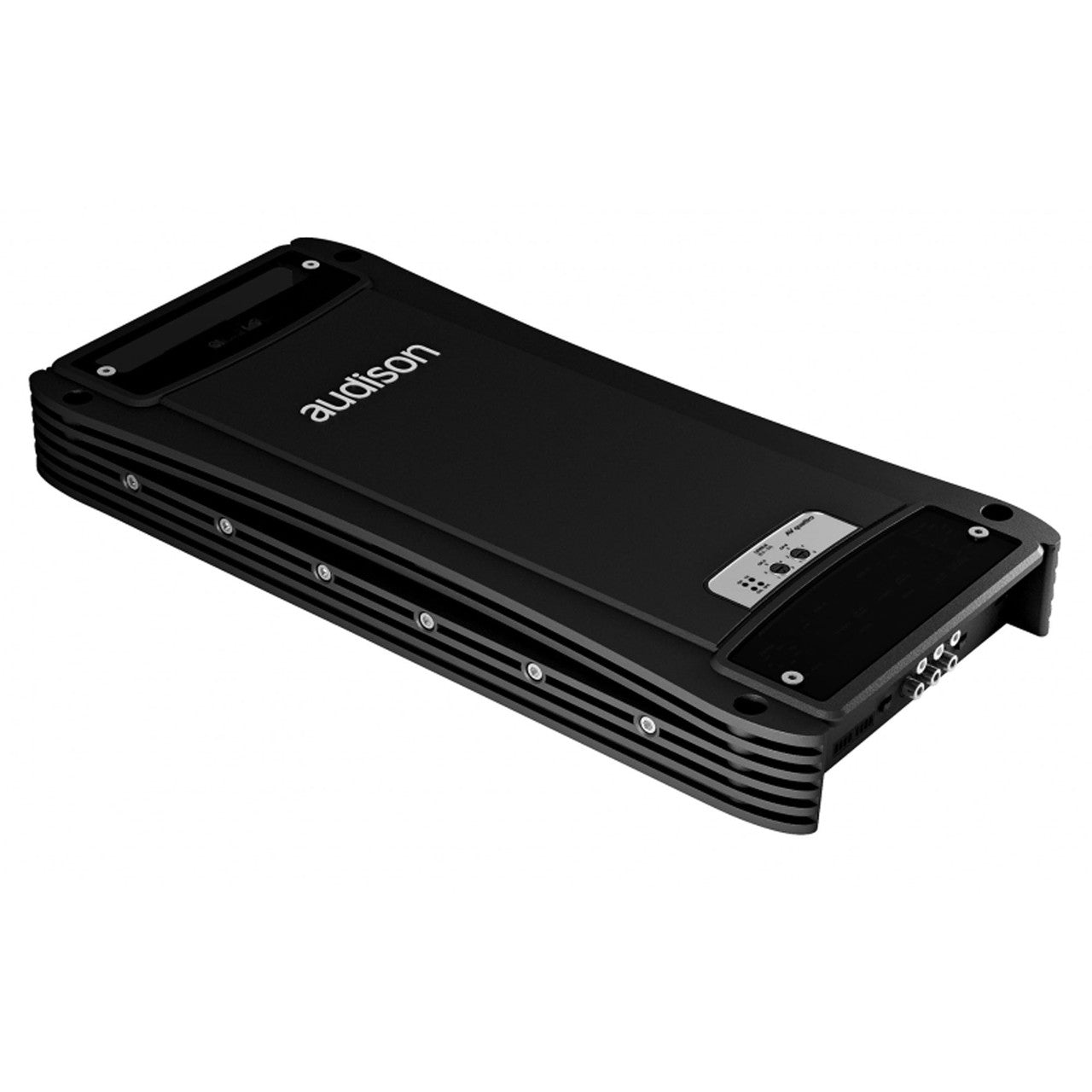

• Audison AV QUATTRO - View 1

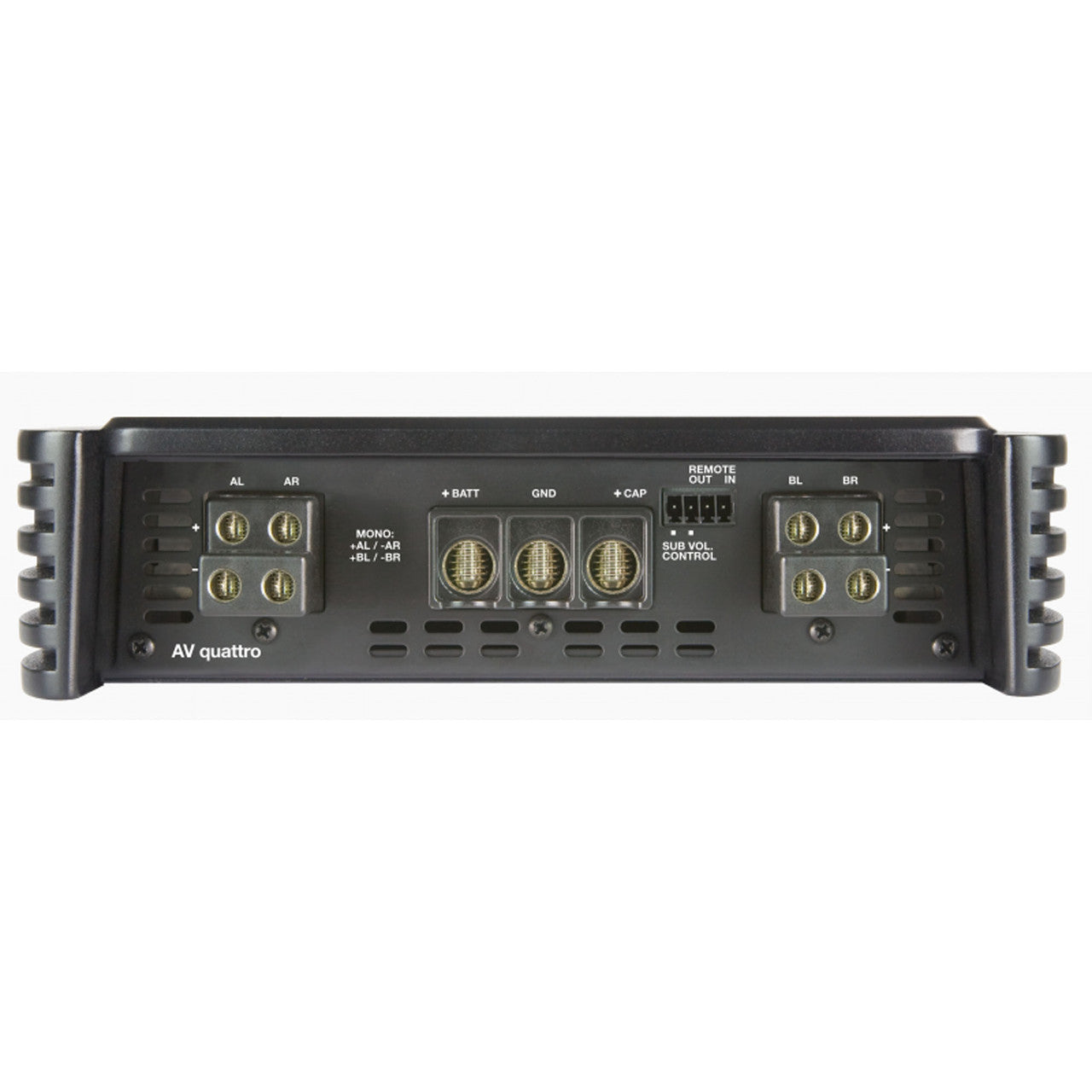

  • Audison AV QUATTRO - View 2
  • Audison AV QUATTRO - View 3

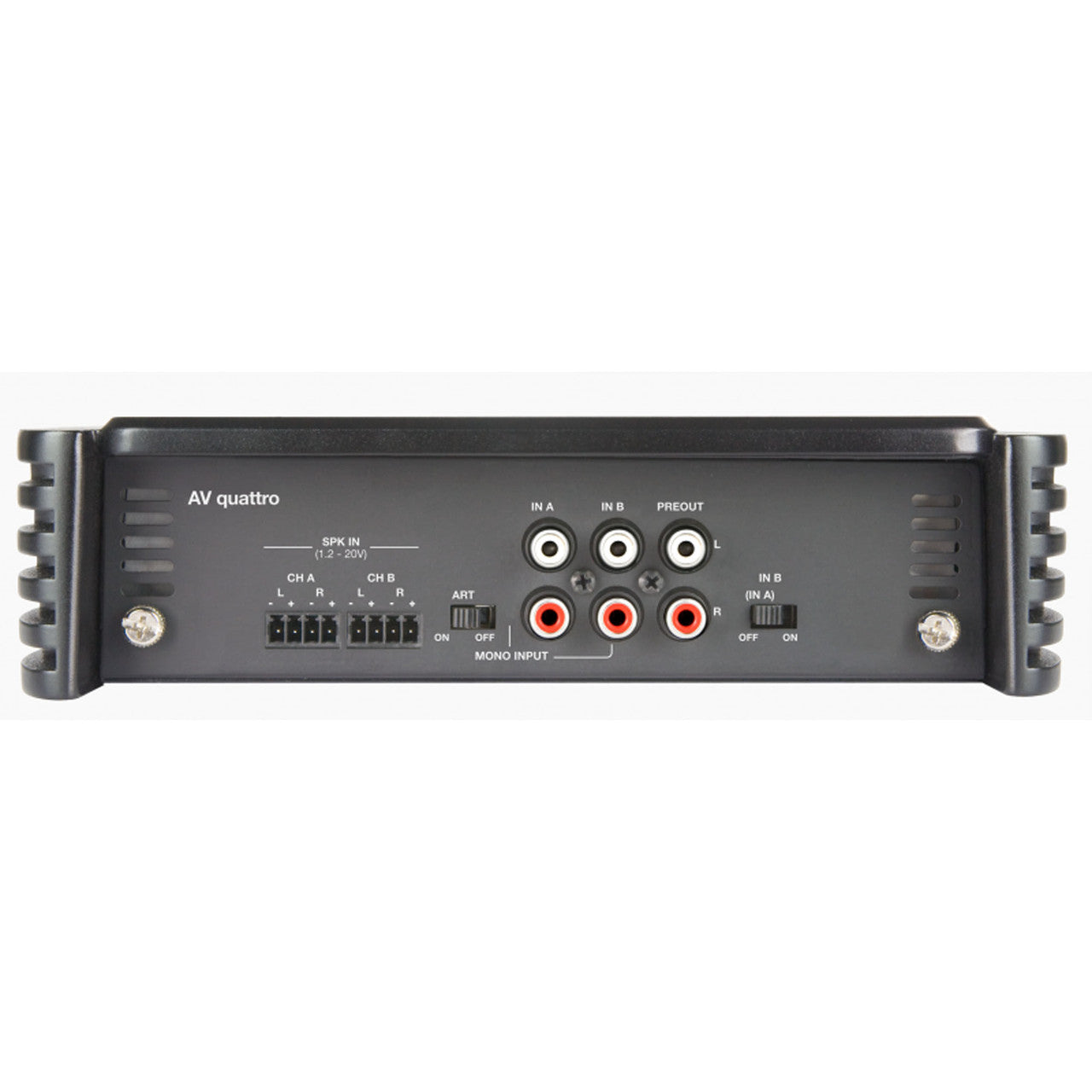

  • Audison AV QUATTRO - View 4
1 4

Audison AV QUATTRO

Audison AV QUATTRO

Audison - AV QUATTRO

$2,099.99 USD
$2,519.99 USD $2,099.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Audison AV QUATTRO

Experience unmatched acoustic fidelity, pristine audiophile-grade detail, and state-of-the-art Italian design with a premium car audio power amplifier from Audison. Precision-engineered to deliver continuous power distribution with absolute zero background coloration, these amplifiers feature ultra-low distortion parameters and high-current circuitry tailored to reveal every nuance of high-resolution acoustic soundstages.

Product Overview & Core Highlights:

AV quattro - 4 CHANNEL AMPLIFIER 4x200W

AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 1700 W (RMS) power total. It is designed to handle complex configurations as front/rear and multi-channel systems. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source; up to 24 dB/Oct. slope crossovers allow to build front-rear, front-sub or multi-amplified systems while still ensuring a non-filtered output signal to expand the system.

Power Supply -
• Power supply voltage: 11 ÷ 15 VDC
• Idling current: 1.8 A
• Idling current when off: 0.02 mA
• Consumption @ 14.4 VDC (Max Musical Power): 55 A

Amplifier Stage -
• Distortion - THD (1kHz @ 4Ω): 0.04 %
• Bandwidth (-3 dB): 4 ÷ 60k Hz
• S/N ratio (A weighted @ 1V): 100 dBA
• Damping factor (1k Hz @ 4Ω): 100
• Input sensitivity: 0.3 ÷ 5 V RMS
• Input impedance: 15k Ω
• Speaker-In sensitivity: 1.4 ÷ 24 V RMS
• Speaker-In impedance: 5k Ω
• Minimum load impedance: 2Ω

🚨 Critical Performance Specifications:

  • Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
  • Manufacturer Part Number (MPN): AV QUATTRO
  • Product Category Component: Amplifiers
  • Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
  • System Power Metrics: 200 Watts Performance Rating
  • Nominal System Stability Configuration: 4 Ohms Impedance Load
  • Total Package Boxed Shipping Weight: 17.0 lbs
