Audison - AVX 6.5 II Coaxial | 240 W Peak Power | 165 mm (6.5 in.) | 4 ohm
Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.
Product Overview & Core Highlights:
AVX 6.5 II Coaxial | 240 W Peak Power | 165 mm (6.5 in.) | 4 ohm

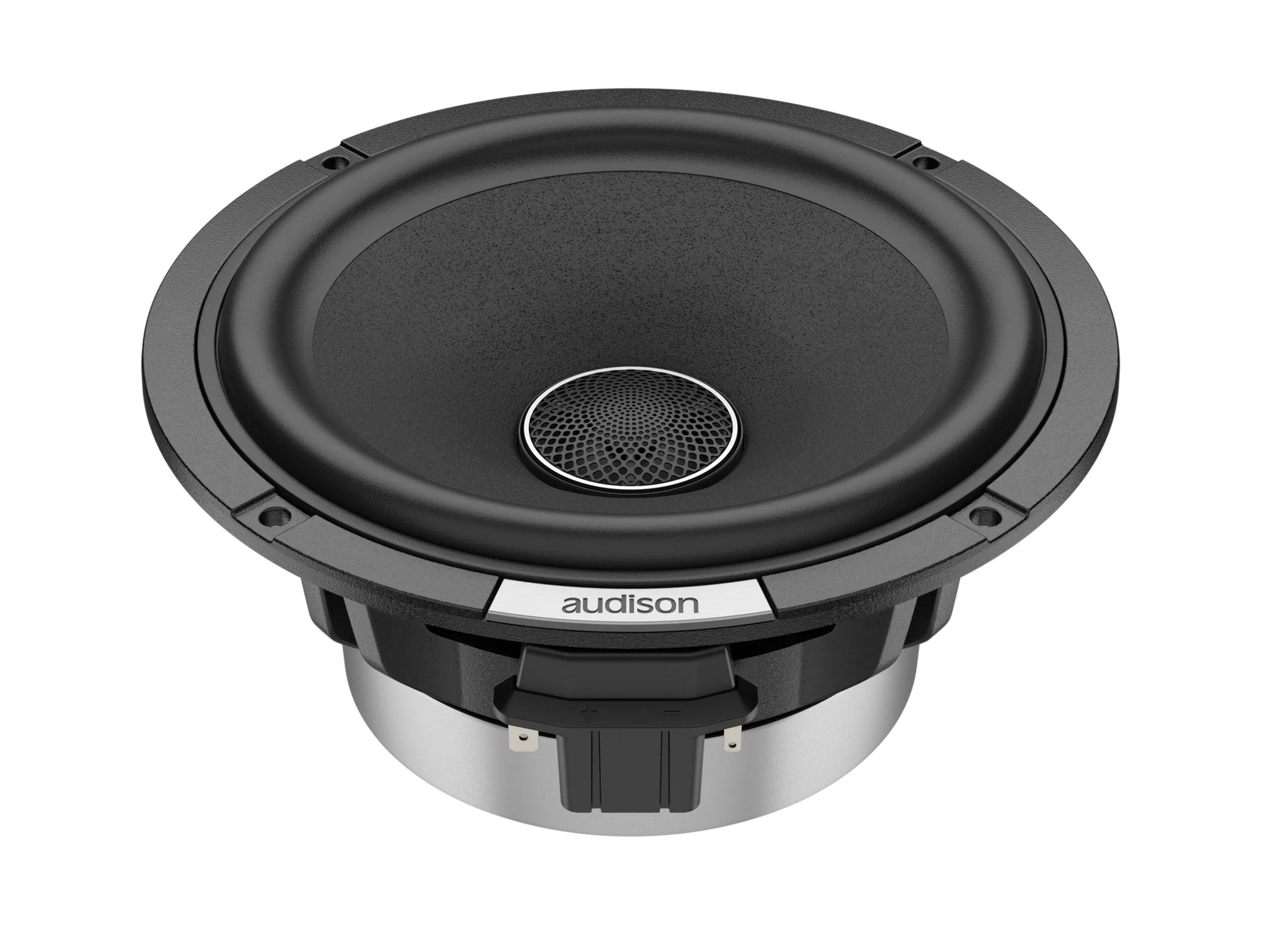

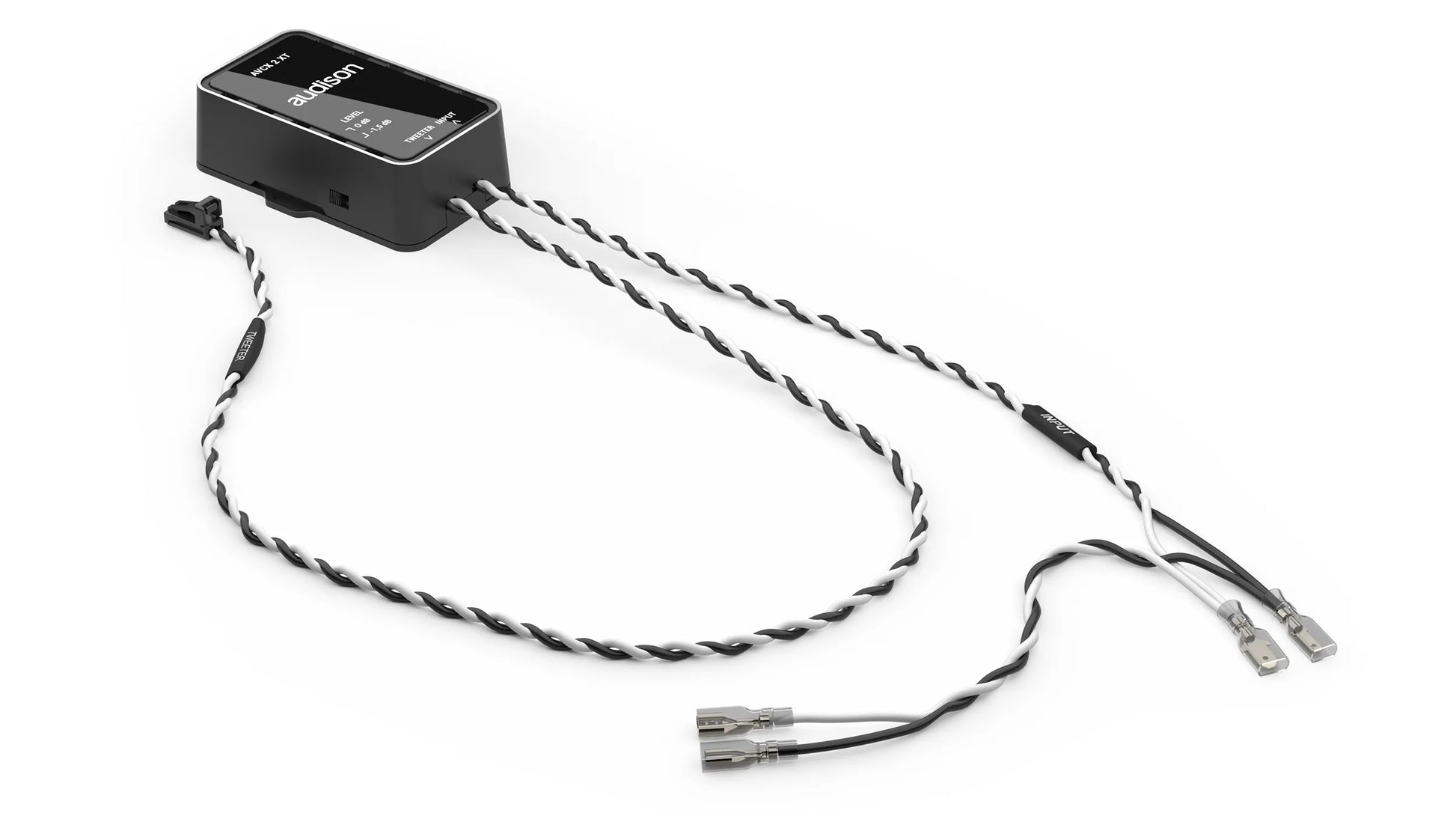

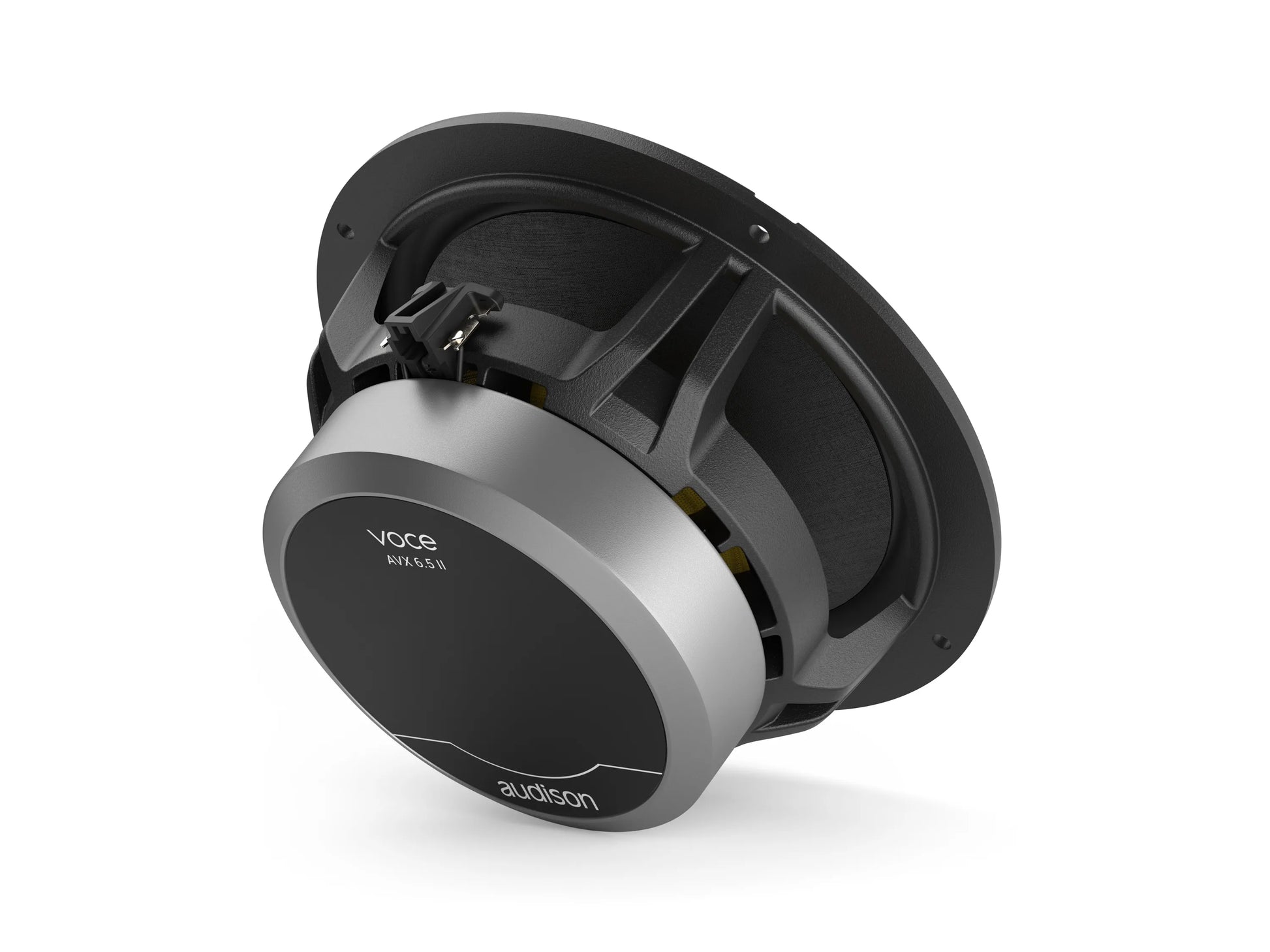

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-style connectors, enhancing integration and performance in any vehicle setup.
TECHNICAL SPECS LF
Woofer Size
165 mm
Impedance
4 Ohm
Minimum Impedance
3.1 Ohm
Power Handling - Peak
240 W
Power Handling - Continuous
120 W
Sensitivity
91.5 dB
Frequency Response
45 ÷ 40000
Voice Coil Diameter
40 mm
Chassis Material
ALUMINIUM
Magnet Material
HIGH DENSITY FLUX FERRITE
Magnet Size
100-45-18
Voice Coil Material
CCAW
Former Material
GLASS FIBER
Cone Material
SEMI-PRESSED PAPER
Surround Material
RUBBER
Flux Density
0.84
Xmax
4.95 mm
Xmech
7.5 mm
Gap Height
6 mm
Voice Coil Winding Height
13 mm
Recommended Tuning
todo
TECHNICAL SPECS HF
Tweeter Size
1 mm
Impedance
4 Ohm
Minimum Impedance
3.7 Ohm
Program Power
20 W
Aes Power Rating
10 W
Sensitivity
98 dB
Frequency Response
1500 - 40000
Voice Coil Diameter
25 mm
Voice Coil Material
CCAW
Former Material
ALUMINIUM
Dome Material
TELOTON FIBRE
Surround Material
TETOLON FIBRE
Magnet Material
NEODYMIUM
ELECTRIC-ACOUSTIC SPECS
Re
2.9 Ohm
Fs
67 Hz
Mms
14.9 g
Cms
0.38
Bl
5.4
Qms
8
Qes
0.62
Qts
0.58
Vas
9.1 l
LE
0.3 mH
Reference Efficiency
90.5
GENERAL
Weight
1.6 kg
DIMENSIONS
Dimension A
165 mm
Dimension B
140 mm
Dimension C
74.2 mm
Dimension D
69.8 mm
FREQUENCY RESPONSE
🚨 Critical Performance Specifications:
Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
