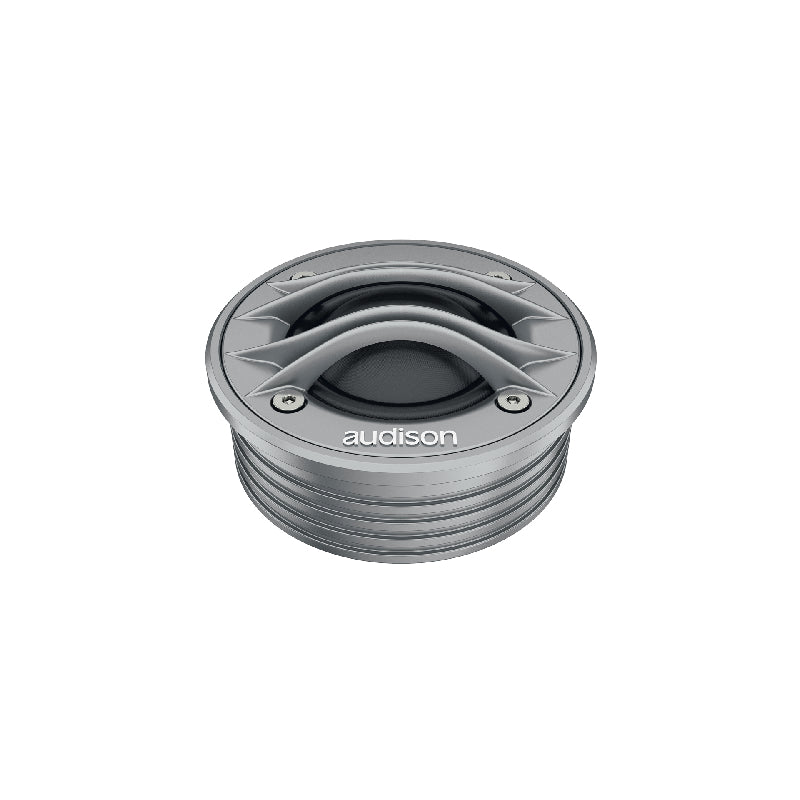

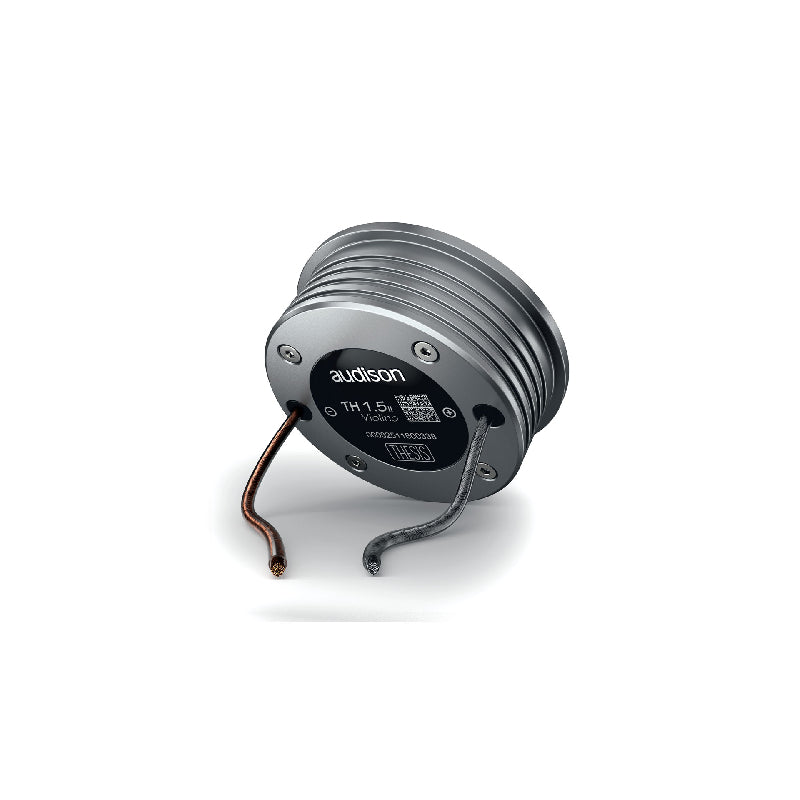

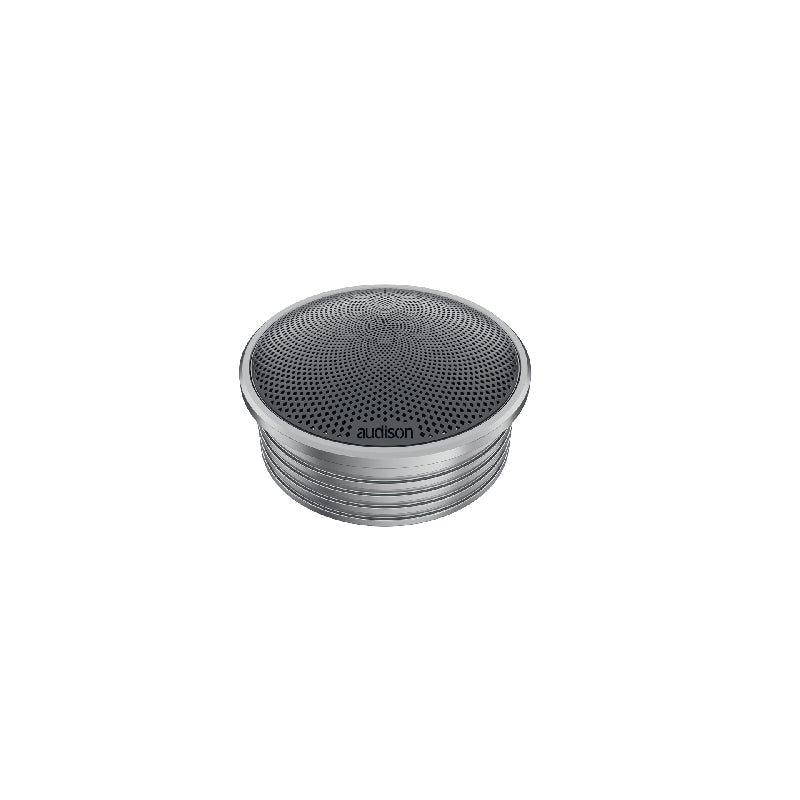

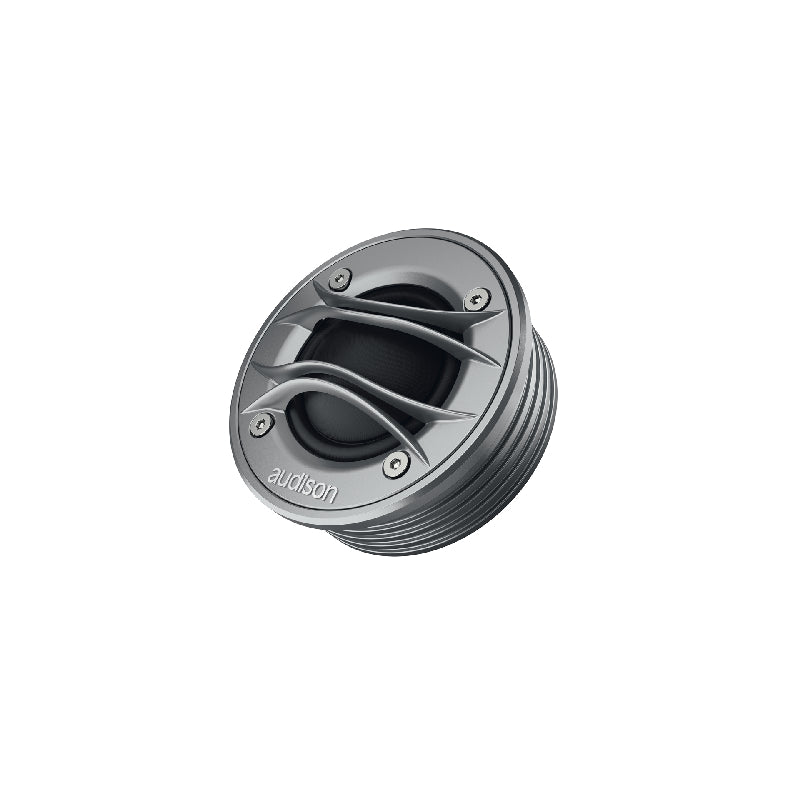

Audison TH 1.5 II VIOLINO THESIS Series 1.5" 6 Ohm Tweeter Set Item #87264 / Con

Audison TH 1.5 II VIOLINO THESIS Series 1.5" 6 Ohm Tweeter Set Item #87264 / Con

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

Features:

• 34 mm CCAW single layer voice coil combining light weight, stability at lower frequencies and total absence of musical transients compression.
• Extremely powerful custom N38 “H-grade” Neodymium magnet providing 1.67 T*m in the magnetic gap for superb dynamic response and very low distortion in the whole frequency range.
• Exclusive air-loading system resulting in a resonance frequency below 800 Hz, for filter set-up starting as low as 1.5 kHz - 12dB/Oct.
• 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and Finite Element Analysis methods for a smooth and extended response.
• Frequency response up to 26 kHz optimized for off-axis installation.

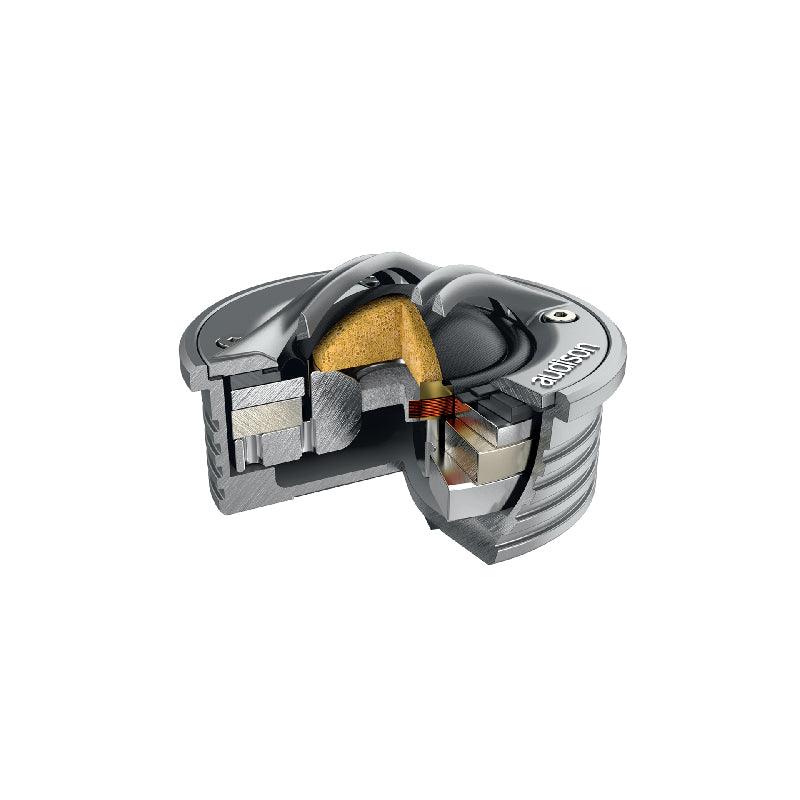

• TH 1.5 II Violino Tuning System featuring two types of electroacoustic load: bottom case or bottom disk according to targets of highest performance as well as flexibility of in-car integration.
• Full solid metal construction structure with each part exclusively designed and produced for the Audison TH 1.5 II.
• FEM (Finite Element Method) optimized faceplate and front spokes for an improved dispersion pattern
• eID technology providing TH 1.5 II traceability starting from the manufacturing stage up to the owner.

Technical Data:

• Comp: Tweeter
• Size: 38 mm (1.5″)
• Power Handling: 200 (Hi-Pass filtered @ 1,8kHz – 12 dB Oct.) W peak
• Impedance: 6 Ohm
• Frequency Response: 800 ÷ 26k Hz
• Sensitivity: 93 dB/Spl
• Magnet: N38 “H-grade” Neodymium
• Dome: Tetolon fibre

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair/Complete Kit (Includes Multi-Driver Network)
• Manufacturer Part Number (MPN): TH 1.5 II VIOLINO
• Product Category Component: Speakers
• Hardware Fitment Sizing Profile: 1.5-Inch Layout Fitment
• Nominal System Stability Configuration: 6 Ohms Impedance Load
• Total Package Boxed Shipping Weight: 1.0 lbs
