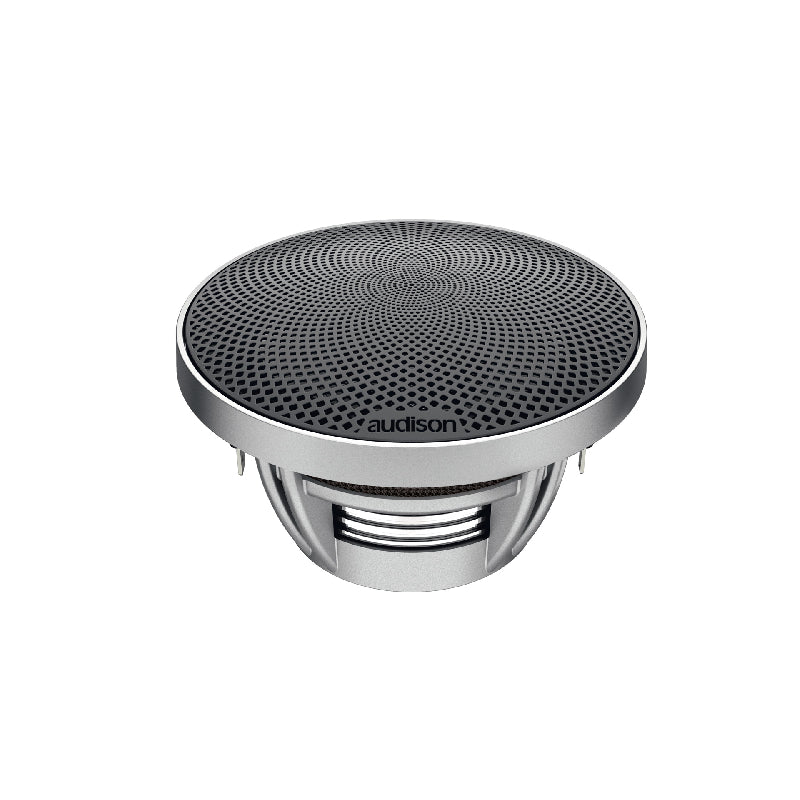

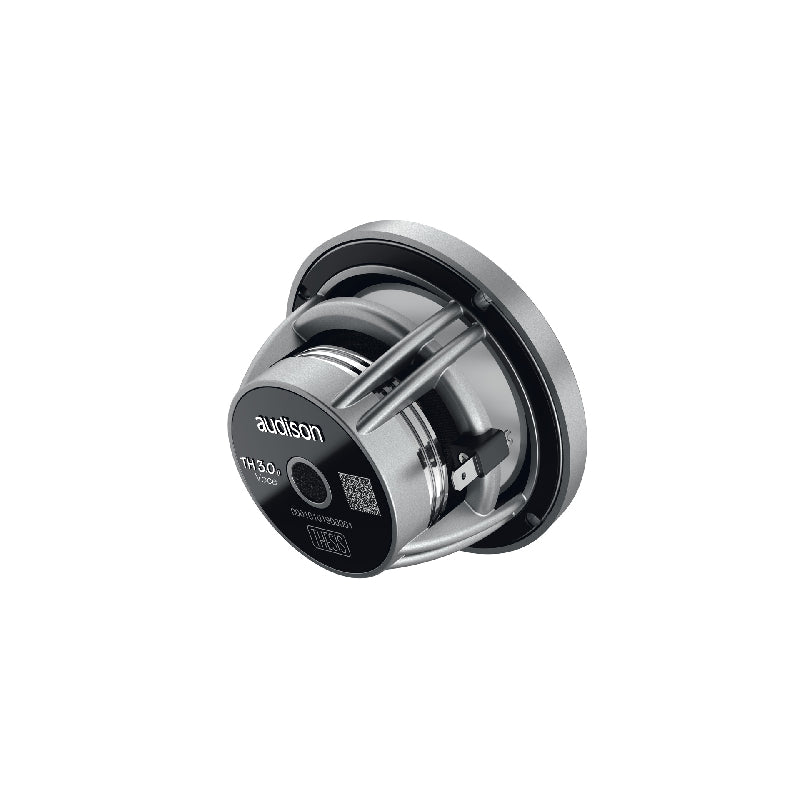

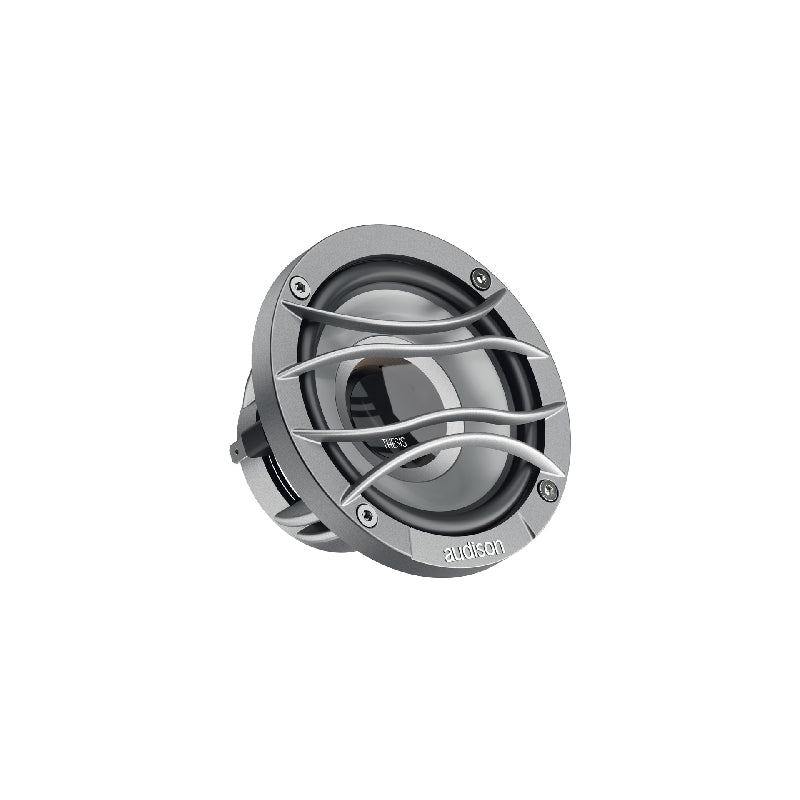

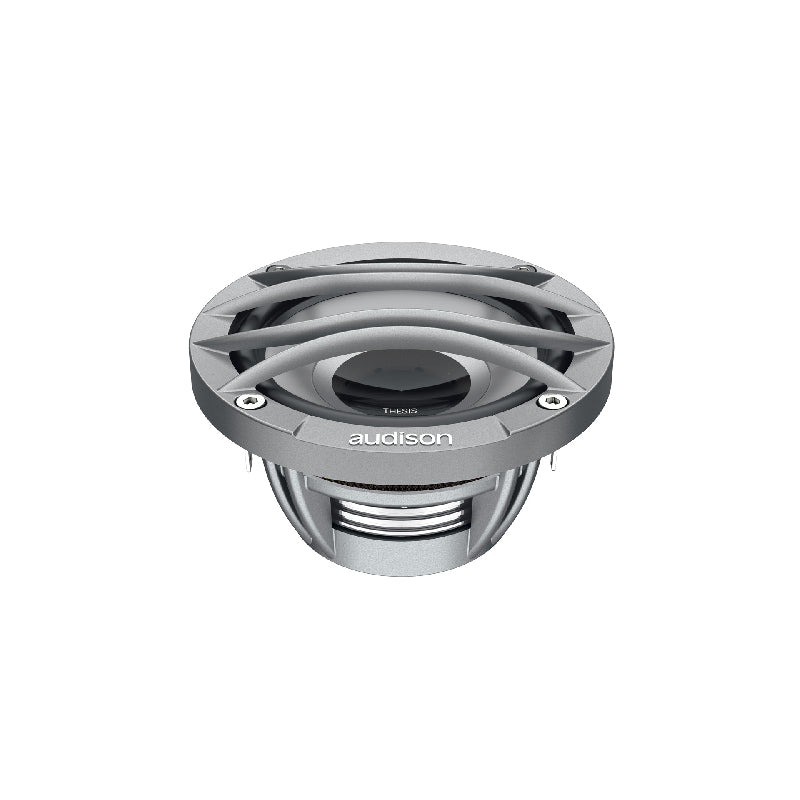

Audison TH 3.0 II VOCE

Audison TH 3.0 II VOCE

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

Features:

• 30,5 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
• Aluminum demodulation ring which linearizes the high excursion intermodulation distortion, canceling any sound colorations
• N38 "H-grade neodymium magnet included in the voice coil to obtain superior control of the mobile crew and superior thermal stability.
• Motor geometry designed using finite element simulation software to optimize efficiency by concentrating the magnetic field in the gap.
• Membrane made of TPX®, a transparent material that reduces frequency response irregularities and provides a view of the inside of the speaker.
• Membrane geometry designed by simulation software to obtain homogeneous directivity
• Optimized cone/surround break-up with extensive simulations to linearize the response at medium frequencies.
• Basket made of a single piece of die-cast aluminum with four pairs of spokes for maximum rigidity without slowing down the air flow.
• Suspension and spider with very high excursion, optimized with simulations of the multi-physical behavior of the speaker.
• eID technology for the traceability of TH 3.0 II Item from production to purchase.

Technical Data:

• Comp: Midrange
• Size: 70 mm (3″)
• Power Handling: 55W Continuous Power, 110W Peak Power
• Impedance: 4 Ω
• Frequency Response: 110 ÷ 5700 Hz
• Sensitivity: 85,6 dB/Spl
• Magnet: N38 “H-grade” Neodymium
• Cone: TPX®

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): TH 3.0 II VOCE
• Product Category Component: Speakers
• Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
• System Power Metrics: 55 Watts Performance Rating
• Nominal System Stability Configuration: 4 Ohms Impedance Load
• Total Package Boxed Shipping Weight: 1.0 lbs
