Audison TH 6.5 II SAX

Audison TH 6.5 II SAX

Unlock spectacular vocal transparency, rapid transient response, and deep linear bass impact with the world-renowned acoustic engineering of Audison. Built from exclusive premium composite membranes—such as signature Tetolon dome tweeters and cotton-fiber pressed paper cones—these world-class components transform your vehicle's cabin into a concert-grade listening environment.

Product Overview & Core Highlights:

Features:

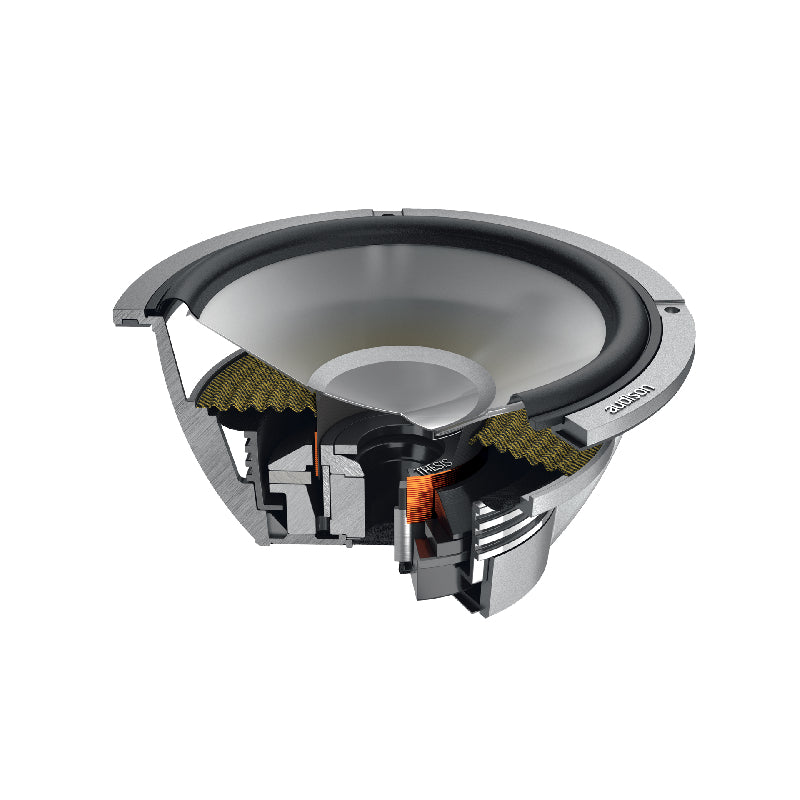

• 50 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
• Low inductance of the mobile voice coil to optimize the emission in medium-high band (2-3 kHz).
• N48 “H-grade” neodymium magnet with superb thermal stability to guarantee an optimal dynamic reserve in every situation.
• Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap.
• Membrane made of TPX®, a transparent material that reduces the frequency response irregularities in the mid-high band, leaving the speaker interior in full view
• Membrane geometry designed using simulation software, to obtain a smooth emission over all the listening angles
• Basket made of a single piece of die-cast aluminum featuring four pairs of spokes to optimize heat transfer, nullify turbulent airflows and ensure maximum structural rigidity.
• Hi-excursion suspension and spider, optimized with simulations of the loudspeaker multi-physical behavior
• eID technology providing TH 6.5 II traceability starting from the manufacturing stage up to the owner.

Technical Data:

• Comp: Woofer
• Size: 165 mm (6.5″)
• Power Handling: 150W Continuous Power, 300W Peak Power
• Impedance: 4 Ω
• Frequency Response: 40 ÷ 4500 Hz
• Sensitivity: 87 dB/Spl
• Magnet: N48 “H-grade” Neodymium
• Dome: TPX®

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): TH 6.5 II SAX
• Product Category Component: Speakers
• Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
• System Power Metrics: 150 Watts Performance Rating
• Nominal System Stability Configuration: 4 Ohms Impedance Load
• Total Package Boxed Shipping Weight: 3.0 lbs
