Audison TH UNO THESIS Series 1500W x 1 RMS @2Ohms Class A Monoblock Amplifier

Audison TH UNO THESIS Series 1500W x 1 RMS @2Ohms Class A Monoblock Amplifier

Experience unmatched acoustic fidelity, pristine audiophile-grade detail, and state-of-the-art Italian design with a premium car audio power amplifier from Audison. Precision-engineered to deliver continuous power distribution with absolute zero background coloration, these amplifiers feature ultra-low distortion parameters and high-current circuitry tailored to reveal every nuance of high-resolution acoustic soundstages.

Product Overview & Core Highlights:

Features:

• Complementary differential circuitry with current mirror.
• Cascode A Class driver with inverted complementary triplet power stages.
• Integrated 24-bit / 192 kHz Hi-End DA converters.
• Compatibility with Audison Full DA HD technology and Hi-Res audio files listening certification.

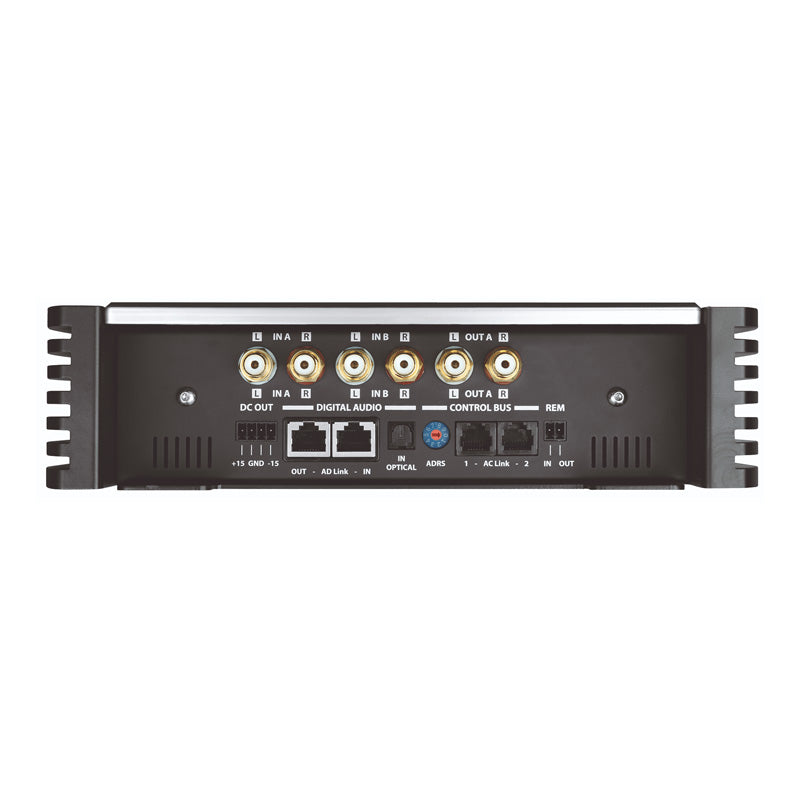

• SPDIF and AD Link optical digital inputs that manage up to 8 digital channels on RJ-45 connector.
• Dual Mono Construction featuring four power supplies in Synchro-PWM configuration.
• Sensitivity control featuring 256 steps resistive switching for a resolution of 120 dB.
• Energy Saving, Hi-Current, Hi-AB Class, A Class presets selectable in real time.
• Digital control via integrated settings panel, DRC and PC Software.
• High quality crossover module supplied.

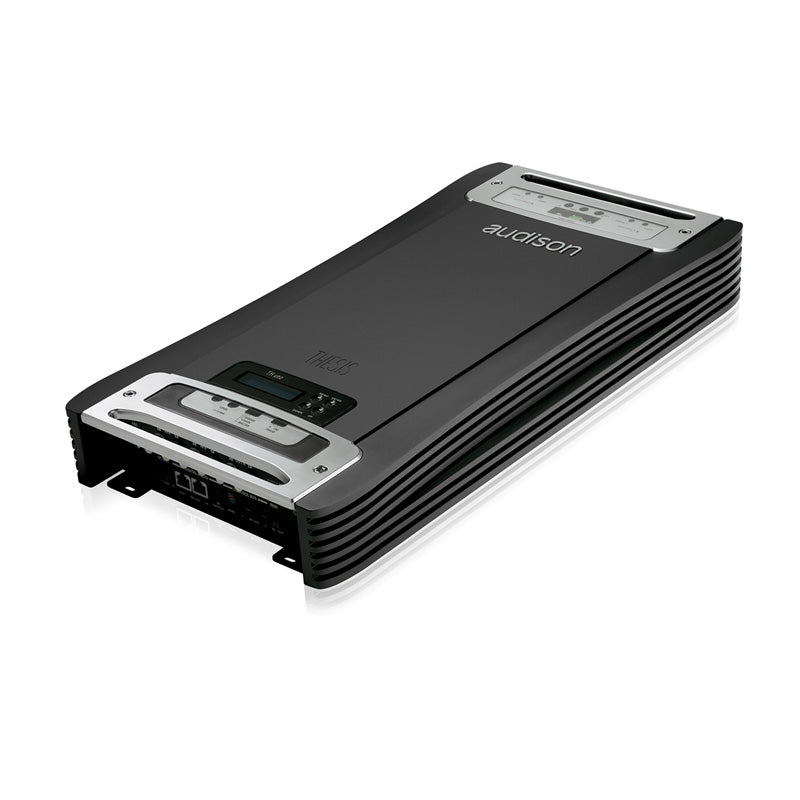

• Chassis extruded from solid aluminium and built using CNC machines.

Specifications:

POWER SUPPLY:

• Voltage: 11 ÷ 15 VDC
• Idling current (@ Dual Power Setting): 2.2 ÷ 8.5 A
• Idling current when off: 0.04 mA
• Consumption @ 14.4 VDC, 1 Ω,
• Max Musical Power: 132 A
• Remote In: 7 ÷ 15 VDC (1 mA)
• Remote Out : 12 VDC (20 mA)
• Fuse (AFS): 150 A

AMPLIFIER STAGE:

• Distortion - THD @ 1 kHz, 4 Ω; 90% Power: 0.01 %
• Bandwidth @ -3 dB, 2 VRMS, 4 Ω: 5 ÷ 40k Hz
• S/N ratio @ A weighted, 1 V, Max Power: 106 dBA
• Damping factor @ 1 kHz, 2 VRMS, 4 Ω: 500
• Pre-In sensitivity (two ranges): 0.3 ÷ 4.8 VRMS
• Pre-In impedance: 15 kΩ

POWER OUTPUT:

• Dual Power – Hi-Current
  • 4 Ohm, 850 W x 1
  • 2 Ohm, 1500 W x 1
  • 1 Ohm, 2300 W x 1
• Dual Power – A Class
  • 4 Ohm, 200 W x 1
• Amp Chain
  • 4 Ohm (2 Amp), 3000 W x 1
  • 2 Ohm (2 Amp), 4500 W x 1

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): TH UNO
• Product Category Component: Amplifiers
• Hardware Fitment Sizing Profile: 8-Inch Layout Fitment
• System Power Metrics: 1500 Watts Performance Rating
• Nominal System Stability Configuration: 2 Ohms Impedance Load
• Total Package Boxed Shipping Weight: 8.0 lbs
