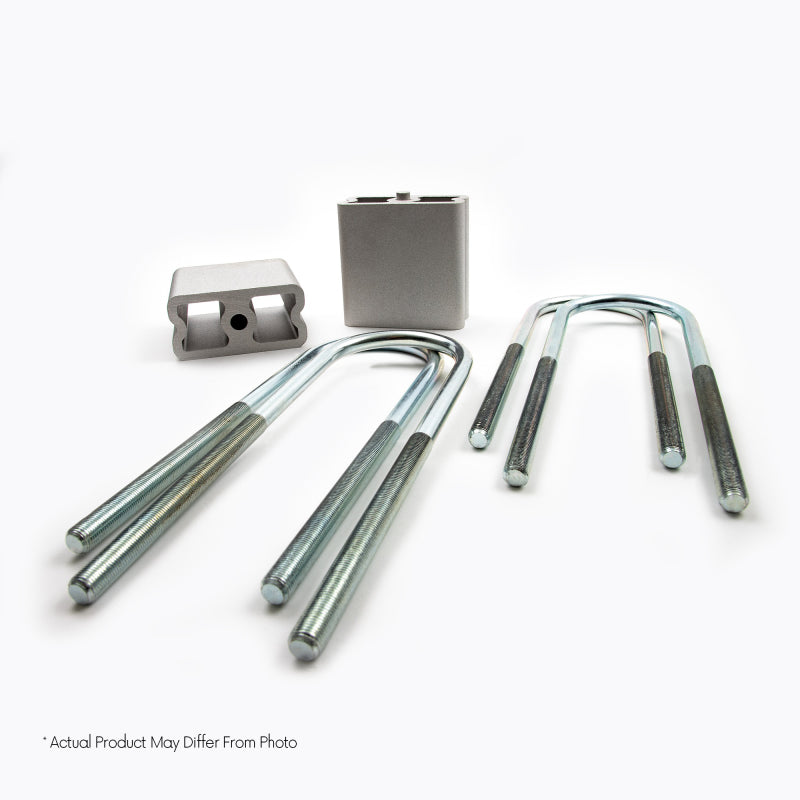

Belltech 6203 4-Inch Lowering Block Kit with 2-Degree Taper

Belltech Lowering Blocks provide an inexpensive, easy to install way to lower your Mini Truck by increasing the distance between the leaf spring and the axle, effectively lowering the vehicle. Belltech lowering block kits are manufactured of high-quality extruded aluminum and come complete with blocks, U-bolts, Nyloc nuts and washers. The extruded aluminum process yields higher strength ratings when compared to cast or steel lowering blocks (or other methods of manufacturing). Lowering blocks are designed to lower the rear of your vehicle in 1,2, 3- or 4-inch increments. Also available with built in 2-degree taper for drive line angle correction. Belltech universal extruded aluminum lowering blocks are available in various heights. Includes installation instructions, grade 8 U-bolts and nuts. Fits 2.5" or 3" wide leaf's and up to 3" axle tubes. Ships in 1 box Univesal Fitment 4 in. Lowering Block kit w/ 2 taper, U-BOLT 1/2 in.-20 X 3 in. X 11 in.

• Fits most mini/mid-size trucks w/ 3" axle tube
• U-bolts and grade 8 hardware included
• Extrude alluminum construction
• Extrude aluminum construction
• Safe/economical solution
• 4' drop block kit

Belltech 6203 lowering blocks provide a straightforward, economical way to lower the rear of a mini or mid-size truck equipped with leaf-spring suspension. By increasing the distance between the leaf spring and axle, the kit lowers the vehicle while helping maintain a clean, professional installation. The built-in 2-degree taper is designed to assist with driveline angle correction after lowering.

Manufactured from high-strength extruded aluminum, Belltech lowering blocks offer dependable performance compared with cast or conventional steel alternatives. This universal kit is designed for vehicles with 2.5-inch or 3-inch-wide leaf springs and axle tubes up to 3 inches. Installation hardware includes grade 8 U-bolts, nyloc nuts, and washers, while included instructions help guide the installation process. Professional installation is recommended to verify axle alignment, driveline angles, and proper clearance.

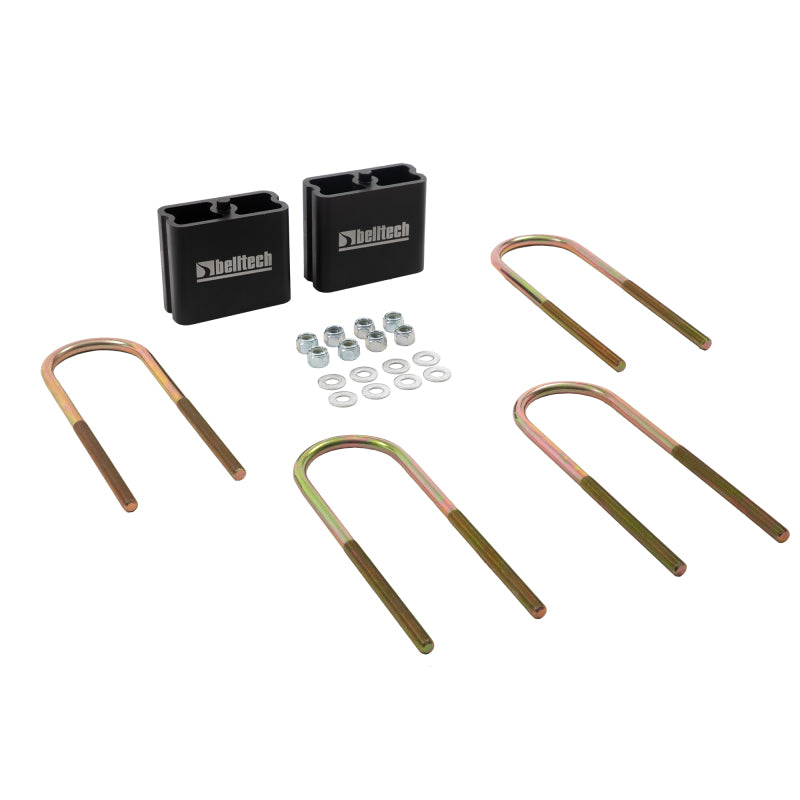

What's Included: Two 4-inch lowering blocks, grade 8 U-bolts, nyloc nuts, washers, and installation instructions. The kit ships in one box and is intended for rear suspension applications. Fitment should be confirmed based on leaf-spring width, axle-tube size, U-bolt requirements, and the specific vehicle configuration before installation.

Features:

• 4-inch rear lowering: Lowers the rear of compatible mini and mid-size trucks using leaf-spring suspension.
• 2-degree tapered blocks: Helps correct driveline angles created by rear suspension lowering.
• Extruded aluminum construction: Provides a strong, lightweight alternative to cast or conventional steel lowering blocks.
• Complete installation hardware: Includes grade 8 U-bolts, nyloc nuts, washers, and installation instructions.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
