Belltech Street Performance Lowering Kit bel1060SP for 2019-2024 Ram 1500 2WD/4WD, 2-Inch Front and 3-4-Inch Rear

Lower your RAM 1500 2WD / 4WD right the first time. Belltech Street Performance complete lowering kits include all the parts, pieces and shock absorbers you need to achieve not only the look you WANT, but the ride quality, performance & safety you NEED. Belltech engineers have reviewed the most popular setups for each RAM 1500 2WD / 4WD in our application range and developed the Belltech Complete Kit Line to simplify your purchase. These complete lowering kits are your all in one box solution. Made up of a variety of combinations of our individual lowering components as well as all the grade 8 installation hardware and alignment pieces necessary to achieve the advertised lowering amount, choosing your kit has never been simpler. Made up of a variety of combinations of our individual lowering components as well as all the installation and alignment pieces necessary to achieve the listed lowering, choosing your kit has never been simpler. Ships in 3 boxes 2019-2024 RAM 1500 2WD/4WD 2" Front / 3-4" Rear

• Large bodied 2.2" (55mm) preset rear Street Performance shocks
• Engineered to exemplify ride quality and performance
• Preserves OE ride quality and suspension geometry
• Customizable rear lowering options of -3" or -4"
• 35mm independent rebound and compression valves
• Progressive rate polymer open-cell bump stop
• Steel, powder coated, spring spacers
• Precise -2" front lowering

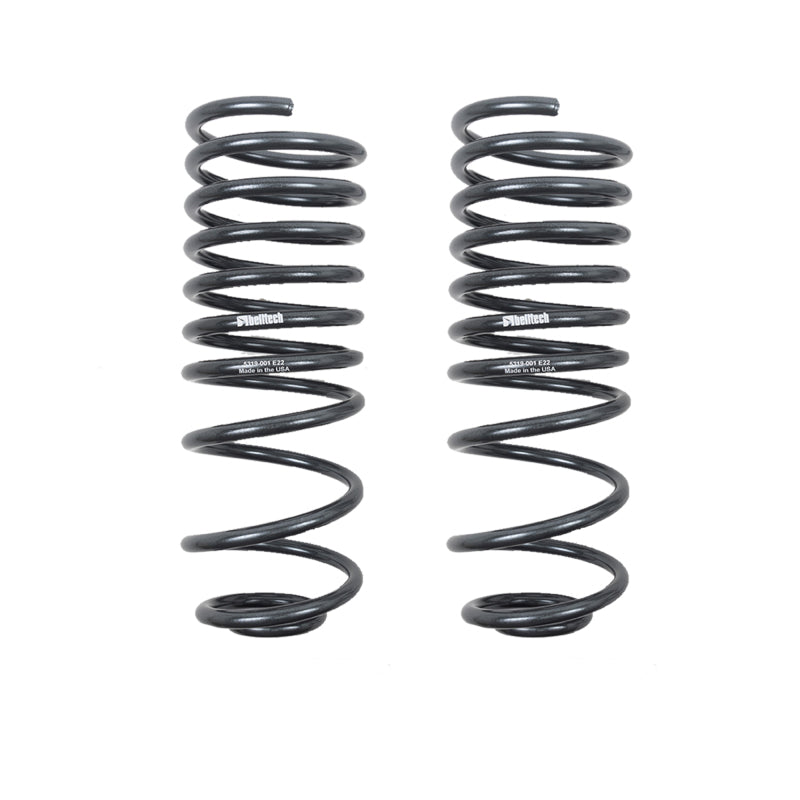

• Cold-formed steel springs
• Lowers center of gravity

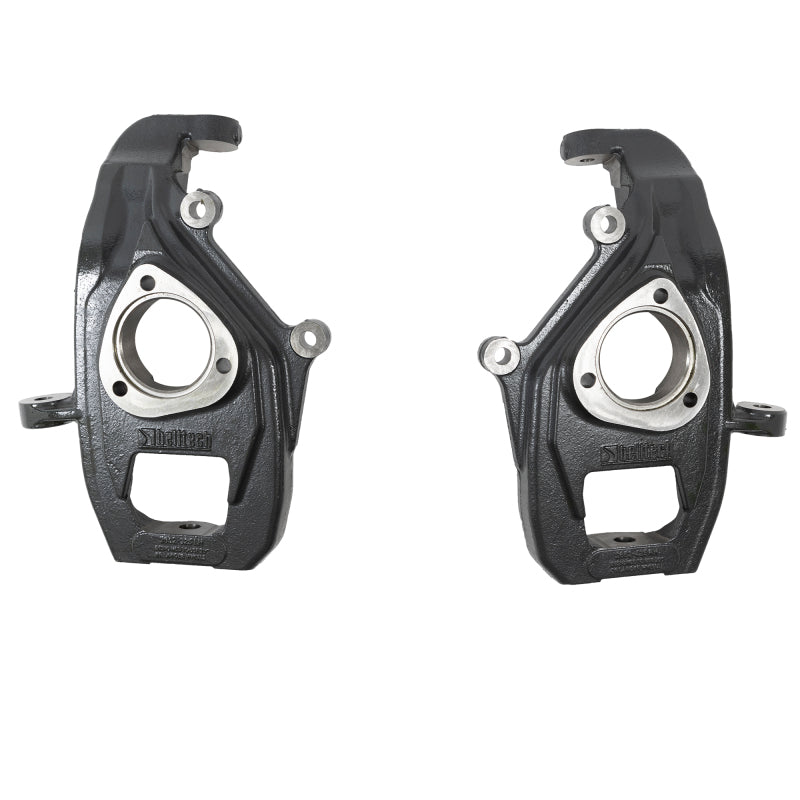

• Robust drop spindles
• Easy to install

Lower your 2019-2024 Ram 1500 2WD or 4WD with the Belltech Street Performance Complete Lowering Kit, part number bel1060SP. This all-in-one suspension package is engineered to provide a precise 2-inch front drop with customizable 3- or 4-inch rear lowering options. By lowering the truck’s center of gravity, the kit delivers a more confident stance while maintaining balanced handling, ride quality, and suspension geometry.

Belltech combines robust drop spindles, cold-formed steel front springs, powder-coated steel spring spacers, progressive-rate polymer bump stops, and large-bodied 2.2-inch preset rear Street Performance shocks. The shocks use independent 35mm rebound and compression valves to help control suspension movement and support responsive performance without sacrificing everyday drivability. The components are engineered to preserve OE-like ride characteristics while providing the lowered appearance and performance expected from a professionally designed suspension system.

The Belltech bel1060SP kit includes the lowering components, installation hardware, and alignment pieces needed to achieve the advertised drop. It is designed for straightforward installation and ships in three boxes. Fitment includes 2019, 2020, 2021, and 2022 Ram 1500 applications, with coverage extending through 2024 where applicable. Verify cab, drivetrain, suspension, and application details before installation.

Key Product Specifications & Technical Data

• Brand: Belltech
• Part Number: bel1060SP
• Vehicle Application: 2019-2024 Ram 1500
• Drivetrain Fitment: 2WD and 4WD
• Front Lowering: 2 inches
• Rear Lowering: Selectable 3 or 4 inches

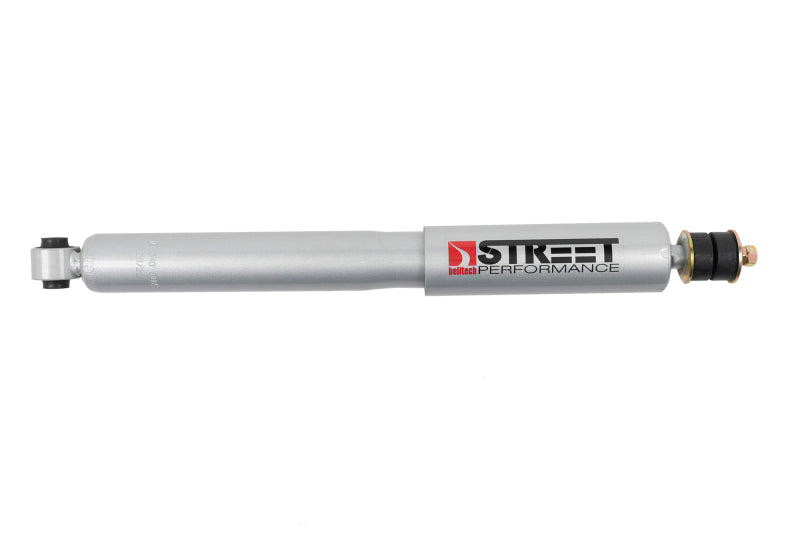

• Rear Shock Design: 2.2-inch Street Performance shocks with 35mm independent rebound and compression valves
• Construction: Cold-formed steel springs, steel spacers, robust drop spindles, and progressive-rate polymer bump stops

What's Included

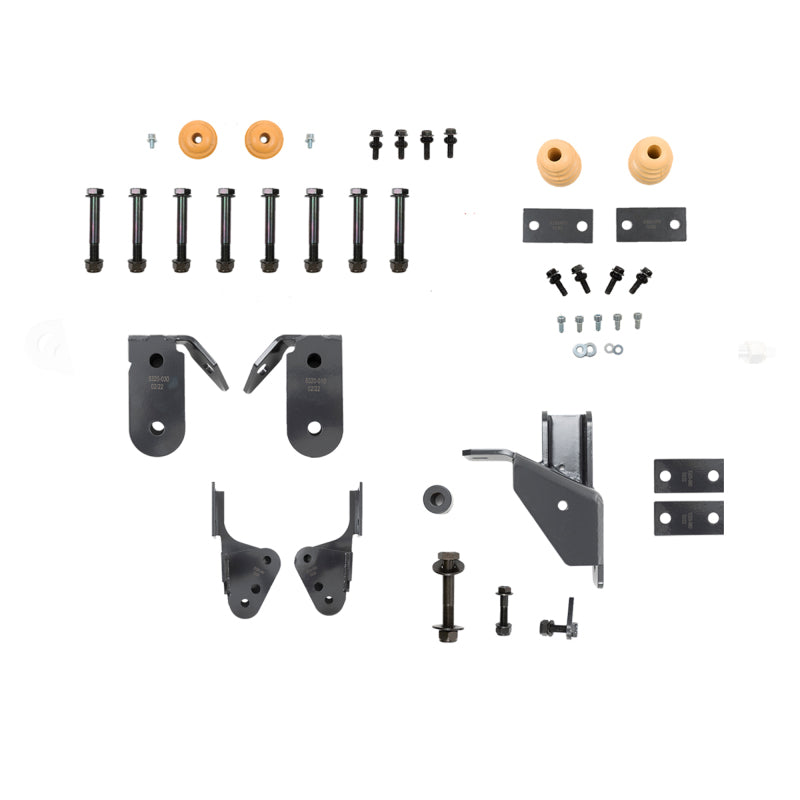

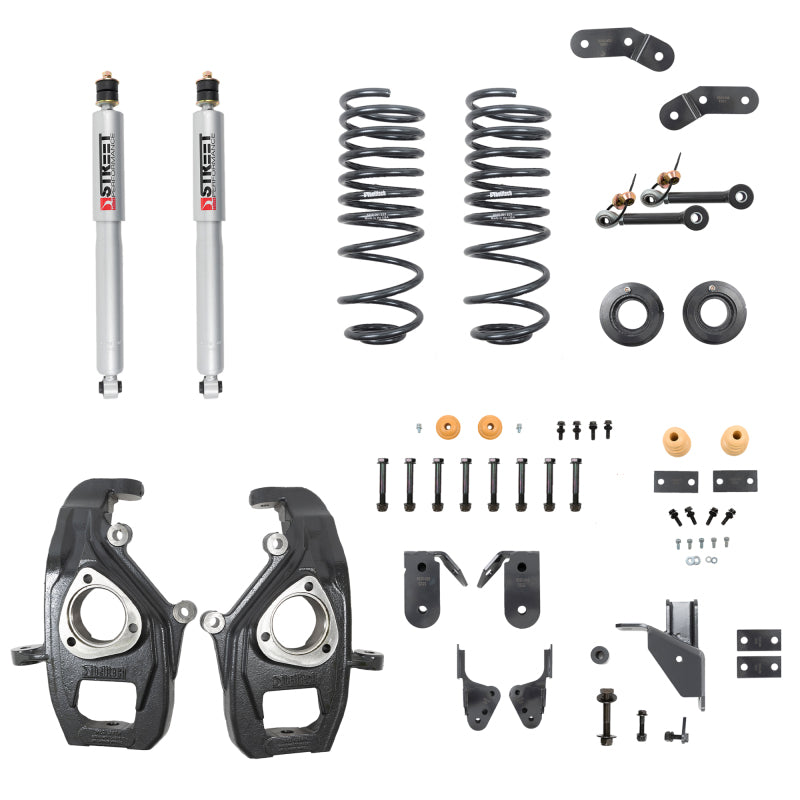

Complete front and rear lowering components, Street Performance rear shock absorbers, installation hardware, alignment components, and all parts required for the advertised lowering configuration. The kit ships in three boxes.

Features:

• Complete all-in-one lowering solution with suspension components, shocks, hardware, and alignment pieces included
• Provides a precise 2-inch front drop with customizable 3- or 4-inch rear lowering options
• Large-bodied 2.2-inch preset rear Street Performance shocks with independent 35mm rebound and compression valves
• Engineered to preserve OE-like ride quality and suspension geometry while lowering the truck’s center of gravity
• Cold-formed steel front springs provide durable, consistent lowering performance
• Robust drop spindles support precise front-end lowering and straightforward installation
• Progressive-rate polymer open-cell bump stops help control suspension travel
• Powder-coated steel spring spacers provide durable support for the selected rear lowering configuration

Fitments:
2019 Ram 1500 Big Horn
2019 Ram 1500 HFE
2019 Ram 1500 Laramie
2019 Ram 1500 Laramie Longhorn
2019 Ram 1500 Limited
2019 Ram 1500 Lone Star
2019 Ram 1500 Rebel
2019 Ram 1500 Tradesman
2020 Ram 1500 Big Horn
2020 Ram 1500 HFE
2020 Ram 1500 Laramie
2020 Ram 1500 Laramie Longhorn
2020 Ram 1500 Limited
2020 Ram 1500 Lone Star
2020 Ram 1500 Rebel
2020 Ram 1500 Special Service
2020 Ram 1500 Tradesman
2021 Ram 1500 Big Horn
2021 Ram 1500 HFE
2021 Ram 1500 Laramie
2021 Ram 1500 Laramie Longhorn
2021 Ram 1500 Limited
2021 Ram 1500 Limited Longhorn
2021 Ram 1500 Lone Star
2021 Ram 1500 Longhorn
2021 Ram 1500 Rebel
2021 Ram 1500 Special Service
2021 Ram 1500 Tradesman
2022 Ram 1500 Big Horn
2022 Ram 1500 HFE
2022 Ram 1500 Laramie
2022 Ram 1500 Limited
2022 Ram 1500 Limited Longhorn
2022 Ram 1500 Lone Star
2022 Ram 1500 Rebel
2022 Ram 1500 Special Service
2022 Ram 1500 Tradesman
2023 Ram 1500 Big Horn
2023 Ram 1500 HFE
2023 Ram 1500 Laramie
2023 Ram 1500 Limited
2023 Ram 1500 Limited Longhorn
2023 Ram 1500 Lone Star
2023 Ram 1500 Rebel
2023 Ram 1500 Tradesman
2024 Ram 1500 Big Horn
2024 Ram 1500 HFE
2024 Ram 1500 Laramie
2024 Ram 1500 Limited
2024 Ram 1500 Limited Longhorn
2024 Ram 1500 Lone Star
2024 Ram 1500 Rebel
2024 Ram 1500 Tradesman
2025 Ram 1500 Big Horn
2025 Ram 1500 Laramie
2025 Ram 1500 Lone Star
2025 Ram 1500 Tradesman
2025 Ram 1500 Tradesman HFE
2026 Ram 1500 Big Horn
2026 Ram 1500 Express
2026 Ram 1500 Laramie
2026 Ram 1500 Lone Star
2026 Ram 1500 Tradesman

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Number Of Boxes: 3
Regular Stock: t
Units Per Sku: 1
