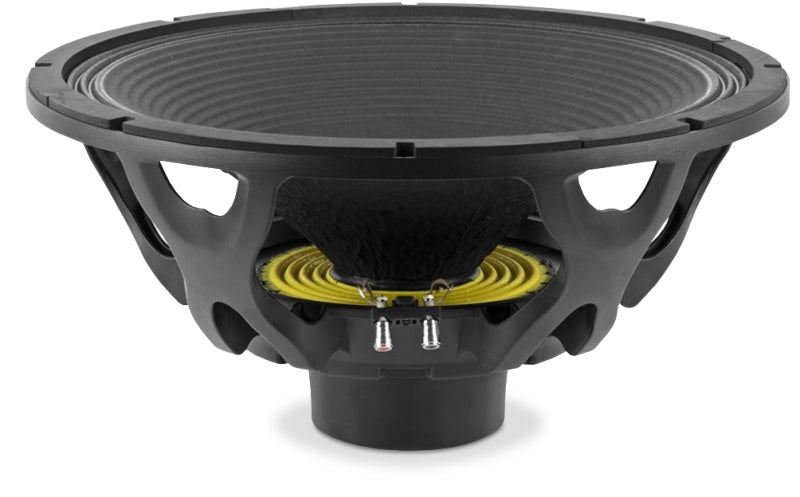

Beyma Loudspeaker 21LEX1600Nd

Beyma Loudspeaker 21LEX1600Nd

Command theatrical sound pressure levels and experience spectacular vocal accuracy with world-renowned professional transducer loudspeaker components from Beyma Pro Audio. Crafted in Spain for audiophiles and high-end automotive configurations, these premium drivers merge high-intensity neodymium or ferrite motor structures with weather-treated cone membranes to project immaculate definition under heavy acoustic play.

Product Overview & Core Highlights:

The Beyma Loudspeaker 21LEX1600Nd is a professional audio component engineered for high-output.

Key Features

• Extended frequency response.
• High-sensitivity design.
• Durable chassis.
• Professional longevity.

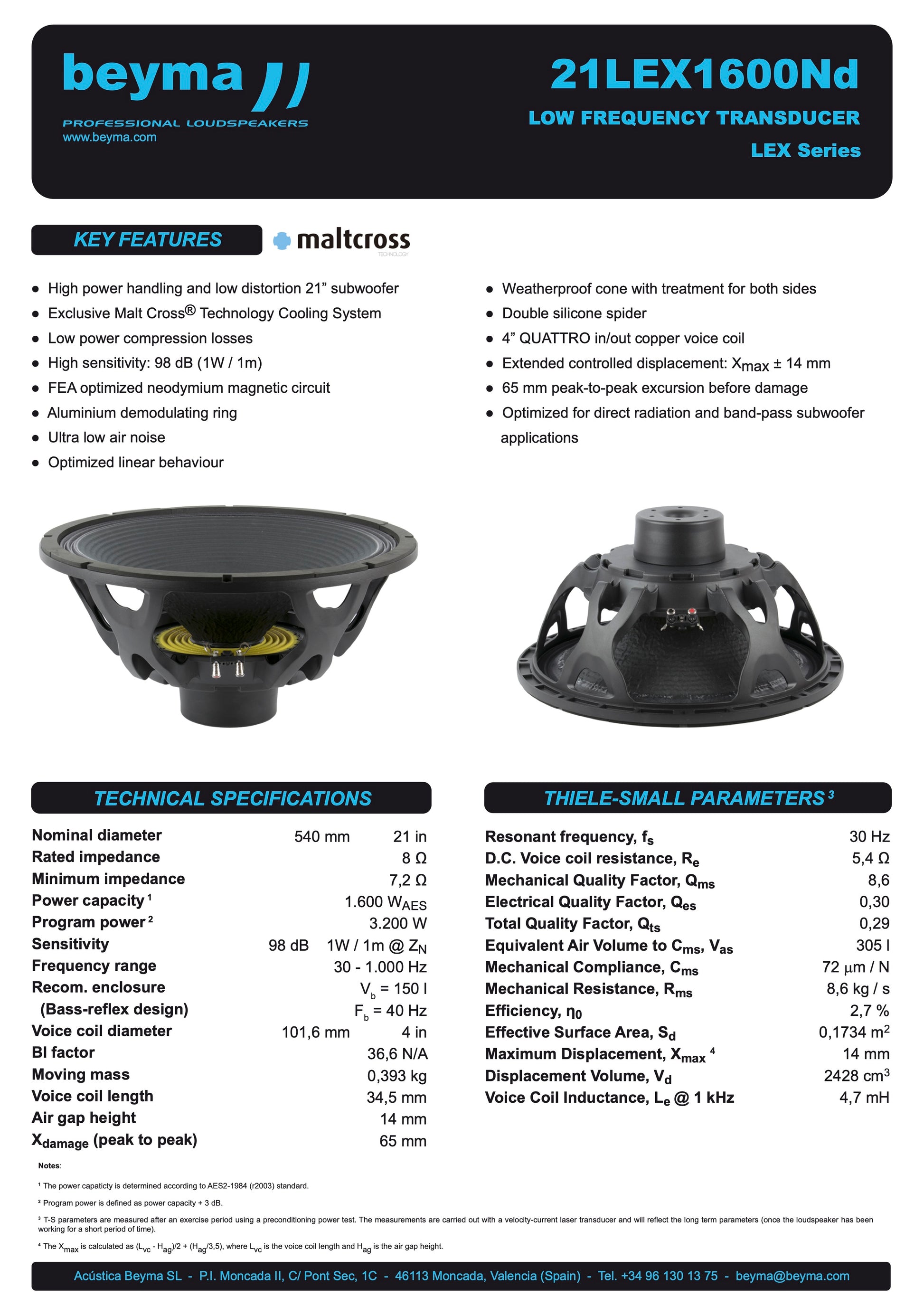

Technical Specifications

• TECHNICAL SPECIFICATIONS

  Power capacity

  1600 W AES

  Nominal diameter

  540 mm 21 in

  Nominal impedance

  8 Ohm

  Minimum impedance

  7.2 ohm

  Program power

  3200 W

  Sensitivity

  98 dB 1 W @ 1 m @ ZN

  Frequency range

  30-1000 Hz

  Recommended enclosure volume

  150 l

  Voice coil diameter

  101.6 mm 4 in

  BL factor

  36.6 N/A

  Moving mass

  0.393 kg

  Winding length

  34.5 mm

  Air gap height

  14 mm

  Xdamage pp

  65 mm

  PARAMETERS THIELE & SMALL

  Fs

  30 Hz

  Re

  5.4 ohm

  Qms

  8.6


  Qes

  0.30

  Qts

  0.29

  Vas

  305 l

  Cms

  72 µm / N

  Rms

  8.6 kg/s

  Efficiency %

  2.7

  Sd

  0.1734 m²

  Xmax

  14 mm

  Vd

  2428 cm³

  Le @1 kHz

  4.7 mH

  CONSTRUCTION DETAILS

  Depth

  268 mm 10.6 in

  Net weight

  11.8 kg 26.01 lb

  Total weight

  14.3 kg 31.5 lb

  Magnet

  Neodymium

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 High-Performance Chassis Component Unit)
• Manufacturer Part Number (MPN): 21LEX1600Nd
• Product Category Component: Processors & DSPs
• Total Package Boxed Shipping Weight: 3.0 lbs

Sold Each.
