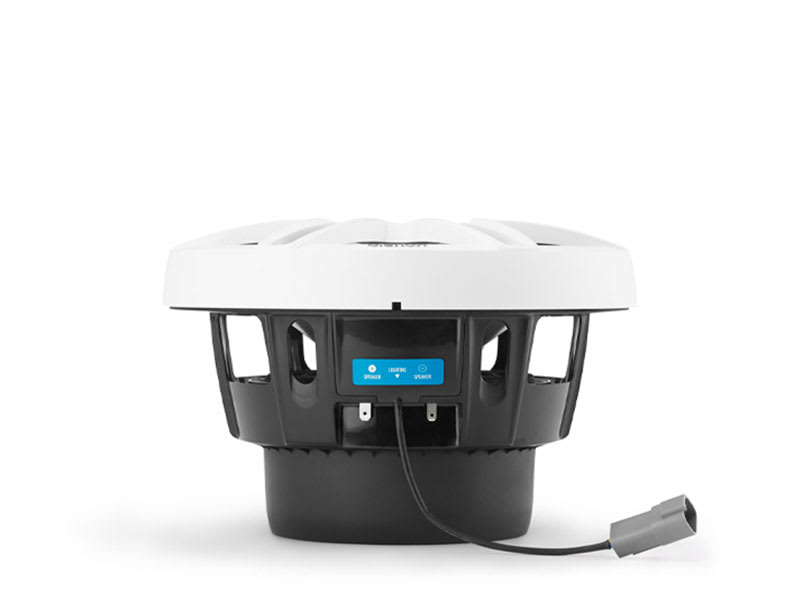

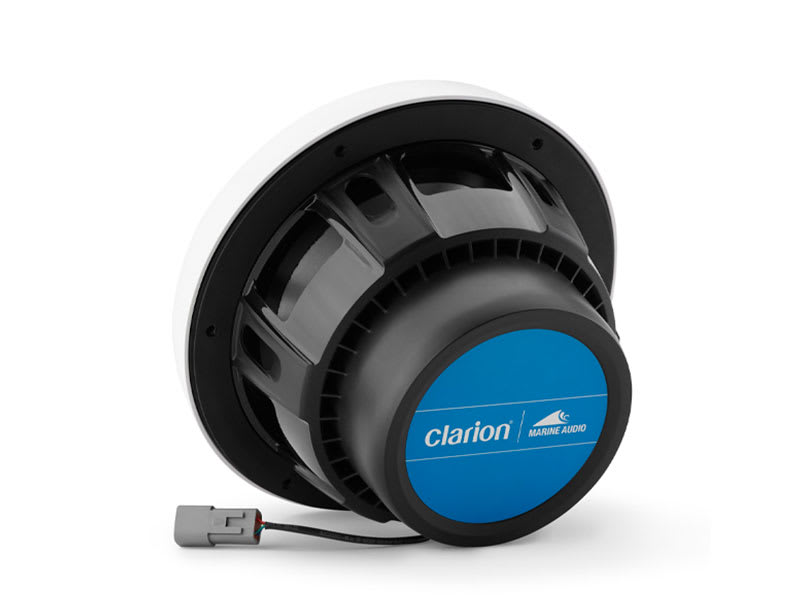

Clarion 010-03051-00 10-inch Infinite Baffle Marine Subwoofer
Clarion 010-03051-00 10-inch Infinite Baffle Marine Subwoofer
Clarion - 010-03051-00
Couldn't load pickup availability
Clarion® CMSP Marine Subwoofer
10" with LED 2 ohm (Sold Separately)
PART NUMBER010-03051-00
MARINE SUBWOOFER
This 10-inch subwoofer features an injection molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.
RGB LED LIGHTING
Enhance your audio entertainment experience with bright and even LED illumination in a wide range of colors.
EXTRAORDINARY PERFORMANCE
A long-excursion, high-power handling design delivers low distortion and excellent low-frequency capability.
SALT AND SUN PROTECTED
Clarion subwoofers meet or exceed ASTM standards for salt-fog exposure as well as UV exposure. They feature marine-grade materials and finishes with corrosion-resistant connections and circuit boards.

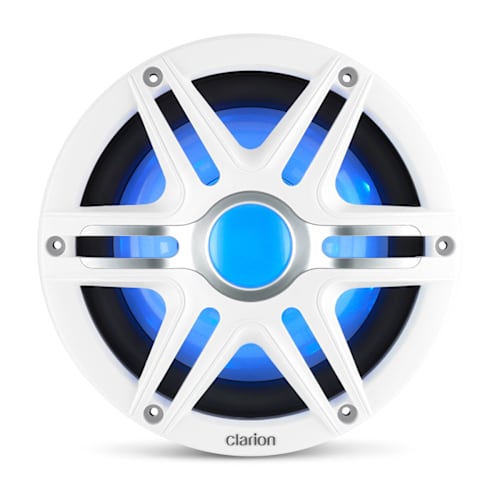

OPTIONAL GRILLE
Complete the look with an optional grille. Choose a white or metallic gray sport grille to match CMSP marine speakers.
General |
|
| Sizes | 10" |
|---|---|
| Color | Black |
| Physical dimensions (Diameter) | 10.57" (269 mm) (without grille) |
| Physical dimensions (Depth) | 5.16" (131mm) |
| Weight |
10.69 lbs (4.85 kg) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 250 W |
| LED lighting | yes - RGB |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 220 mA |
| Cone material | Injection-molded, polypropylene |
Mounting Dimensions |
|
| Mounting depth clearance | 5.16" (131 mm) |
|---|---|
| Mounting hole | 8.75" (222 mm) |
| Bolt hole circle | 9.72" (247 mm) |
Parameters |
|
| Free Air Resonance (FS) | 2 Ω: 44.81 Hz 4 Ω: 47.15 Hz |
|---|---|
| Electrical “Q” (Qes) | 2 Ω: 0.832 4 Ω: 1.005 |
| Mechanical “Q” (Qms) | 2 Ω: 11.410 4 Ω: 11.532 |
| Total “Q” (Qts) | 2 Ω: 0.775 4 Ω: 0.925 |
| Equivalent Compliance (Vas) | 2 Ω: 0.87 cu ft (24.77 L) 4 Ω: 0.88 cu ft (24.93 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 2 Ω: 0.39" (10 mm) 4 Ω: 0.39" (10 mm) |
| Effective piston area (SD) | 2 Ω: 48.67 in² (0.0314 m²) 4 Ω: 48.67 in² (0.0314 m²) |
| DC resistance (RE) | 2 Ω: 2.180 Ω 4 Ω: 4.080 Ω |
