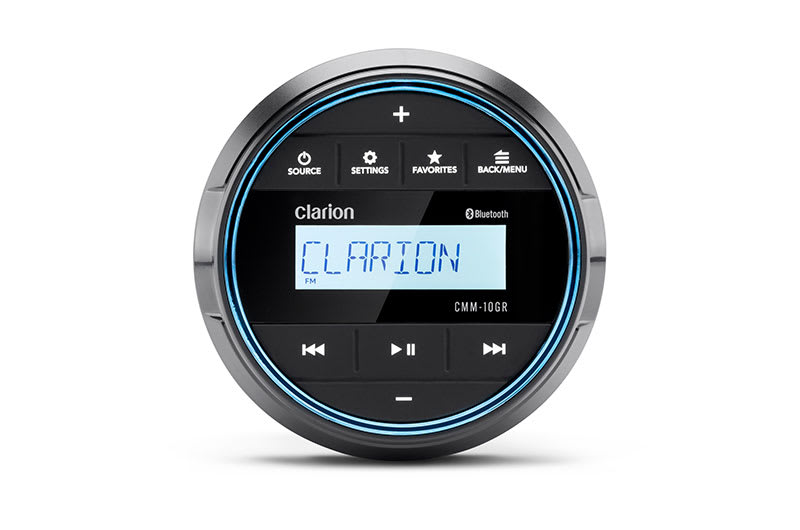

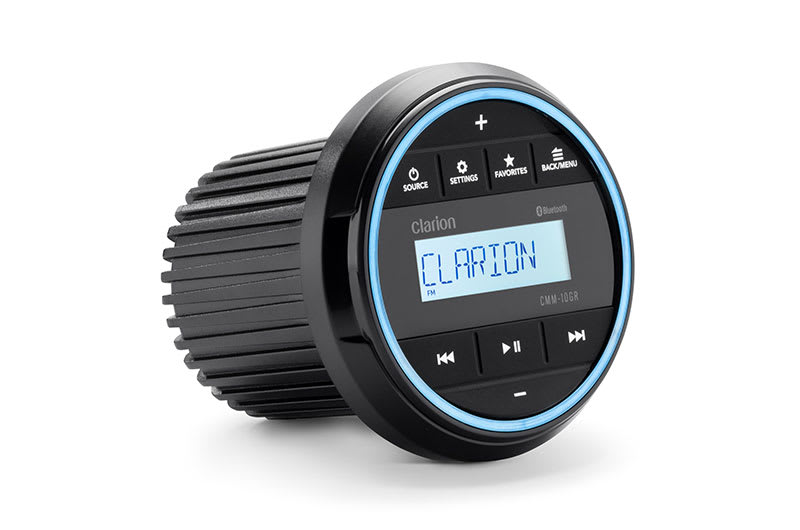

Clarion 010-03219-00 Marine Compact Source unit, 3" Gauge Hole with LED Display
Clarion 010-03219-00 Marine Compact Source unit, 3" Gauge Hole with LED Display
Clarion - 010-03219-00
Couldn't load pickup availability
Clarion® Marine Compact Source Unit
3" Gauge Hole with LCD Display (CMM-10GR)
PART NUMBER010-03219-00
BLUETOOTH STREAMING
Start streaming from your compatible smartphone or any device with BLUETOOTH technology.
CONNECTIVITY OPTIONS
This digital receiver has a front-facing AUX input as well as USB for charging and file playback.
SHAPE YOUR SOUND
Customize your sound with bass and treble controls plus a built-in amp. Or you can select from 4 equalizer presets. You can also adjust sound in different parts of the boat with 2-zone control.
TUNE IN TO RADIO
Play local radio stations with a built-in AM/FM tuner, or get the latest forecast from the weather band.
RUGGED AND READY
This source unit is IP66- rated, so you can move confidently out on the water.
General |
|
| Physical dimensions (Height) | CMM-10: 2.48" (63 mm) CMM-10GR: 4.03" (102 mm) |
|---|---|
| Physical dimensions (Width) | CMM-10: 4.33" (110 mm) CMM-10GR: 4.03" (102 mm) |
| Physical dimensions (Depth) | 3.15" (80 mm) |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -4° F to +140° F (-20° C to +60° C) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
Networking |
|
| Bluetooth® wireless range | Up to 35 ft (11 meters) |
|---|---|
| Wireless frequencies/protocols | BLUETOOTH® |
Audio |
|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 20 W x 4 |
|---|---|
Electrical Features |
|
| Power Input | 10-16 VDC |
|---|---|
Stereo Features |
|
| Display size | CMM-10: 2.09" (53 mm) CMM-10GR: 2.09" (53mm) |
|---|---|
| Display type | monochrome, segmented, TFT LCD backlit |
| Optically bonded display | |
| Built-in amplifier | Class AB (4 Ω) |
| Multi-Zone™ technology | |
| Bluetooth® wireless technology | |
| DAB+ ready | see Additional |
| Multi-language interface | English |
Sources |
|
| Supported sources |
Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Connections |
|
| USB 2.0 ports | 1 USB storage device (1 A charging output) |
|---|---|
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 2 zones (L+R) or Zone 2 as subwoofer |
| Line out (requires external amplification) | 2 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 2 |
Additional |
|
| Additional | DAB+ Ready: CMM-10i: yes |
|---|---|
